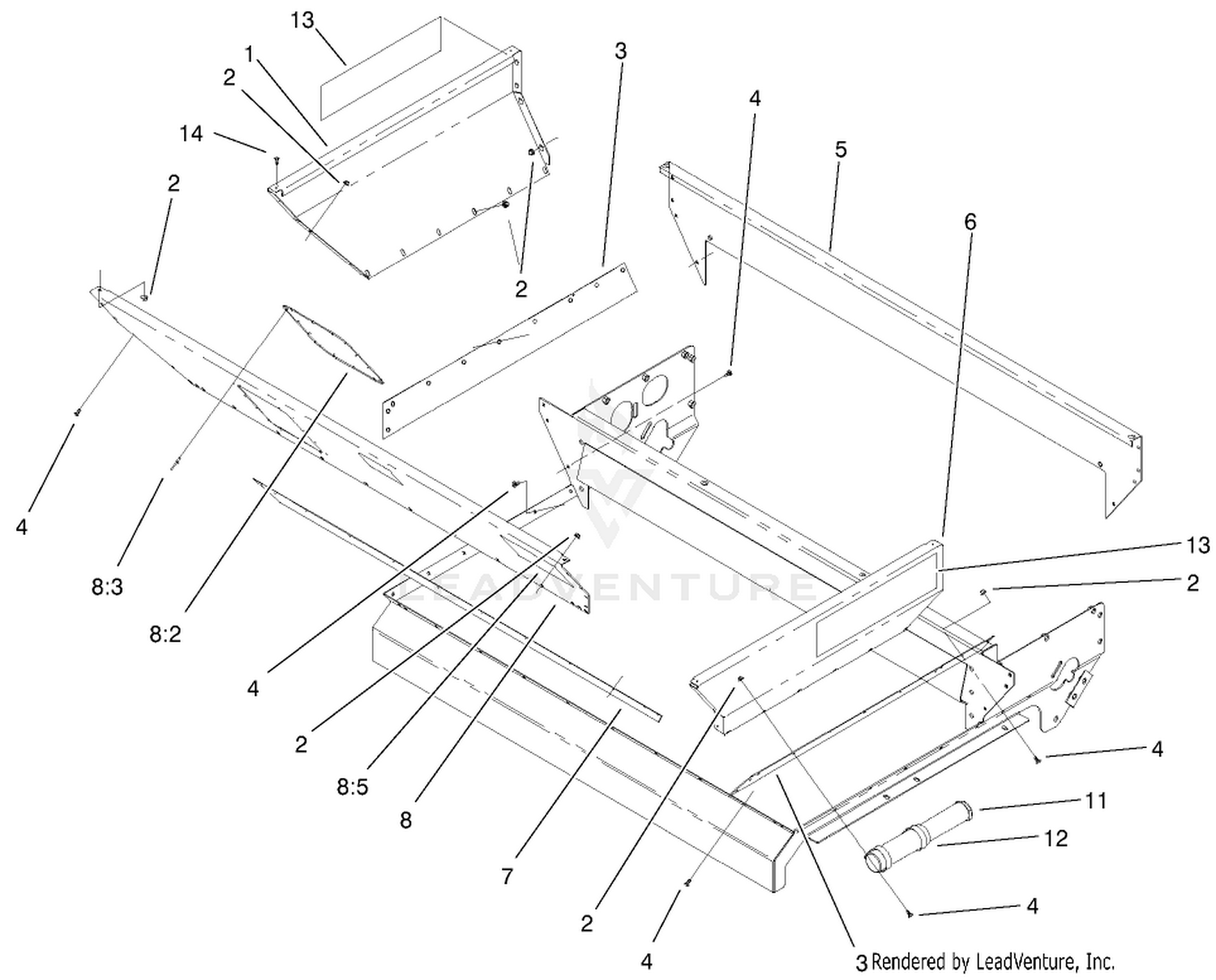

Hopper Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-0123 | PANEL-HOPPER, RH Price: $235.85 |
| 2 | 32128-33 | NUT-HF Price: $0.25 |
| 3 | 99-0142 | SEAL-SAND, SIDE Price: $28.09 |
| 4 | 3229-1 | BOLT-CARR This part replaces 3229-25. Price: $3.39 |
| 5 | 99-0121 | PANEL-HOPPER, BACK Price: $356.79 |
| 6 | 99-0124 | PANEL-HOPPER, LH Price: $235.85 |
| 7 | 99-0143 | SEAL-SAND, FRONT Price: $44.56 |
| 8 | 100-1465 | FRONT HOPPER PANEL ASM Price: $632.01 |
| 11 | 74-0720 | TUBE-MANUAL Price: $22.99 |
| 12 | 2412-133 | CLAMP-R Price: $3.19 |
| 13 | 99-0012 | DECAL Price: $33.99 |
