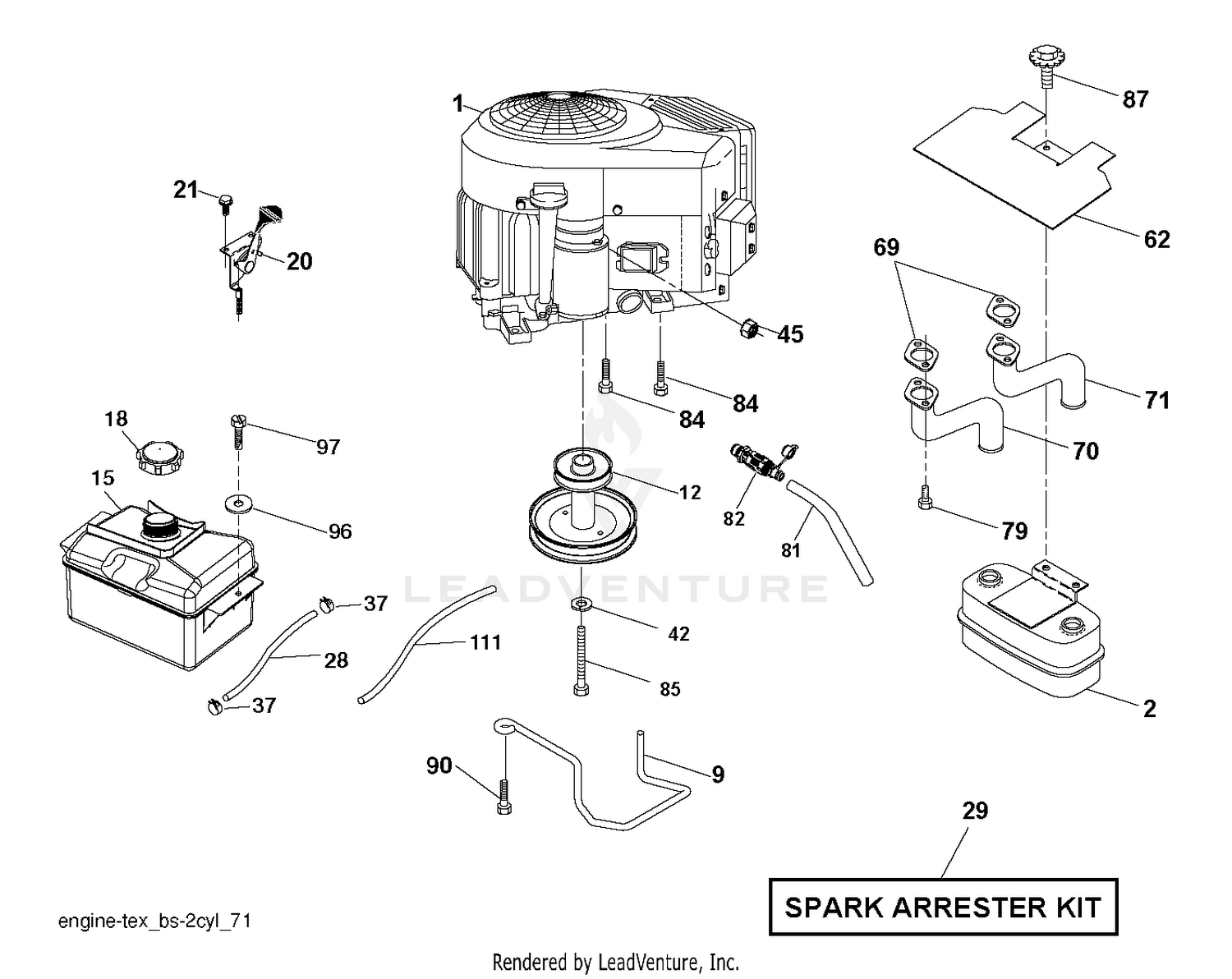

| Ref | Part Number | Description |
|---|
| 1 |
22-8330 |
PLUG Price: $64.59 |
| 2 |
237-42 |
O-RING Price: $2.78 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 3 |
22-8340 |
SPRING Price: $19.09 |
| 4 |
22-8350 |
BALL Price: $12.28 |
| 5 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 6 |
22-8360 |
PIN Price: $43.02 |
| 8 |
22-8420 |
SPOOL Price: $437.22 |
| 9 |
22-8500 |
O-RING Price: $18.87 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
22-8380 |
RETAINER Price: $17.86 |
| 11 |
22-8410 |
SPRING Price: $17.61 |
| 12 |
22-8390 |
RETAINER Price: $56.56 |
| 12 |
586478501 |
ENGINE.PULLEY This part replaces 532405471. Price: $27.99 |
| 13 |
22-8400 |
SPACER Price: $42.41 |
| 14 |
22-8480 |
RING-SNAP Price: $49.87 |
| 15 |
597954502 |
FUEL TANKS This part replaces 532433007. Price: $109.99 |
| 18 |
532438596 |
CAP.2.25'.VENTED.TETHER .EPA Price: $29.99 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 111 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
