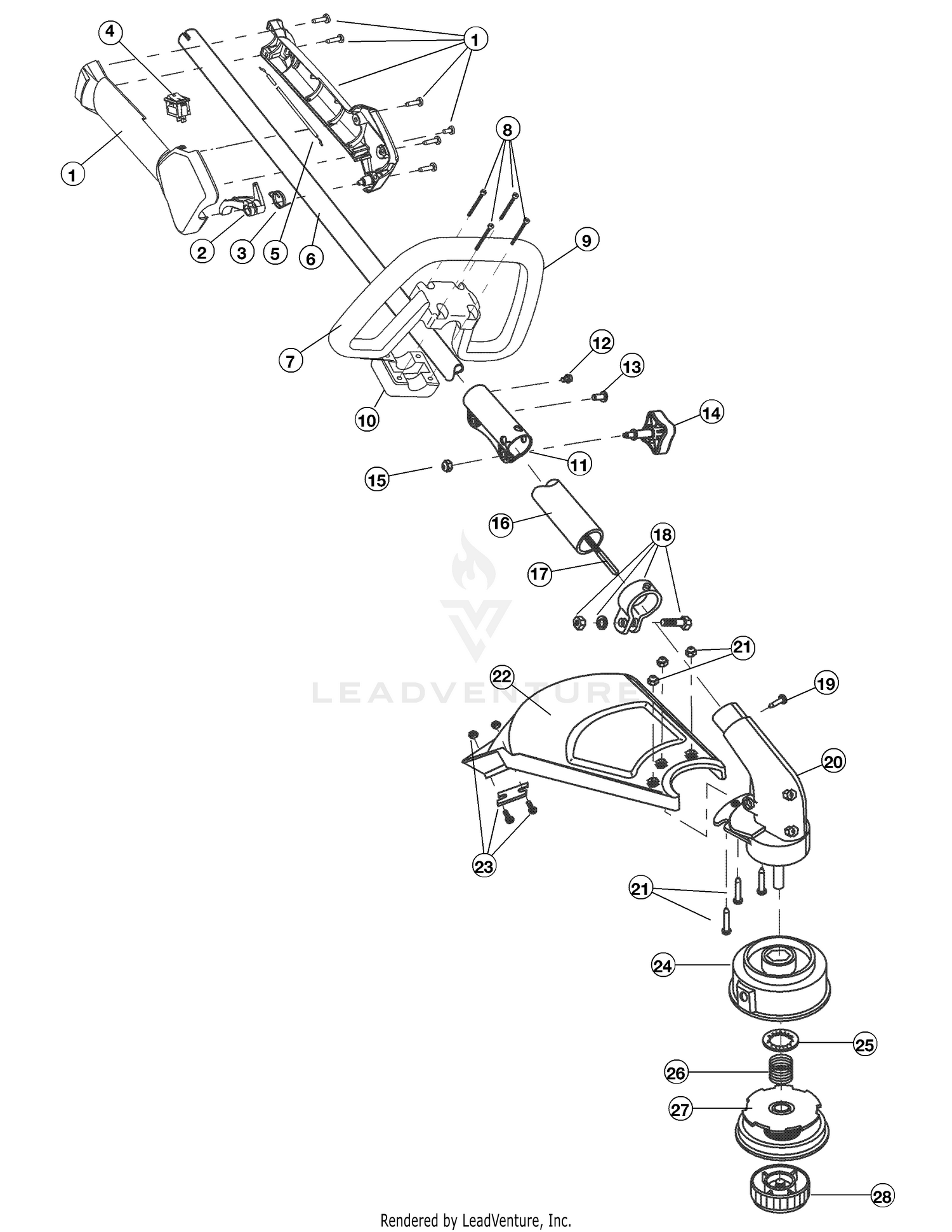

| Ref | Part Number | Description |
|---|
| 1 |
753-04234 |
Throttle Housing Assembly (includes 2-4) Price: $18.62 |
| 2 |
753-04119 |
Throttle Trigger Price: $6.56 |
| 3 |
791-182690 |
Throttle Trigger Spring Price: $7.01 |
| 4 |
791-182405 |
Switch Price: $9.29 |
| 5 |
753-04405 |
Throttle Cable Assembly Not Available Price: |
| 6 |
753-04344 |
Upper Drive Shaft Housing Assembly Price: $79.57 |
| 7 |
791-180869 |
D-HANDLE A Not Available Price: |
| 8 |
791-181070 |
Screw Price: $3.95 |
| 9 |
791-182167 |
HANDLE-LOOP Not Available Price: |
| 10 |
791-182168 |
BASE-LOOP HANDLE Not Available Price: |
| 11 |
753-1190 |
Split Boom Coupler (includes 12-15) Price: $20.56 |
| 12 |
791-182057 |
Screw Price: $3.93 |
| 13 |
791-181617 |
Bolt Price: $4.59 |
| 14 |
697-00661-9 |
CLICK LINK CLAMP Not Available This part replaces 791-181981. Price: |
| 15 |
712-04018A |
Knob Retaining Nut This part replaces 753-04386. Price: $3.78 |
| 16 |
753-04089 |
TRIMMER BOOM ASSEMBLY Not Available This part replaces 753-1212. Price: |
| 17 |
791-181166 |
Lower Flexible Drive Shaft Price: $24.86 |
| 18 |
791-153597 |
CLAMP ASSEMBLY-LOWER Not Available Price: |
| 19 |
791-145569 |
Anti-Rotation Screw Price: $9.02 |
| 20 |
791-180549 |
ASSEMBLY, GEARBOX Not Available Price: |
| 21 |
791-180547 |
ASSEMBLY, GUARD MOUNTING SCREWS Not Available Price: |
| 22 |
791-180548 |
ASSEMBLY, GUARD AND BLADE Not Available Price: |
| 23 |
791-682061 |
Blade Assembly Price: $12.51 |
| 24 |
791-153619 |
Outer Spool Assembly (includes 25) Price: $25.96 |
| 25 |
791-610660 |
Retaining Price: $4.29 |
| 26 |
791-610317B |
Spring Price: $9.47 |
| 27 |
753-1155 |
Inner Reel Price: $21.18 |
| 28 |
791-153066B |
Bump Head Knob Assembly Price: $11.65 |
