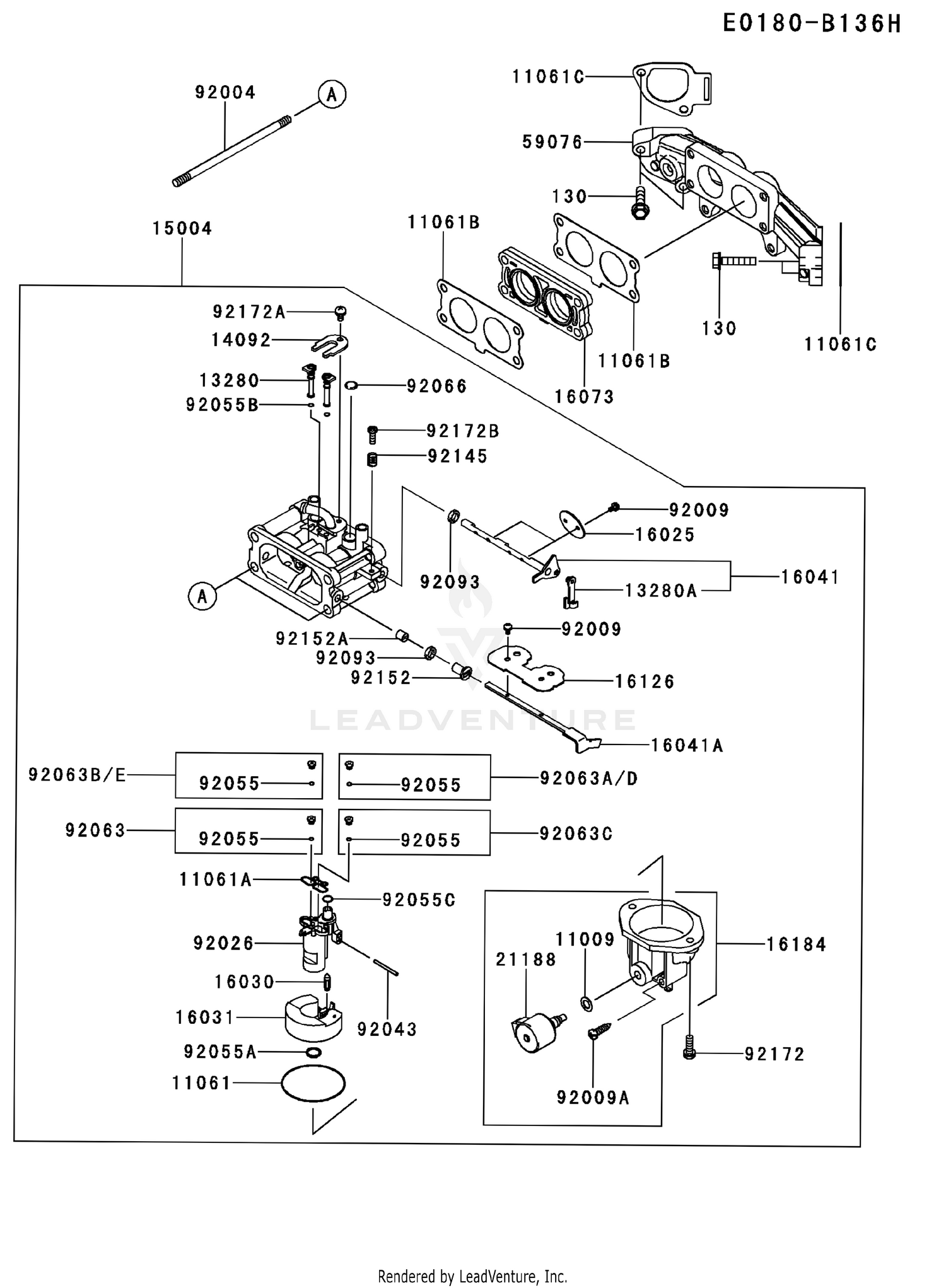

FX730V-AS39 CARBURETOR
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 11009 | KM-11009-2056 | GASKET-SOLENOID Price: $2.49 |
| 11061 | KM-11061-1286 | FLOAT CHAMBER GASKET Price: $2.28 |
| 11061A | KM-11061-7037 | GASKET-FLOAT SPACE Price: $7.63 |
| 11061B | KM-11061-7092 | GASKET-INSULATOR Price: $2.31 |
| 11061C | KM-11061-7093 | INTAKE MANIFOLD GASKET Price: $1.96 |
| 13280 | KM-13280-7003 | HOLDER Price: $8.50 |
| 13280A | KM-13280-7004 | HOLDER Price: $9.14 |
| 14092 | KM-14092-7001 | COVER Price: $5.94 |
| 15004 | KM-15004-1011 | CARBURETOR Price: $451.44 |
| 16025 | KM-16025-0025 | THROTTLE VALVE Price: $25.05 |
| 16030 | KM-16030-7004 | FLOAT VALVE Price: $33.63 |
| 16031 | KM-16031-7005 | FLOAT Price: $33.14 |
| 16041 | KM-16041-7052 | SHAFT-CARBURETOR T Not Available Price: |
| 16041A | KM-16041-7053 | SHAFT-CARBURETOR C Price: $41.52 |
| 16073 | KM-16073-0875 | INSULATOR Price: $9.30 |
| 16126 | KM-16126-7022 | VALVE Price: $5.17 |
| 16184 | KM-16184-7023 | CHAMBER-ASSEMBLY FLOAT Price: $192.17 |
| 21188 | KM-21188-7003 | SOLENOID-CARBURETO Price: $189.04 |
| 59076 | KM-59076-0008 | INTAKE MANIFOLD Price: $120.50 |
| 92004 | KM-92004-0723 | BOLT-STUD Price: $2.77 |
| 92009 | KM-92009-7003 | SCREW Price: $2.55 |
| 92009A | KM-92009-7006 | SCREW-DRAIN Price: $2.46 |
| 92026 | KM-92026-7011 | SPACER-CARB FLOAT Price: $8.09 |
| 92043 | KM-92043-7016 | PIN-FLOAT Price: $1.82 |
| 92055 | KM-92055-7013 | O-RING Price: $2.49 |
| 92055A | KM-92055-7016 | O-RING Price: $2.46 |
| 92055B | KM-92055-7023 | O-RING Price: $2.49 |
| 92055C | KM-92055-7024 | O-RING Price: $2.42 |
| 92063 | KM-92063-0723 | MAIN JET #113 Price: $8.40 |
| 92063C | KM-92063-7135 | MAIN JET #115 Price: $18.29 |
| 92066 | KM-92066-0780 | WELCH PLUG Price: $1.24 |
| 92093 | KM-92093-7002 | THROTTLE SHAFT SEAL Price: $1.79 |
| 92145 | KM-92145-7039 | SPRING-THROT ADJUST Price: $2.67 |
| 92152 | KM-92152-7018 | COLLAR Price: $3.02 |
| 92152A | KM-92152-7019 | COLLAR Price: $1.94 |
| 92172 | KM-92172-7005 | FLOAT SCREW CHAMBE Price: $2.55 |
| 92172A | KM-92172-7006 | SCREW-CARB CVR PLA Price: $2.29 |
| 92172B | KM-92172-7039 | SCREW-THROTTLE ADJ Price: $1.48 |
