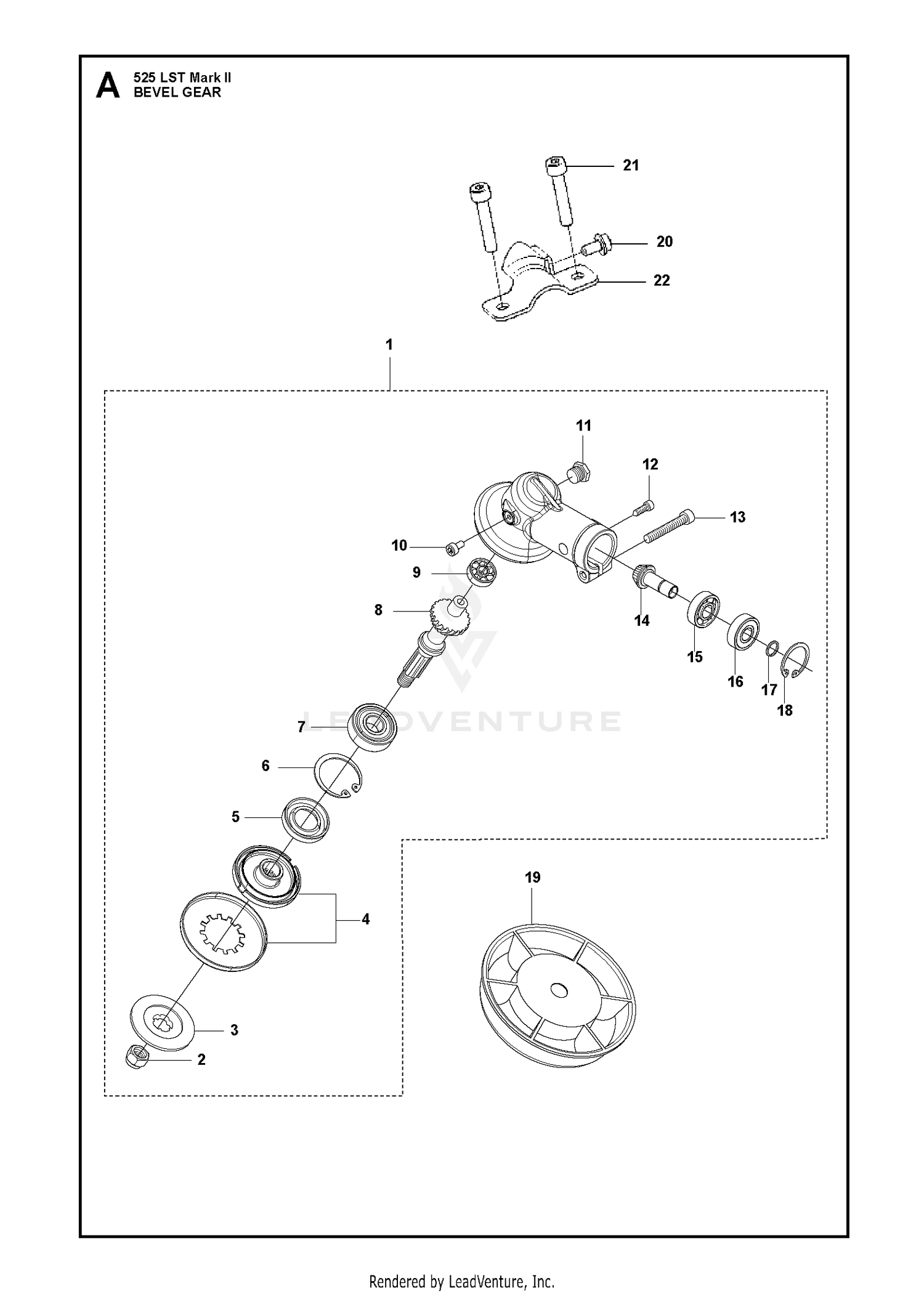

| Ref | Part Number | Description |
|---|
| 1 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 1 |
584964601 |
BEVEL GEAR ASSY Price: $99.99 |
| 2 |
503856301 |
GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 2 |
80-8110 |
DISCONTINUED Price: Call Us |
| 2 |
80-9530 |
DISCONTINUED Price: Call Us |
| 2 |
83-6100 |
DECAL- ENGLISH, CONTROL Price: $27.60 |
| 2 |
93-9364 |
PANEL-ENGINE DECAL Price: $17.96 |
| 3 |
537285601 |
SUPPORT FLANGE Price: $9.99 |
| 3 |
65-8970 |
KNOB-SHIFT Price: $18.47 |
| 4 |
584442201 |
DRIVER ASSY Price: $22.99 |
| 4 |
80-8400 |
CONTROL-SPEED Price: $88.88 |
| 5 |
80-7670 |
PLATE-CONTROL, SPEED Price: $18.82 |
| 6 |
322-3 |
SCREW-HH Price: $0.79 |
| 6 |
504121001 |
RING Price: $2.99 |
| 7 |
510569701 |
BEARING*** Price: $7.99 |
| 7 |
80-7890 |
SPRING-COMPRESSION Price: $36.37 |
| 8 |
256-116 |
BUSHING-FLANGE Price: $3.52 |
| 8 |
584442001 |
GEAR ASSY Price: $54.99 |
| 9 |
516127701 |
BEARING (RPLS T330013520) Price: $6.99 |
| 9 |
80-7540 |
STOP-SPEED Price: $140.14 |
| 10 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 10 |
578394801 |
BOLT Price: $3.99 |
| 11 |
576399001 |
SCREW M10X1.25 T27 Price: $4.99 |
| 11 |
80-7000 |
PIVOT Price: $84.53 |
| 12 |
323-7 |
SCREW-HH Price: $0.65 |
| 12 |
521515901 |
BOLT (RPLS T495051010-11) Price: $2.99 |
| 13 |
2411-51 |
END-ROD, RH Price: $49.63 |
| 13 |
577942001 |
BOLT M5X20 T27 Price: $2.99 |
| 14 |
577457701 |
PINION HIGH REDUCTION RATIO Price: $34.99 |
| 14 |
80-7580 |
ROD-ADJUSTMENT, SPEED Price: $47.08 |
| 15 |
3220-3 |
NUT-HJ Price: $0.28 |
| 15 |
505169201 |
BEARING Price: $5.99 |
| 16 |
505169301 |
BEARING Price: $4.99 |
| 16 |
80-7590 |
SPACER Price: $4.42 |
| 17 |
323-14 |
SCREW-HH Price: $1.34 |
| 17 |
521821801 |
RING Price: $2.99 |
| 18 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 18 |
505169401 |
RP_RING Price: $2.99 |
| 19 |
503890101 |
SUPPORTING CUP Price: $14.99 |
| 19 |
80-7730 |
SPACER Price: $1.97 |
| 20 |
2411-50 |
END-ROD, LH Price: $49.63 |
| 20 |
521515901 |
BOLT (RPLS T495051010-11) Price: $2.99 |
| 21 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 21 |
512846401 |
BOLT, TORX Price: $2.99 |
| 22 |
581227301 |
BRACKET Price: $4.99 |
| 22 |
80-7600 |
PIN-PIVOT Price: $82.94 |
| 23 |
80-7830 |
PIVOT Price: $157.33 |
| 24 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 25 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 26 |
80-8430 |
CABLE-CONTROL, SPEED Price: $18.78 |
| 27 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 28 |
42-3560 |
BOLT-SHOULDER Price: $4.85 |
| 29 |
66-4160 |
SPRING-SOLENOID, UPPER Price: $11.93 |
| 30 |
323-4 |
SCREW-HH Price: $1.02 |
| 31 |
80-8150 |
DISCONTINUED Price: Call Us |
| 31 |
83-6080 |
DECAL-WASH/CHOKE CONTRL Price: $17.98 |
| 31 |
93-9362 |
DISCONTINUED Price: Call Us |
| 32 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 33 |
32104-60 |
SCREW-HWH Price: $0.68 |
| 33 |
3269-32 |
RIVET-POP Price: $0.25 |
| 34 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
