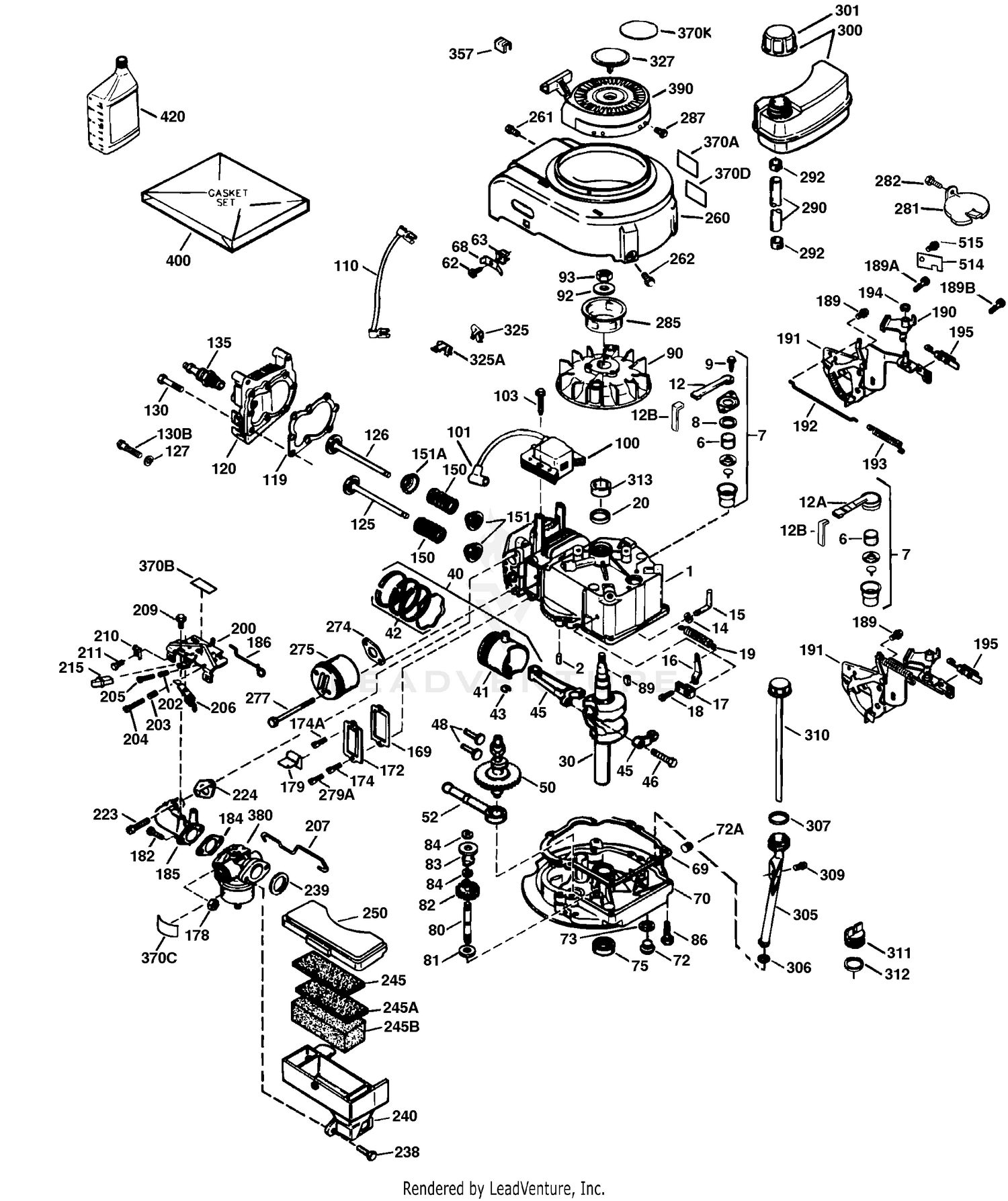

| Ref | Part Number | Description |
|---|
| 1 |
36470A |
CYLINDER Price: $96.61 |
| 2 |
26727 |
DOWEL PIN Price: $1.26 |
| 6 |
33734 |
AIR CLEANER Price: $1.22 |
| 7 |
36557 |
BREATHER Price: $13.50 |
| 12 |
37944 |
TUBE This part replaces 36775. Price: $1.89 |
| 12A |
36558 |
COVER & TUBE Price: $7.26 |
| 12B |
36694 |
FITTING Price: $1.22 |
| 14 |
28277 |
WASHER Price: $1.26 |
| 15 |
30589 |
GOVERNOR ROD Price: $3.89 |
| 16 |
34839A |
GOV LEVER Price: $1.26 |
| 17 |
31335 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW Price: $1.18 |
| 19 |
36281 |
EXT SPRING Price: $0.88 |
| 20 |
32600 |
OIL SEAL Price: $4.80 |
| 30 |
37311 |
CRANKSHAFT This part replaces 34463. Price: $47.89 |
| 40 |
34514 |
PISTON ASSY STD Price: Call Us |
| 40 |
34515 |
PISTON ASSY 010 Price: $57.12 |
| 40 |
34516 |
PISTON ASSY 020 Price: $57.12 |
| 41 |
32538B |
PISTON & PIN ST Price: $31.97 |
| 41 |
32548B |
PISTON & PIN 10 Price: $34.97 |
| 41 |
32549B |
PISTON & PIN 20 Price: $35.71 |
| 42 |
28986 |
RING SET STD Price: Call Us |
| 42 |
28987 |
RING SET 010 Price: $20.53 |
| 42 |
28988 |
RING SET 020 Price: Call Us |
| 43 |
20381 |
RET RING Price: $1.26 |
| 45 |
30963B |
CONN ROD Price: $20.90 |
| 46 |
32610A |
SCREW Price: $1.26 |
| 48 |
27241 |
VALVE LIFTER Price: $3.89 |
| 50 |
35990 |
CAMSHAFT Price: $28.12 |
| 52 |
29914 |
OIL PUMP Price: $6.54 |
| 69 |
37609 |
GASKET This part replaces 35261. Price: $2.25 |
| 70 |
37620 |
MTG FLANGE This part replaces 30571C. Price: $57.52 |
| 72 |
36083 |
DRAIN PLUG Price: $4.95 |
| 75 |
26208 |
OIL SEAL Price: $5.75 |
| 80 |
30574A |
GOV SHAFT Price: $5.00 |
| 81 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 82 |
30591 |
GEAR Price: $9.93 |
| 83 |
30588A |
GOV SPOOL Price: $1.26 |
| 86 |
650488 |
SCREW Price: $1.25 |
| 89 |
611004 |
KEY Price: $1.10 |
| 90 |
611299 |
FLYWHEEL Price: $52.41 |
| 92 |
650815 |
WASHER Price: $1.25 |
| 93 |
650816 |
NUT Price: $2.95 |
| 100 |
34443D |
LAMINATION This part replaces 34443B. Price: $35.95 |
| 101 |
610118 |
PLUG COVER Price: $4.45 |
| 103 |
651007 |
SCREW Price: $1.17 |
| 110 |
36230 |
GROUND WIRE Price: $1.26 |
| 119 |
36437 |
GASKET Price: $2.62 |
| 120 |
36474 |
CYL HEAD Price: $23.98 |
| 125 |
36471 |
EXH VALVE STD Price: $9.82 |
| 125 |
36472 |
EXH VALVE OS Price: Call Us |
| 126 |
29314C |
INT VALVE ST Price: $4.05 |
| 126 |
29315C |
EX/INT VALVE OS Price: Call Us |
| 130 |
6021A |
SCREW Price: $1.26 |
| 135 |
35395 |
SPARK PLUG Price: $2.47 |
| 150 |
31672 |
VALVE SPRING This part replaces 35991. Price: $1.26 |
| 151 |
31673 |
VALVE CAP Price: $1.23 |
| 169 |
27234A |
GASKET Price: $3.95 |
| 172 |
32755 |
VALVE COVER Price: $3.79 |
| 174 |
30200 |
SCREW Price: $3.25 |
| 178 |
29752 |
NUT Price: $1.26 |
| 179 |
30593 |
CLIP Price: $1.19 |
| 182 |
6201 |
SCREW Price: $1.26 |
| 184 |
26756 |
Gasket Price: $2.95 |
| 185 |
36544 |
INTAKE PIPE Price: $9.82 |
| 186 |
34337 |
GOV LINK Price: $1.26 |
| 189 |
650356 |
SCREW Price: $1.25 |
| 189A |
650926 |
SCREW Price: $0.88 |
| 200 |
33131A |
CONTROL ASSY Price: $23.80 |
| 202 |
36482 |
COMP SPRING Price: $2.80 |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW Price: $1.22 |
| 205 |
651019 |
SCREW Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 207 |
34336A |
GOV LINK This part replaces 34336. Price: $1.23 |
| 209 |
30200 |
SCREW Price: $3.25 |
| 210 |
27793 |
CLIP Price: $1.26 |
| 211 |
28942 |
SCREW Price: $0.88 |
| 223 |
650451 |
SCREW Price: $1.25 |
| 224 |
34690A |
GASKET Price: $3.00 |
| 238 |
650932 |
SCREW Price: $2.00 |
| 239 |
34338 |
GASKET Price: $1.23 |
| 245 |
35066 |
AIR CLEANER Price: $3.95 |
| 250 |
35065 |
CLEANER COV This part replaces 35986. Price: $6.09 |
| 260 |
37155 |
BLOWER HSG Price: Call Us |
| 261 |
30200 |
SCREW Price: $3.25 |
| 262 |
650831 |
SCREW Price: $1.20 |
| 275 |
36473A |
MUFFLER This part replaces 36473. Price: $10.60 |
| 277 |
650988 |
SCREW Price: $2.89 |
| 285 |
35000A |
STARTER CUP Price: $6.54 |
| 287 |
650926 |
SCREW Price: $0.88 |
| 290 |
29774 |
FUEL LINE This part replaces 34357. Price: $2.78 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 300 |
37947A |
FUEL TANK This part replaces 35586. Price: $38.00 |
| 301 |
37844 |
FUEL CAP This part replaces 36246. Price: $4.19 |
| 311 |
27625 |
FILLER PLUG Price: $1.65 |
| 313 |
34080 |
SPACER Price: $1.26 |
| 370A |
36261 |
DECAL Price: Call Us |
| 370C |
37199 |
DECAL Price: $1.00 |
| 370K |
36695 |
DECAL Price: $1.00 |
| 380 |
632795A |
CARBURETOR This part replaces 632772. Price: $78.00 |
| 390 |
590732A |
STARTER This part replaces 590732. Price: $44.36 |
| 400 |
36475B |
GASKET SET Price: $7.83 |
| 420 |
730225A |
OIL SAE 30 This part replaces 730225. Price: $3.38 |
