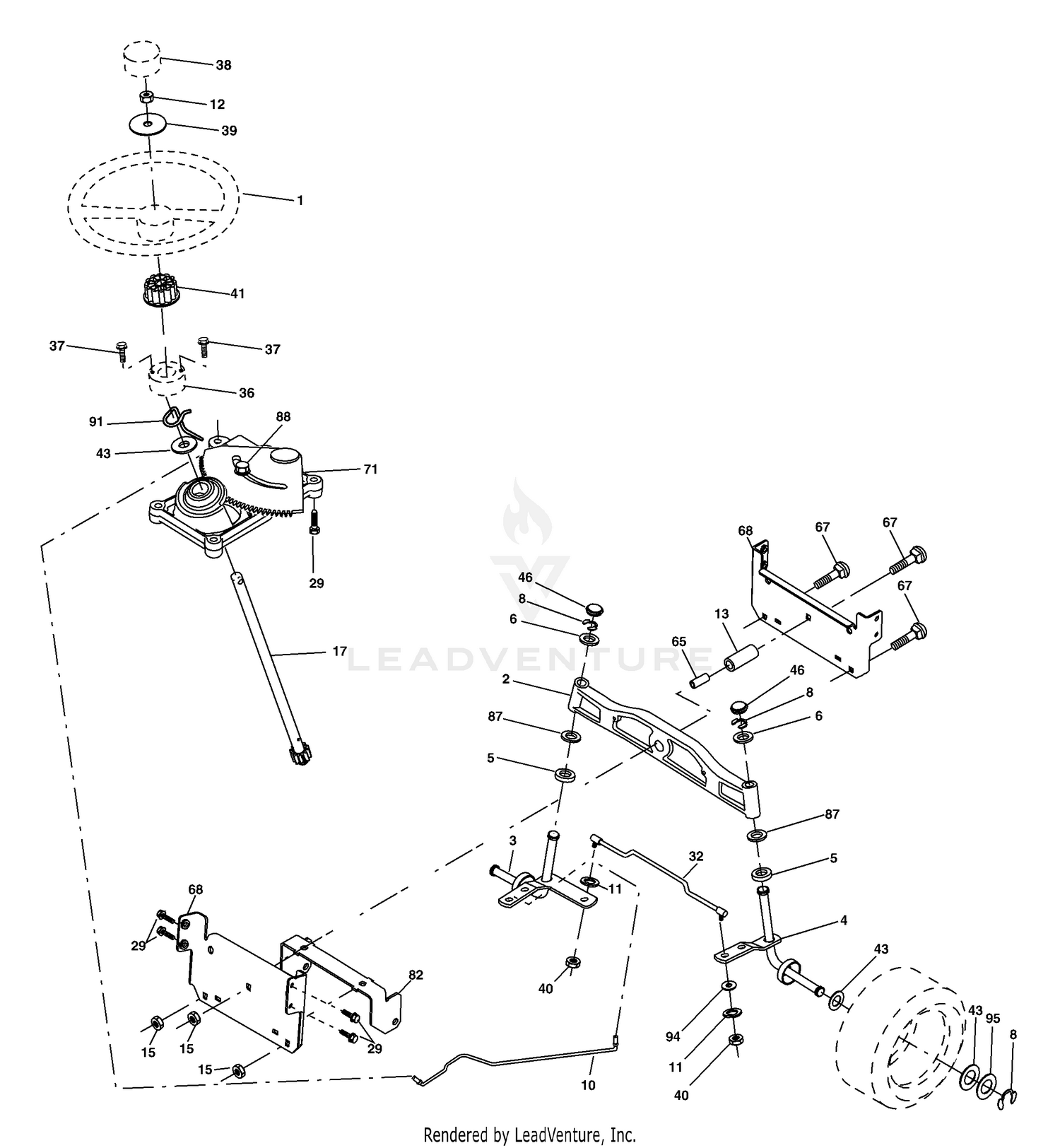

| Ref | Part Number | Description |
|---|
| 1 |
532159944 |
This part replaces 532166627. Price: $39.99 |
| 1 |
92-5691 |
HOSE-HYD Price: $113.74 |
| 2 |
340-69 |
ELBOW-BULKHEAD, 45 DEG Price: $31.67 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $112.99 |
| 3 |
532169840 |
Spindle Asm LH Price: $17.99 |
| 3 |
92-5690 |
REVERSE TUBE ASM Price: $313.01 |
| 4 |
532169839 |
Spindle Asm RH Price: $17.99 |
| 4 |
92-5689 |
FORWARD TUBE ASM Price: $333.88 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 5 |
92-5693-01 |
BRACKET-BULKHEAD Price: $31.76 |
| 6 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 6 |
92-5692 |
U-BOLT Price: $40.59 |
| 7 |
340-70 |
NUT-LOCK Price: $2.10 |
| 8 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 8 |
812000029 |
Ring Klip #t5304-75 Price: $1.99 |
| 9 |
111-5088-03 |
JOINT-BALL, STEERING CYLINDER This part replaces 92-4725. Price: $198.95 |
| 10 |
532175121 |
Link Drag Price: $40.99 |
| 10 |
66-5560 |
U-BOLT Price: $12.01 |
| 11 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 11 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 12 |
873940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: $3.99 |
| 13 |
532136518 |
Spacer Brg Axle Front Price: $6.99 |
| 13 |
92-5696 |
FITTING-ELBOW, 90 DEG Price: $110.05 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49 |
| 17 |
532177883 |
Shaft Asm Strg Price: $67.99 |
| 17 |
92-4728 |
TUBE-FRONT Price: $133.35 |
| 18 |
92-5687 |
HOSE ASM Price: $113.74 |
| 19 |
340-88 |
FITTING-STRAIGHT Price: $11.24 |
| 20 |
322-3 |
SCREW-HH Price: $0.79 |
| 21 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 22 |
86-6460-01 |
BRACKET-BLOCK Price: $63.44 |
| 23 |
92-4727 |
TUBE-REAR Price: $133.27 |
| 24 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 26 |
69-9740 |
SWITCH Price: $125.46 |
| 27 |
92-2982 |
CONTROL BLOCK ASM Price: $2,640.21 |
| 28 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 29 |
340-94 |
ADAPTER Price: $36.83 |
| 29 |
817000612 |
Screw 3/8-16 x 3/4 Price: $2.99 |
| 30 |
3217-6 |
NUT-HEX Price: $1.19 |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 32 |
532180580 |
Rod Tie Price: $99.99 |
| 32 |
99-8741-01 |
BRACKET-SUPPORT, HOSE Price: $32.79 |
| 33 |
2412-107 |
CLAMP-R Price: $2.65 |
| 34 |
810040500 |
Washer Lock Hvy Helical 5/16 Price: $2.99 |
| 36 |
532155108 |
KIT/BUSH This part replaces 532155105. Price: $3.99 |
| 37 |
532152927 |
Screw Price: $3.99 |
| 38 |
532172092 |
Wheel Steering This part replaces 532166626. Price: $9.99 |
| 39 |
819183812 |
Washer 9/16 x 2-3/8 12 Ga. Price: $3.99 |
| 40 |
873540600 |
Nut Crownlock 3/8-24 Price: $1.49 |
| 41 |
532159945 |
Adaptor Wheel Strg Price: $5.99 |
| 43 |
532121749 |
Washer 25/32 x 1 1/4 x 16 Ga. Price: $1.99 |
| 46 |
532121232 |
Cap Spindle Fr Top Blk Price: $1.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $2.99 |
| 67 |
872110618 |
Bolt Rdhd Sq 3/8-16 x 2-1/4 Price: $2.99 |
| 68 |
532169827 |
Axle, Brace Price: $14.99 |
| 71 |
532175146 |
Steering Asm Price: $61.99 |
| 82 |
532199978 |
BRACKET.SUSP.CHASSIS.FRONT.15 This part replaces 532169835. Price: $11.99 |
| 87 |
532173966 |
Washer Flat .781 x 1-1/2 x .14 Price: $3.99 |
| 88 |
532175118 |
Bolt Shoulder 7/16-20 Price: $3.99 |
| 91 |
532175553 |
Clip Steering Price: $8.99 |
| 94 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
