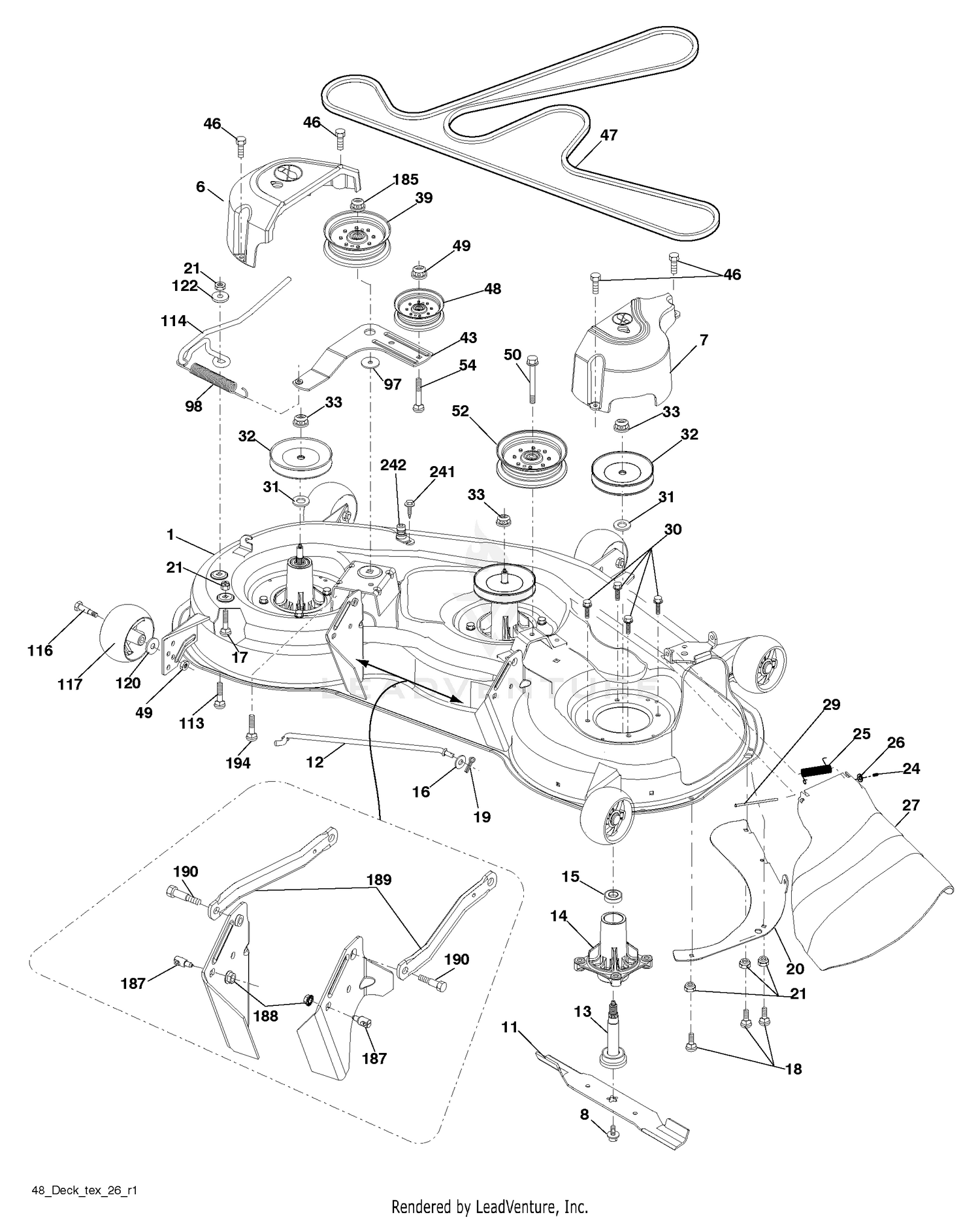

| Ref | Part Number | Description |
|---|
| 1 |
40-6230 |
SPRING Price: $37.99 |
| 1 |
532439818 |
DECK SVC 48" 4GWB 197216X431 This part replaces 532403582. Price: $599.99 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 4 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 5 |
3296-5 |
NUT-HEX Price: $3.09 |
| 6 |
532197248 |
COVER.MANDREL.LH.48"(2 2) Price: $19.99 |
| 6 |
66-6380 |
DECAL-DANGER Price: $8.97 |
| 7 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 7 |
587452401 |
COVER.RH.MANDREL This part replaces 532199102. Price: $17.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 12 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 13 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 13 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 14 |
28-9060 |
PLATE-IDLER Price: $137.75 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 16 |
99-1297 |
IDLER ARM ASM This part replaces 27-8580. Price: $133.94 |
| 17 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 17 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 18 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 19 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
27-1160 |
V-BELT Price: $51.80 |
| 23 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 24 |
32146-20 |
NUT-HEX Price: $3.23 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 25 |
7-4150 |
WASHER Price: $1.19 |
| 26 |
27-0970-03 |
PULLEY ASM This part replaces 27-0970. Price: $51.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
253-139 |
SEAL-OIL Price: $12.45 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $39.99 |
| 28 |
46-8530 |
BEARING ASM Price: $93.99 |
| 29 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
68-8340 |
DECAL-TORQUE Price: $19.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 32 |
61-4160 |
HOUSING-SPINDLE Price: $131.00 |
| 33 |
32128-21 |
NUT-HF Price: $0.39 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
27-0920 |
SHAFT Price: $158.07 |
| 35 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 36 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 37 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 38 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 39 |
27-0950 |
SPACER Price: $29.99 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH This part replaces 532197380. Price: $37.99 |
| 40 |
72-9210 |
DISCONTINUED Price: Call Us |
| 41 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 42 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 43 |
29-4820 |
ROLLER Price: $14.88 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 44 |
3211-8 |
SCREW-HH Price: $3.50 |
| 45 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 46 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
3211-15 |
SCREW-HH Price: $7.99 |
| 47 |
593773401 |
Belts- 197242 This part replaces 532197242. Price: $54.99 |
| 48 |
13-3949 |
DEFLECTOR ASM Price: $214.07 |
| 48 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 49 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 50 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 52 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 54 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532197451 |
ROD.TENSION.RELIEF.TEX (2 2) Price: $14.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 120 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 188 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 189 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X This part replaces 872140716. Price: $9.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 532173921 |
BLADE.MULCH.48" |
Price: $19.99 532173921 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $8.99 532416405 |
