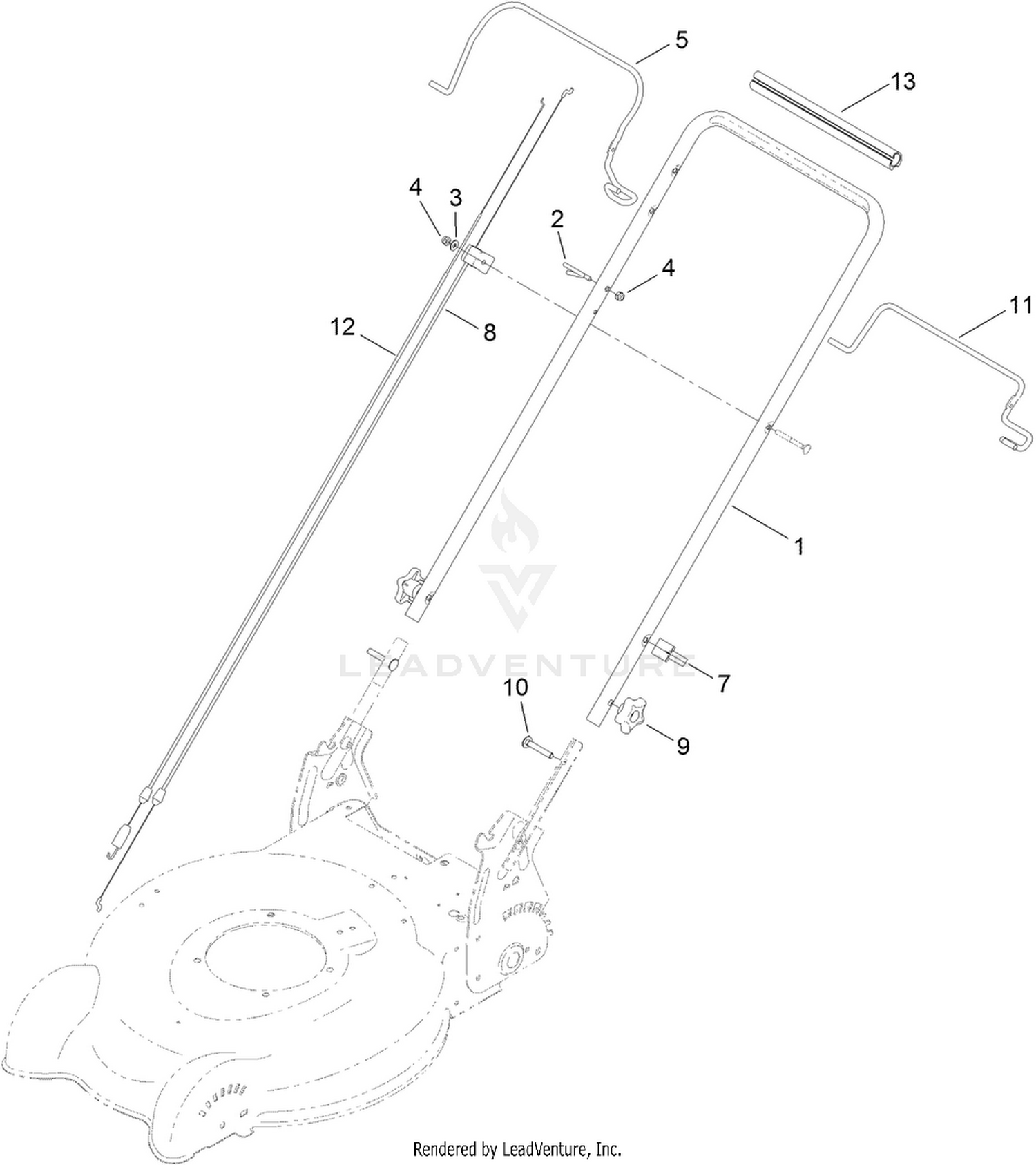

Handle Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-0308-05 | HANDLE-UPPER Price: $39.88 |
| 2 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 3 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 4 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 5 | 117-5940-03 | BAIL-BRAKE Price: $15.08 |
| 7 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 8 | 112-8818 | CABLE-BRAKE Price: $22.47 |
| 9 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 10 | 3230-6 | BOLT-CARR Price: $0.59 |
| 11 | 112-8835-03 | BAIL-TRACTION, 2-BAIL FLAT Price: $18.80 |
| 12 | 112-8817 | CABLE-TRACTION Price: $22.47 |
