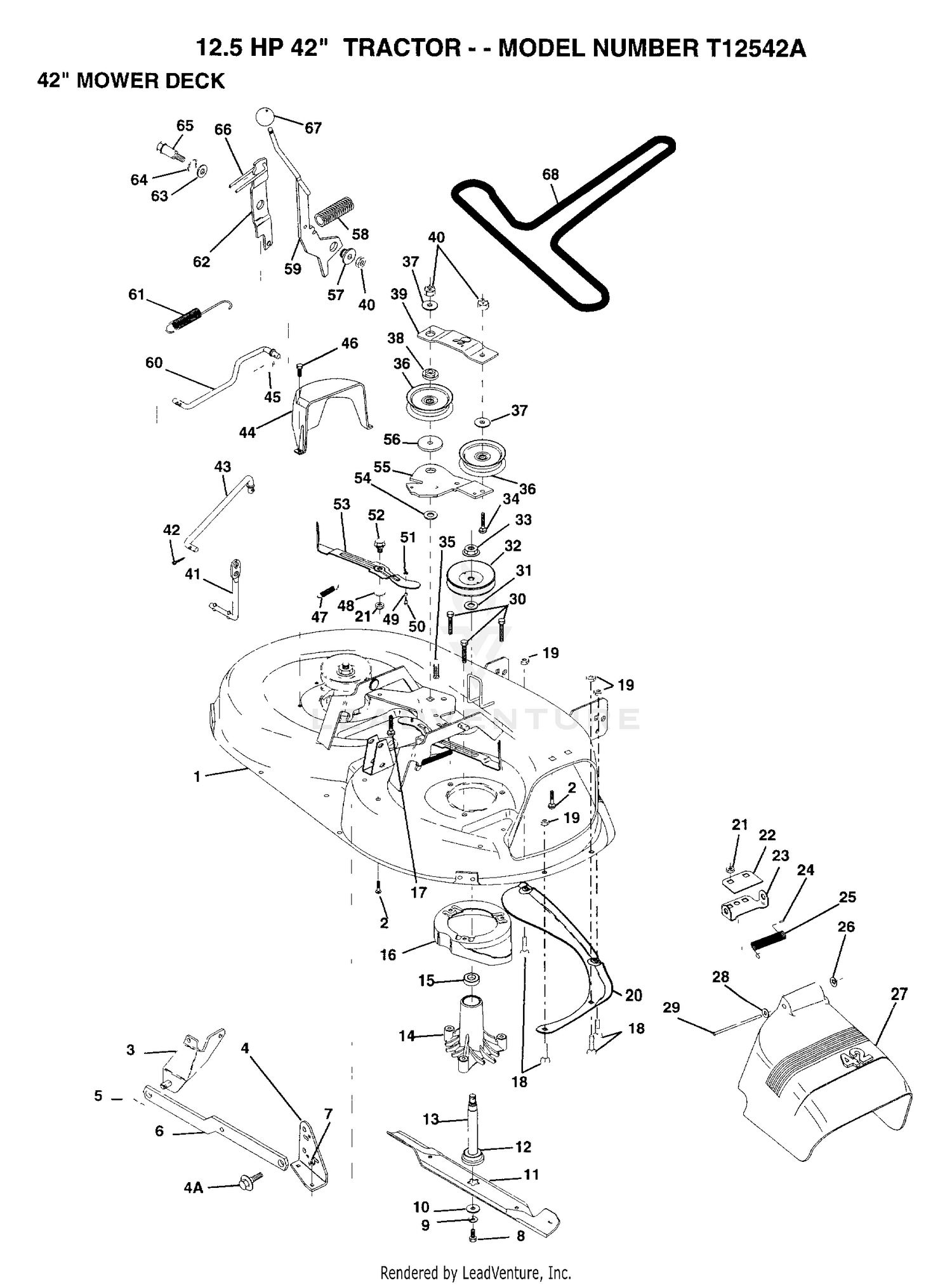

| Ref | Part Number | Description |
|---|
| 1 |
121-4698 |
NUT-KEPS This part replaces 32149-5. Price: $1.15 |
| 1 |
138024 |
SUB= 145338 Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4A |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 7 |
73800500 |
NUT Price: Call Us |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 10 |
129962 |
WASHER BLADE Price: Call Us |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 13 |
137641 |
SUB= 137646 Price: Call Us |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
136929 |
SUB= 140329 Price: Call Us |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 17 |
72110618 |
BOLT CARRIAGE Price: Call Us |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
3210-8 |
SCREW-HH Price: $1.02 |
| 19 |
73800500 |
NUT Price: Call Us |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3574 |
SHIM-BEARING, FRONT (.102) Price: $23.68 |
| 22 |
72-3575 |
SHIM-BEARING, FRONT (.104) Price: $22.53 |
| 22 |
72-3576 |
SHIM-BEARING, FRONT (.106) Price: $23.68 |
| 22 |
72-3577 |
SHIM-BEARING, FRONT (.108) Price: $22.53 |
| 22 |
72-3578 |
SHIM-BEARING, FRONT (.110) Price: $22.53 |
| 22 |
72-3580 |
SHIM-BEARING, FRONT (.112) Price: $22.53 |
| 22 |
72-3581 |
SHIM-BEARING, FRONT (.114) Price: $22.53 |
| 22 |
72-3582 |
SHIM-BEARING, FRONT (.116) Price: $22.53 |
| 22 |
72-3583 |
SHIM-BEARING, FRONT (.118) Price: $56.93 |
| 22 |
72-3584 |
SHIM-BEARING, FRONT (.120) Price: $24.63 |
| 22 |
72-3585 |
SHIM-BEARING, FRONT (.125) Price: $22.53 |
| 22 |
72-3586 |
SHIM-BEARING, FRONT (.127) Price: $22.53 |
| 22 |
72-3587 |
SHIM-BEARING, FRONT (.129) Price: $23.68 |
| 22 |
72-3588 |
SHIM-BEARING, FRONT (.131) Price: $22.53 |
| 22 |
72-3590 |
SHIM-BEARING, FRONT (.133) Price: $22.53 |
| 22 |
72-3591 |
SHIM-BEARING, FRONT (.135) Price: $21.44 |
| 22 |
72-3592 |
SHIM-BEARING, FRONT (.137) Price: $22.53 |
| 22 |
72-3593 |
SHIM-BEARING, FRONT (.139) Price: $23.68 |
| 22 |
72-3594 |
SHIM-BEARING, FRONT (.141) Price: $23.68 |
| 22 |
72-3595 |
SHIM-BEARING, FRONT (.143) Price: $22.53 |
| 22 |
72-3596 |
SHIM-BEARING, FRONT (.145) Price: $22.53 |
| 22 |
72-3597 |
SHIM-BEARING, FRONT (.147) Price: $22.53 |
| 22 |
72-3598 |
SHIM-BEARING, FRONT (.149) Price: $24.63 |
| 22 |
72-3600 |
SHIM-BEARING, FRONT (.151) Price: $23.68 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
93-3619 |
UPPER HOUSING ASM Price: $1,825.32 |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 30 |
78158 |
SUB= 17580520 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 32 |
129861 |
SUB= 153535 Price: Call Us |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 34 |
72110614 |
BOLT Price: Call Us |
| 34 |
75-0721 |
DISCONTINUED Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
19131612 |
WASHER GT Price: Call Us |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
133502 |
RETAINER SPACER Price: Call Us |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 42 |
76020312 |
SUB= 3145 Price: Call Us |
| 42 |
93-3618 |
GEAR AND PINION ASM Price: $1,107.66 |
| 43 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 44 |
134236 |
SUB= 140088 Price: Call Us |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 47 |
131335 |
SPRING EXTENSION Price: Call Us |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
105529X |
SUB= 139888 Price: Call Us |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
133844 |
IDLER ARM Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 57 |
127498 |
BUSHING Price: Call Us |
| 58 |
128759 |
SUB= 918128759 Price: Call Us |
| 59 |
133573 |
CLUTCH ARM PRI AS Price: Call Us |
| 61 |
131870 |
RETURN SPRING Price: Call Us |
| 62 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 63 |
121748X |
WASHER Price: Call Us |
| 64 |
12000029 |
RING Price: Call Us |
| 65 |
128903 |
SHOULDER BOLT Price: Call Us |
| 66 |
127845 |
SPRING KEEPER Price: Call Us |
| 67 |
7803J |
SUB= 106932X Price: Call Us |
| 68 |
130969 |
BELT-V.92.4.MWR Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
