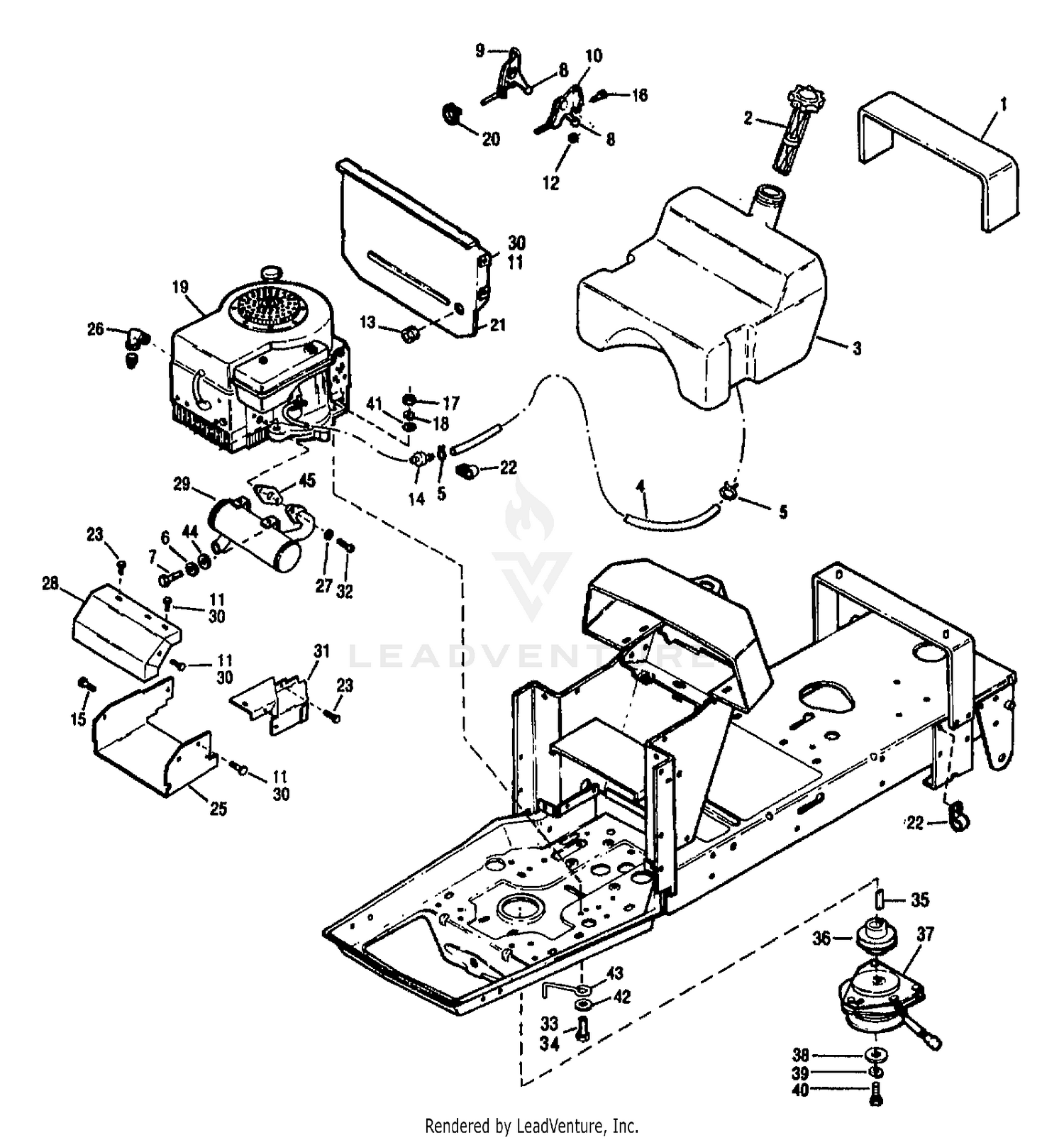

| Ref | Part Number | Description |
|---|
| 1 |
1744390 |
PAD-FUEL TANK Price: Call Us |
| 2 |
751-0531B |
Gas Gauge This part replaces 1756044. Price: $73.30 |
| 3 |
1756460 |
TANK-FUEL Price: Call Us |
| 4 |
1752795 |
FUEL LINE Not Available Price: |
| 5 |
726-0205 |
Hose Clamp This part replaces 1750687. Price: $3.71 |
| 8 |
731-0108 |
Knob, Throttle Control This part replaces 1737118. Price: $8.12 |
| 9 |
1755926P |
THROTTLE CONTROL Not Available This part replaces 1755926. Price: |
| 10 |
1755927 |
C-CONTROL Not Available Price: |
| 13 |
1748014 |
GROMMET-SPLIT Not Available Price: |
| 14 |
BS-298090S |
Fuel Filter This part replaces 1727491. Price: $5.76 |
| 15 |
710-04048 |
SCREW 5/16-18 x 1 GR5 This part replaces 1186330. Price: $4.19 |
| 16 |
1750962 |
SCR-FHP #1 Not Available Price: |
| 21 |
1752883001 |
SHIELD-HEAT (RED) Price: Call Us |
| 22 |
1747738 |
CLIP-J Not Available Price: |
| 23 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 25 |
1752909001 |
HEAT SHIELD Not Available Price: |
| 26 |
1752912 |
ELBOW 90 D Not Available Price: |
| 27 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1185140. Price: $4.29 |
| 28 |
1752911001 |
HEAT SHIELD Not Available Price: |
| 29 |
1752890 |
MUFFLER Price: Call Us |
| 30 |
712-0147 |
U-Type Speed Nut This part replaces 1185986. Price: $6.01 |
| 31 |
1752910001 |
HEAT SHIELD Not Available Price: |
| 32 |
710-1177 |
SCREW 5/16-18 x .750 Not Available This part replaces 1747993. Price: |
| 36 |
1747148 |
SHEAVE Not Available Price: |
| 37 |
917-3497 |
PTO CLUTCH ASSEMBLY This part replaces 1755341. Price: $587.56 |
| 38 |
1744455 |
WASHER-SPE Not Available Price: |
| 40 |
710-0510 |
Screw, 7/16-20, 3.00, Gr5 This part replaces 1744454. Price: $9.78 |
| 43 |
1754787 |
CLUTCH-RETAINER Not Available Price: |
| 44 |
1755340 |
SPACER Not Available Price: |
