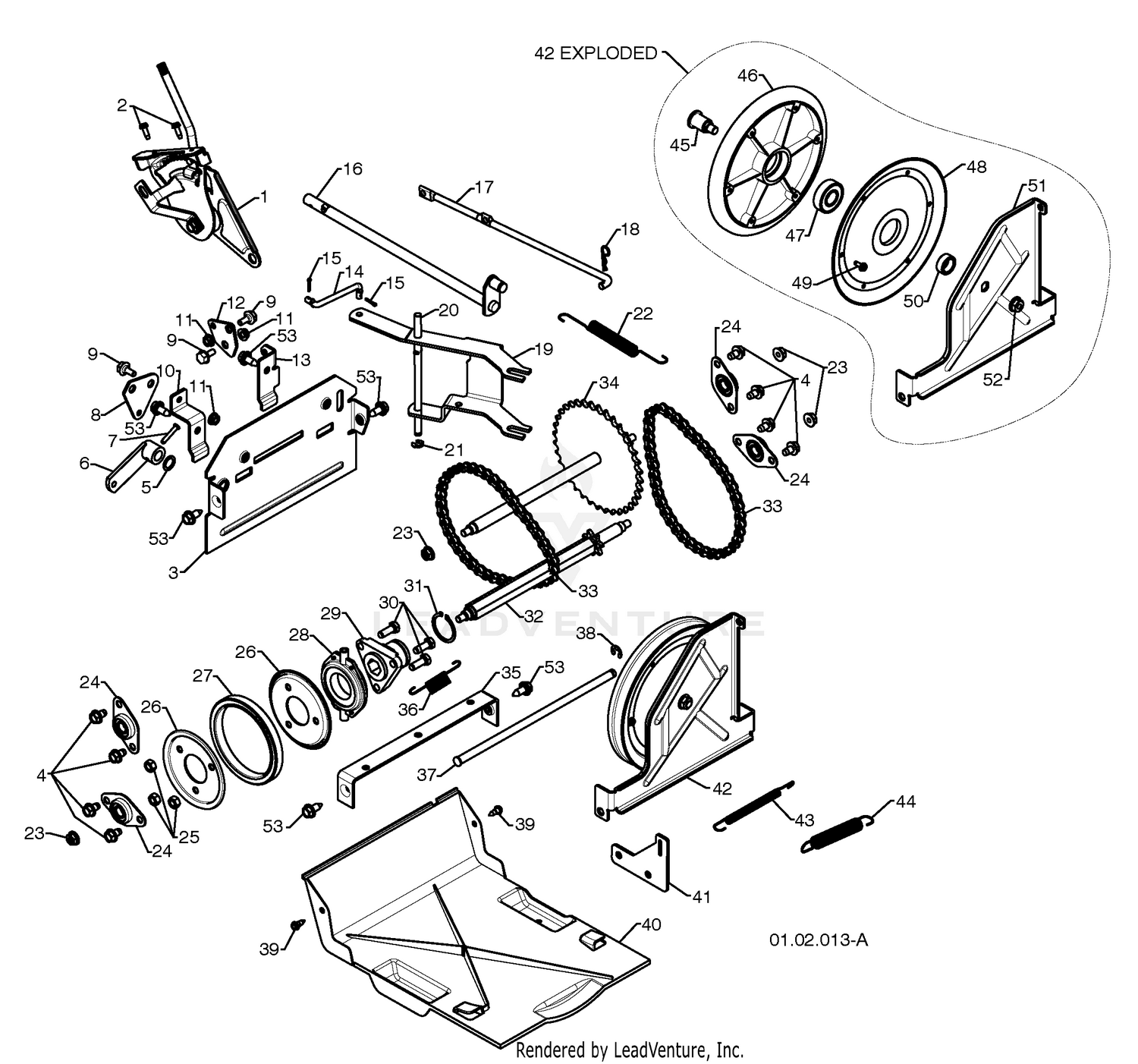

| Ref | Part Number | Description |
|---|
| 1 |
198875 |
SPEED SELECTOR ASSEMBLY Price: Call Us |
| 1 |
32128-33 |
NUT-HF Price: $0.25 |
| 2 |
17501010 |
SCREW 10-24 X .625 Price: Call Us |
| 3 |
2412-74 |
R-CLAMP Price: $2.37 |
| 3 |
402685X428 |
END PLATE Price: Call Us |
| 4 |
100-8387 |
HOSE-FUEL Price: $19.20 |
| 4 |
17490508 |
SCREW 5/16-18 X .50 Price: Call Us |
| 5 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 5 |
57079 |
WASHER Price: Call Us |
| 6 |
100-8294 |
TANK-FUEL Price: $283.68 |
| 6 |
405485 |
CONTROL ARM Price: Call Us |
| 7 |
100-8386 |
FUEL CAP AND GUAGE ASM Price: $138.82 |
| 7 |
198580 |
CLEVIS PIN Price: Call Us |
| 8 |
106-4867-03 |
STRIP-HOLD DOWN, GAS TANK Price: $24.38 |
| 8 |
403097X004 |
SHIFTER PLATE Price: Call Us |
| 9 |
321-6 |
SCREW-HH Price: $0.25 |
| 9 |
402881 |
SHOULDER BOLT Price: Call Us |
| 10 |
3234-28 |
SCREW-HHF Price: $1.59 |
| 10 |
403096 |
X004 SHIFTER BRACKET Price: Call Us 403096 X004 |
| 11 |
104-8914 |
LATCH-BOX, STORAGE Price: $52.49 |
| 11 |
191730 |
NUT 1/4-20 Price: Call Us |
| 12 |
100-7008 |
CAP-TANK, FRESH WATER Price: $32.57 |
| 12 |
402856 |
X004 CLUTCH PLATE Price: Call Us 402856 X004 |
| 13 |
100-8438 |
FRESH WATER TANK ASM Price: $629.92 |
| 13 |
416717X004 |
CLUTCH BRACKET Price: Call Us |
| 14 |
104-8912-03 |
TANK BRACKET ASM This part replaces 104-8912. Price: $300.67 |
| 14 |
187101 |
SHIFTER LINK Price: Call Us |
| 15 |
100-8401-03 |
PLATE-TANK MOUNT Price: $34.71 |
| 15 |
700279 |
RETAINER Price: Call Us |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 16 |
427542 |
CONTROL SHAFT Price: Call Us |
| 17 |
100-8524 |
STRIP-FOAM Price: $13.65 |
| 17 |
402568 |
CLUTCH ROD Price: Call Us |
| 18 |
169675 |
RETAINER Price: Call Us |
| 18 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 19 |
401732 |
SHIFTER YOKE Price: Call Us |
| 20 |
402310 |
PIVOT ROD Price: Call Us |
| 21 |
12000036 |
RETAINER Price: Call Us |
| 22 |
402878 |
RETURN SPRING Price: Call Us |
| 23 |
751153 |
NUT 5/16-18 Price: Call Us |
| 24 |
408981 |
BEARING Price: Call Us |
| 25 |
73930500 |
NUT 5/16-18 Price: Call Us |
| 26 |
198176X479 |
RUBBER WHEEL PLATE Price: Call Us |
| 27 |
179831 |
RUBBER RING Price: Call Us |
| 28 |
175344 |
BEARING Price: Call Us |
| 29 |
178613 |
WHEEL HUB Price: Call Us |
| 30 |
74760514 |
SCREW 5/16-18-.875 Price: Call Us |
| 31 |
12000012 |
RETAINER RING Price: Call Us |
| 32 |
402187 |
SPROCKET SHAFT Price: Call Us |
| 33 |
401619 |
CHAIN Price: Call Us |
| 34 |
417234 |
SPROCKET WELDMENT Price: Call Us |
| 35 |
401984X479 |
SHIFTER BRACKET Price: Call Us |
| 36 |
180135 |
SPRING Price: Call Us |
| 37 |
402652 |
PLATE PIVOT ROD Price: Call Us |
| 38 |
428288 |
E-RING .375 Price: Call Us |
| 39 |
184471 |
SHOULDER SCREW Price: Call Us |
| 40 |
410877 |
BOTTOM PAN Price: Call Us |
| 41 |
413429X479 |
SPRING BRACKET Price: Call Us |
| 42 |
402689 |
DRIVE PLATE ASSEMBLY Price: Call Us |
| 43 |
414557 |
IDLER SPRING Price: Call Us |
| 44 |
178828 |
IDLER SPRING Price: Call Us |
| 45 |
402504X008 |
PULLEY SHAFT Price: Call Us |
| 46 |
401820 |
DRIVE PLATE Price: Call Us |
| 47 |
198791 |
BEARING Price: Call Us |
| 48 |
402393 |
PULLEY HALF Price: Call Us |
| 49 |
17541008 |
SCREW 10-24 X .50 Price: Call Us |
| 50 |
402511 |
SPACER BEARING Price: Call Us |
| 51 |
418894X479 |
SWING PLATE Price: Call Us |
| 52 |
132010 |
NUT 3/8-16 Price: Call Us |
