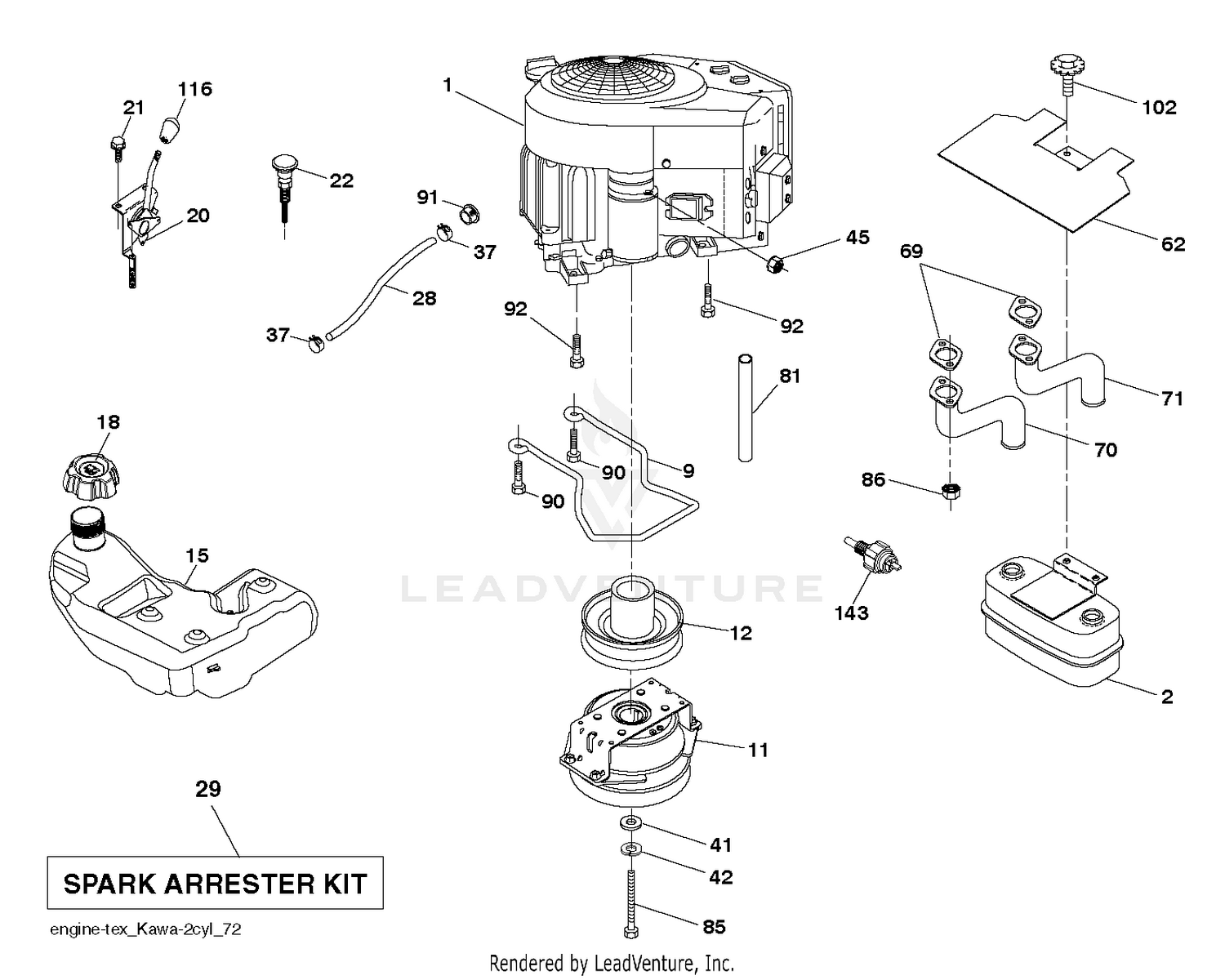

| Ref | Part Number | Description |
|---|
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 9 |
596501502 |
Keepers This part replaces 501832601. Price: $9.99 |
| 10 |
105-3735 |
CONTROL PLATE ASM Price: $167.82 |
| 11 |
587241401 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH01 Price: $229.99 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 15 |
529998404 |
FUEL TANK, 4GAL, 2.25"NECK, 20 This part replaces 590599401. Price: $199.99 |
| 18 |
585124801 |
CAP ASSY FUEL 3" GRAY Price: $17.99 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 20 |
98-9662 |
LEVER-CONTROL, SPEED Price: $72.44 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-9572 |
LEVER-CONTROL, SPEED Price: $47.15 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
105-3788 |
O-RING Price: $2.90 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 60 |
98-9594 |
WASHER-PLAIN Price: $2.49 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
98-9589 |
NUT Price: $1.46 |
| 80 |
98-9658 |
GOVERNOR LEVER ASM Price: $34.84 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606901 |
BOLT.HEX.7/16-20X3.GR5.YELLOW Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 90 |
98-9663 |
LEVER-STOP, ENGINE Price: $13.34 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 100 |
98-7601 |
SEAL-OIL Price: $7.88 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 110 |
98-9472 |
SPRING-RETURN Price: $8.91 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 120 |
98-9664 |
SHAFT-LEVER, STOP Price: $33.92 |
| 130 |
98-9637 |
GASKET Price: $3.98 |
| 140 |
98-7692 |
BOLT Price: $0.92 |
| 143 |
590044401 |
SENSOR.SWITCH.PRESSURE.OIL Price: $29.99 |
| 150 |
99-8348 |
BOLT Price: $0.24 |
| 160 |
98-7654 |
GASKET Price: $8.84 |
| 170 |
105-3710 |
STUD Price: $1.16 |
| 180 |
98-7572 |
NUT Price: $0.32 |
