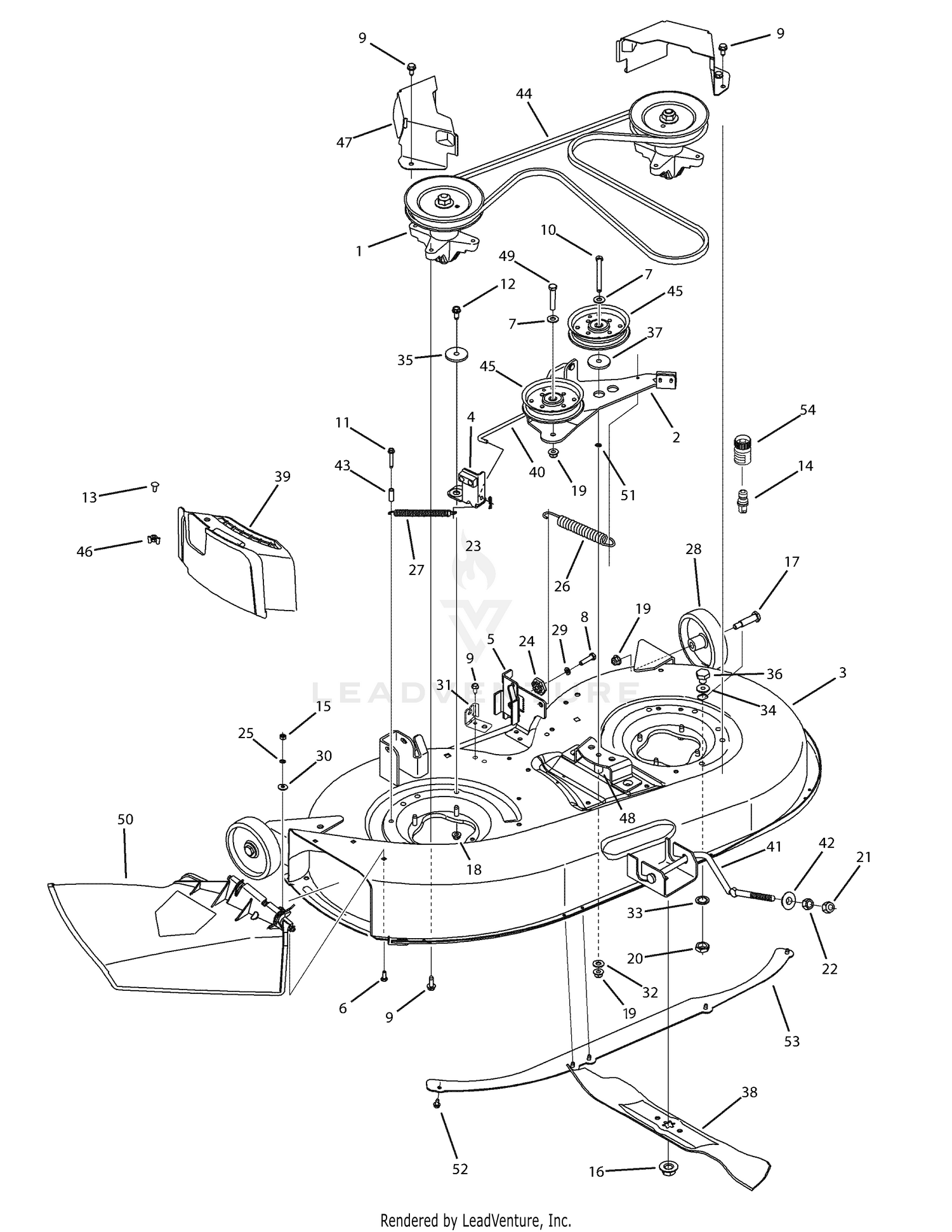

| Ref | Part Number | Description |
|---|
| 1 |
918-04456B |
SPINDLE ASSEMBLY This part replaces 618-04456. Price: $119.59 |
| 4 |
983-04167 |
Deck Brake Assembly This part replaces 683-04167. Price: $41.74 |
| 5 |
683-04228 |
Brkt. Ass’y, Deck, Hanger LH Price: $74.58 |
| 6 |
710-3015 |
Screw, 1/4-20, .75, Gr5 Price: $3.65 |
| 7 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 8 |
710-0528 |
Screw, 5/16-18, 1.250 Price: $3.90 |
| 9 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 10 |
710-3085 |
Screw, 3/8-16, 3.50, Gr5 Price: $3.90 |
| 11 |
710-0778 |
Screw, 1/4-20, 1.500 Price: $3.90 |
| 12 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 15 |
712-3006 |
HEX NUT Price: $4.05 |
| 16 |
712-0417A |
HEX NUT Price: $6.50 |
| 17 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 18 |
712-04063 |
Nut, Flange Lock, 5/16-18, GrF Price: $3.56 |
| 19 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 21 |
712-3083 |
Nut, Hex Lock, 1/2-13, Gr8 Price: $4.05 |
| 22 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 23 |
714-0104 |
Pin, Cot, .072 Dia. x 1.13 Lg Price: $3.90 |
| 24 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-04074. Price: $11.45 |
| 25 |
726-0233 |
Nut, Push, .25 ID x .50 OD Price: $3.93 |
| 26 |
732-04280B |
Spring, Exten. , .75 Dia. x 6.375 Price: $7.18 |
| 27 |
732-04287 |
Spring, Exten. , .50 Dia. x 6.375 Price: $14.19 |
| 29 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 30 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 31 |
783-04740 |
Deck Engagement Cable Bracket Price: $7.35 |
| 32 |
736-0300 |
Washer, Flat, .406 x .875 x .059 Price: $3.93 |
| 35 |
738-04166 |
Spacer, Shoulder, .5000 x .1475 Price: $5.48 |
| 37 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 38 |
942-0616A |
Blades This part replaces 742-0616A. Price: $29.15 |
| 40 |
747-04379A |
Control Rod, Brake Price: $19.97 |
| 41 |
747-04269A |
Deck Rod, Front Adjustable Price: $25.65 |
| 42 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 43 |
750-0566A |
Spacer, .260 x .372 x 1.030 Price: $9.17 |
| 44 |
954-04060C |
Belt, V Type, A Sec X 96.5 This part replaces 754-04060B. Price: $46.63 |
| 45 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129. Price: $33.06 |
| 47 |
783-04327B |
Cover, Belt, 6.00 Dia. Price: $20.21 |
| 48 |
750-04446 |
Spacr, 3/8 ID x .68 OD x 1.46 Lg. Price: $5.94 |
| 49 |
710-0347 |
Screw, 3/8-16 x 1.75 Price: $4.39 |
| 50 |
631-05229 |
CHUTE ASSEMBLY This part replaces 731-1032B. Price: $71.37 |
| 51 |
712-0229 |
Nut, Push, 3/8 Price: $3.14 |
