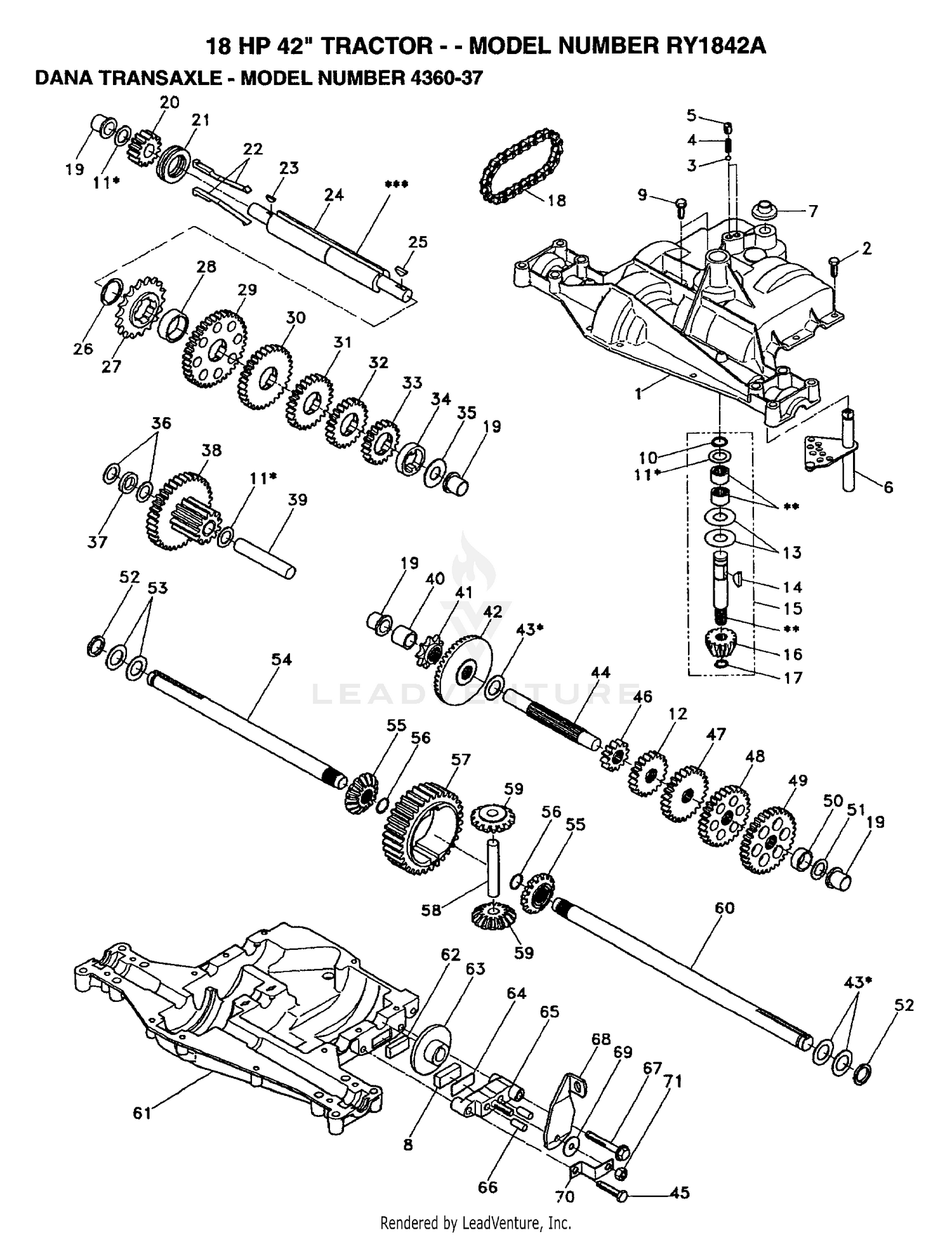

| Ref | Part Number | Description |
|---|
| 1 |
3865-A |
HOUSING UPPER Price: Call Us |
| 2 |
1919 |
SCREW Price: Call Us |
| 2 |
92-5655 |
TUBE-CANOPY Price: $15.47 |
| 3 |
5112 |
BALL, DETENT Price: Call Us |
| 3 |
58-3930 |
BUSHING-OILITE Price: $15.24 |
| 4 |
3626 |
SPRING, DETENT Price: Call Us |
| 4 |
58-5330 |
SPACER-HINGE, CANOPY Price: $21.23 |
| 5 |
3623 |
SCREW, SET Price: Call Us |
| 5 |
58-5350 |
SPACER-HINGE, CANOPY Price: $19.88 |
| 6 |
4601 |
KIT SHIFTER ASSY Price: Call Us |
| 6 |
58-1970-01 |
PLATE-HINGE, LEFT Price: $199.89 |
| 7 |
5024 |
BOOT, SHIFTER Price: Call Us |
| 7 |
58-1980-01 |
PLATE-HINGE, RIGHT Price: $199.89 |
| 8 |
3907 |
PUCK, FRICTION Price: Call Us |
| 8 |
86-6130 |
BALL-STUD Price: $7.46 |
| 9 |
5131 |
SCREW TAPPING WITH SEALER Price: Call Us |
| 9 |
92-6086 |
REAR SCREEN ASM Price: $2,609.76 |
| 10 |
1099 |
RING RETAINING Price: Call Us |
| 10 |
92-5253 |
STRIP-SEALING Price: $59.20 |
| 11 |
4689 |
ASSY, KIT, SHIM .625 SHAFT Price: Call Us |
| 11 |
58-3910 |
PIN-HINGE, CANOPY Price: $70.69 |
| 12 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 12 |
3707 |
GEAR SPUR, 15 TEETH Price: Call Us |
| 13 |
3876 |
WASHER, PLAIN .632 X 1.38 X .046 Price: Call Us |
| 13 |
77-3620 |
KNOB-RETAINER Price: $15.13 |
| 14 |
1374 |
KEY WOODRUFF #9 Price: Call Us |
| 15 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 15 |
4171 |
ASSY KIT INPUT SHAFT Price: Call Us |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
3725 |
PINION BEVEL 14 TEETH Price: Call Us |
| 17 |
3624 |
RING, RETAINING Price: Call Us |
| 17 |
88-6760 |
SPRING-GAS Price: $143.68 |
| 18 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
3625 |
CHAIN, 24 PITCHES Price: Call Us |
| 19 |
105-3330-03 |
BAFFLE-BODY, LOWER Price: $92.45 |
| 19 |
1542 |
BEARING, FLANGE Price: Call Us |
| 20 |
3250-25 |
SCREW-PPH Price: $0.23 |
| 20 |
3773 |
GEAR SPUR, 14 TEETH Price: Call Us |
| 21 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 21 |
3631 |
COLLAR CLUTCH Price: Call Us |
| 22 |
5266 |
KEY CLUTCH Price: Call Us |
| 22 |
58-5380 |
LATCH-DRAW Price: $43.60 |
| 23 |
1369 |
KEY WOODRUFF #3 Price: Call Us |
| 23 |
58-7070-03 |
SPACER-LATCH, RH Price: $17.58 |
| 24 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
3883 |
SHAFT INTERMEDIATE Price: Call Us |
| 25 |
1375 |
KEY, WOODRUFF, #61 Price: Call Us |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
3250-31 |
SCREW-PPH Price: $0.25 |
| 26 |
3627 |
RING, RETAINING Price: Call Us |
| 27 |
3830 |
SPROCKET, 18 TEETH Price: Call Us |
| 27 |
68-6040 |
BRACKET Price: $13.03 |
| 28 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 28 |
3841 |
SPACER Price: Call Us |
| 29 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 29 |
3786 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 30 |
3785 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 31 |
106-7074 |
CANOPY-FRONT Price: $1,980.37 |
| 31 |
3867 |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 32 |
33024-00 |
NUT-LOCK, NI This part replaces 48-9510. Price: $0.75 |
| 32 |
3783 |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 33 |
3869 |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 33 |
92-5652-03 |
BRACKET Price: $10.46 |
| 34 |
33114-025 |
SCREW-HH Price: $0.70 |
| 34 |
5202 |
GEAR, SPUR, 19 TEETH Price: Call Us |
| 35 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 35 |
3628 |
WASHER, PLAIN .640 X 1.37 X .061 Price: Call Us |
| 36 |
1423 |
WASHER, PLAIN .632 X 1.00 X .026 Price: Call Us |
| 36 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 37 |
105-3325 |
CENTER CANOPY ASM Price: $1,680.34 |
| 37 |
3422 |
SPACER .630 X 1.00 X .169 Price: Call Us |
| 38 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 38 |
4286 |
ASSY GEAR COMB 12&35 TEETH Price: Call Us |
| 39 |
3967 |
SHAFT, IDLER Price: Call Us |
| 39 |
92-5678 |
FOAM-HOOD, TOP Price: $239.26 |
| 40 |
3901 |
SPACER .635 X .875 X .755 Price: Call Us |
| 40 |
92-5679 |
FOAM-HOOD, FRONT Price: $166.50 |
| 41 |
3645 |
SPROCKET, 9 TEETH Price: Call Us |
| 41 |
92-5680 |
FOAM-HOOD, RH Price: $187.22 |
| 42 |
3589 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 42 |
92-5681 |
FOAM-HOOD, LH Price: $187.22 |
| 43 |
4691 |
ASSY, KIT, SHIM .750 SHAFT Price: Call Us |
| 43 |
92-5672-03 |
SUPPORT-FOAM, CANOPY Price: $198.05 |
| 44 |
3882 |
SHAFT, DRIVE Price: Call Us |
| 44 |
92-5673-03 |
SUPPORT-FOAM, FRONT Price: $46.11 |
| 45 |
3724 |
SCREW TAPPING Price: Call Us |
| 45 |
92-6060 |
STRIP-SEALING Price: $59.20 |
| 46 |
3646 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 46 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 47 |
322-4 |
SCREW-HH Price: $0.35 |
| 47 |
3866 |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 48 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 48 |
3719 |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 49 |
321-2 |
SCREW-HH Price: $2.79 |
| 49 |
3868 |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 50 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 50 |
3683 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 51 |
1145 |
WASHER, PLAIN .632 X 1.00 X .060 Price: Call Us |
| 52 |
5130 |
WASHER, NEOPRENE Price: Call Us |
| 53 |
3184 |
WASHER, PLAIN .758 X 1.25 X .031 Price: Call Us |
| 54 |
104-5230-03 |
BRACKET-FUEL Price: $59.33 |
| 54 |
3880 |
AXLE LEFT HAND Price: Call Us |
| 55 |
3871 |
GEAR MITER 15 TEETH Price: Call Us |
| 55 |
94-8226-03 |
BRACKET-CLEANER, AIR Price: $55.22 |
| 56 |
32122-42 |
SCREW Price: $1.69 |
| 56 |
3656 |
RING, RETAINING Price: Call Us |
| 57 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 57 |
3839 |
GEAR, SPUR, 32 TEETH Price: Call Us |
| 58 |
321-3 |
SCREW-HH Price: $0.28 |
| 58 |
3919 |
SHAFT, CROSS Price: Call Us |
| 59 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 59 |
3726 |
GEAR, MITER, 15 TEETH Price: Call Us |
| 60 |
3881 |
AXLE, R.H. Price: Call Us |
| 61 |
3864-B |
HOUSING LOWER Price: Call Us |
| 62 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 62 |
3920 |
PUCK, FRICTION Price: Call Us |
| 63 |
3276 |
DISC, BRAKE Price: Call Us |
| 63 |
98-5398 |
LATCH Price: $32.53 |
| 64 |
3758 |
SPACER Price: Call Us |
| 64 |
99-8970 |
KEY-LATCH, HOOD Price: $15.13 |
| 65 |
3916 |
JAW, BRAKE Price: Call Us |
| 65 |
98-9321 |
RING-KEY Price: $1.80 |
| 66 |
100-6574 |
DECAL-WARNING Price: $15.80 |
| 66 |
3843 |
PIN, DOWEL Price: Call Us |
| 67 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 67 |
5120 |
SCREW, SELF-TAPPING Price: Call Us |
| 68 |
2412-109 |
CLIP-J Price: $3.82 |
| 68 |
3768 |
LEVER, ACTUATING Price: Call Us |
| 69 |
3760 |
WASHER, PLAIN .321 X 1.00 X .055 Price: Call Us |
| 70 |
3917 |
BRACKET, ANTI-ROTATION Price: Call Us |
| 71 |
3847 |
LOCKNUT 5/16-24 Price: Call Us |
