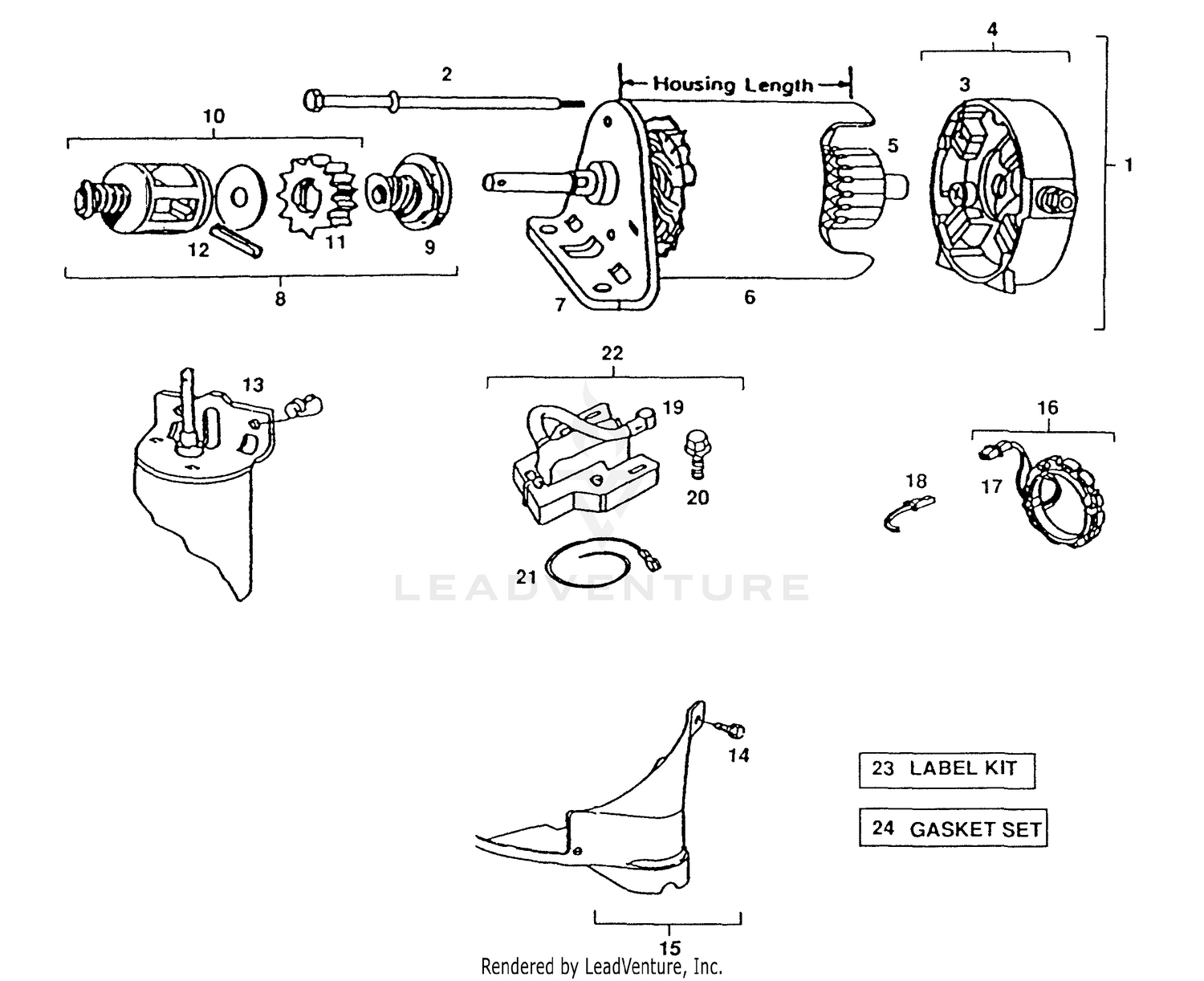

| Ref | Part Number | Description |
|---|
| 1 |
394805 |
Motor and Drive Assembly 12V, 4 3/8" Housing Length Price: Call Us |
| 1 |
98-9589 |
NUT Price: $1.46 |
| 2 |
94003 |
Thru Bolt Assembly Price: Call Us |
| 2 |
98-9594 |
WASHER-PLAIN Price: $2.49 |
| 3 |
395538 |
Brush Assembly Price: Call Us |
| 3 |
98-9662 |
LEVER-CONTROL, SPEED Price: $72.44 |
| 4 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 5 |
390837 |
Armature Assembly Price: Call Us |
| 5 |
98-9572 |
LEVER-CONTROL, SPEED Price: $47.15 |
| 6 |
393825 |
Housing Assembly Price: Call Us |
| 6 |
98-9371 |
O-RING Price: $2.56 |
| 7 |
394857 |
Drive End Cap Assembly Price: Call Us |
| 7 |
98-7572 |
NUT Price: $0.32 |
| 8 |
490421 |
Drive Assembly Price: Call Us |
| 8 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 9 |
398003 |
Clutch Assembly Price: Call Us |
| 9 |
98-9661 |
CONTROL PLATE ASM Price: $167.65 |
| 10 |
490467 |
Retainer and Pin Price: Call Us |
| 10 |
98-9362 |
STUD Price: $0.66 |
| 11 |
280104 |
Gear Price: Call Us |
| 11 |
98-9658 |
GOVERNOR LEVER ASM Price: $34.84 |
| 12 |
94288 |
Roll Pin Price: Call Us |
| 12 |
98-9637 |
GASKET Price: $3.98 |
| 13 |
93535 |
Screw, Sem Price: Call Us |
| 13 |
98-9664 |
SHAFT-LEVER, STOP Price: $33.92 |
| 14 |
93984 |
Screw, Sem Price: Call Us |
| 14 |
98-9472 |
SPRING-RETURN Price: $8.91 |
| 15 |
98-7692 |
BOLT Price: $0.92 |
| 16 |
393474 |
Stator, Alternator (Dual Circuit) Price: Call Us |
| 16 |
98-7601 |
SEAL-OIL Price: $7.88 |
| 17 |
393456 |
Diode and Connector Assembly (Dual Circuit) Price: Call Us |
| 17 |
98-9663 |
LEVER-STOP, ENGINE Price: $13.34 |
| 18 |
393362 |
Alternator Harness Assembly (Dual Circuit) Price: Call Us |
| 18 |
99-8348 |
BOLT Price: $0.24 |
| 19 |
221798 |
Terminal, Ignition Price: Call Us |
| 20 |
93381 |
Screw, Armature Mounting Sem Price: Call Us |
| 21 |
398808 |
Wire, Ground Price: Call Us |
| 22 |
492341 |
Armature, Magneto Price: Call Us |
| 23 |
491252 |
Decal, Label Kit Price: Call Us |
