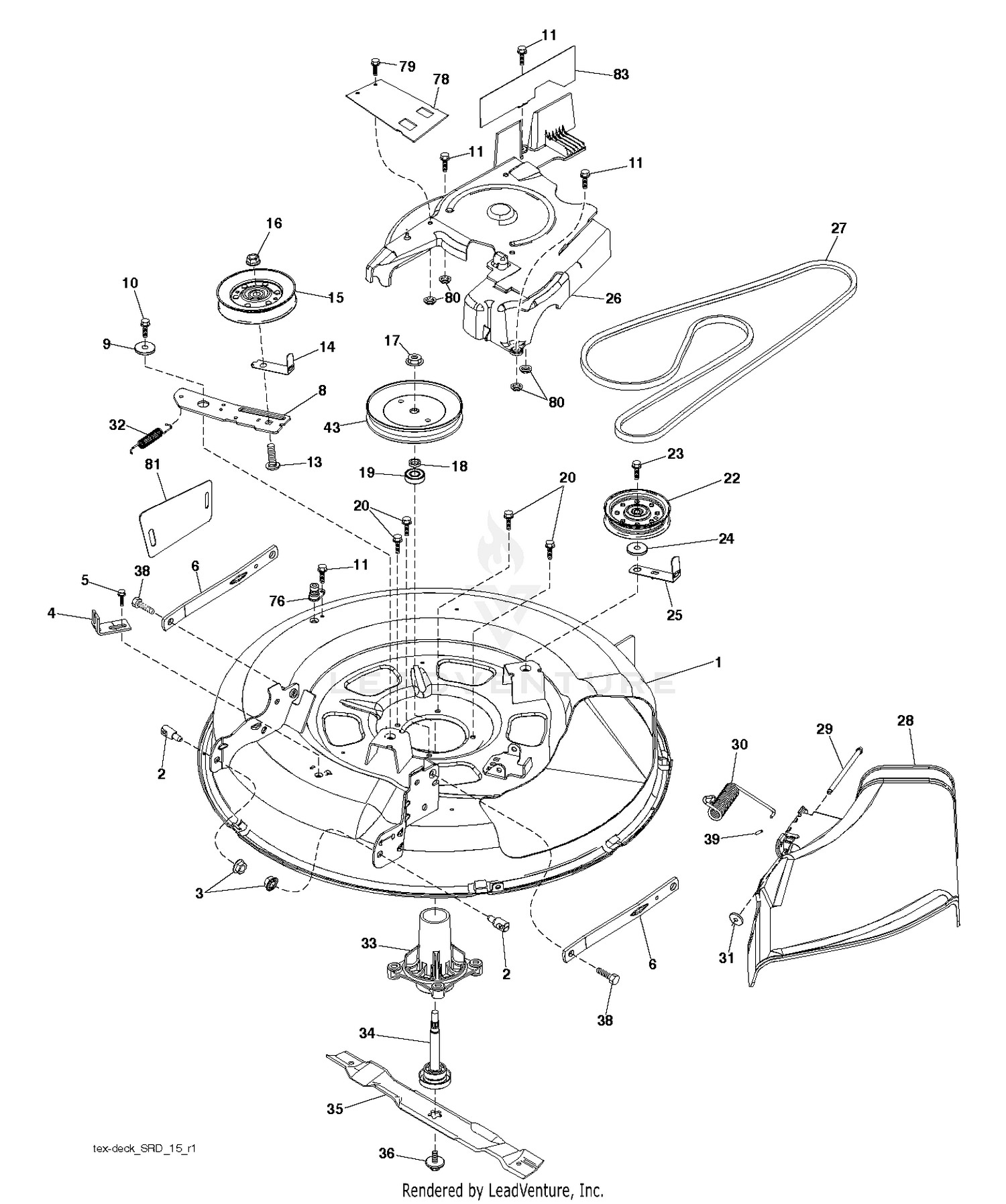

| Ref | Part Number | Description |
|---|
| 1 |
532419272 |
Price: $259.99 |
| 2 |
104-3446 |
HOSE-OUTLET, AIR Price: $148.73 |
| 2 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 3 |
3210-5 |
SCREW-HH Price: $0.54 |
| 3 |
873900500 |
NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 4 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 4 |
532417645 |
Price: $2.99 |
| 5 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 6 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 6 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $4.99 |
| 7 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
3210-8 |
SCREW-HH Price: $1.02 |
| 8 |
532420252 |
Price: $7.99 |
| 9 |
32152-5 |
NUT-HEX Price: $0.54 |
| 9 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 10 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 10 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 11 |
104-3444 |
HOSE-INLET, AIR Price: $147.47 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.49 |
| 12 |
322-6 |
SCREW-HH Price: $0.45 |
| 13 |
136-4480 |
AIR CLEANER ASM This part replaces 104-3427. Price: $287.47 |
| 13 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 15 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
532146763 |
PULLEY.IDLER.4.25 Price: $14.99 |
| 16 |
27-6590 |
SPACER-COUPLING, RUBBER Price: $13.38 |
| 16 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 17 |
27-4370 |
HUB-PUMP Price: $70.04 |
| 17 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 18 |
3241-6 |
SCREW-SQH Price: $4.80 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 19 |
104-3401-03 |
DRIVE SHAFT ASM Price: $64.08 |
| 19 |
532110485 |
BEARING Price: $7.99 |
| 20 |
532173984 |
SCREW, WASHER HEAD Price: $2.99 |
| 22 |
532193198 |
PULLEY.IDLER.FLAT.UNPLATED Price: $22.99 |
| 23 |
817490628 |
SCREW LT Price: $3.99 |
| 24 |
819132012 |
WASHER Price: $2.99 |
| 25 |
529311701 |
KEEPER-BELT-BLACK This part replaces 532420253. Price: $2.99 |
| 26 |
532432466 |
This part replaces 532420255. Price: $27.99 |
| 27 |
532419271 |
V-BELT.DRIVE.MOWER.30" Price: $39.99 |
| 28 |
532417344 |
SHIELD.DEFLECT.MWR.30S.BLACK Price: $33.99 |
| 29 |
532420895 |
Price: $2.99 |
| 30 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 31 |
532110452 |
NUT PUSH M Price: $1.99 |
| 32 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $5.99 |
| 33 |
532187281 |
HOUSING MANDREL Price: $20.99 |
| 34 |
532192870 |
MANDREL ASM This part replaces 532192872. Price: $30.99 |
| 35 |
532419273 |
BLADE, MULCH.LRV30 Price: $11.99 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 38 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 39 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 43 |
525568001 |
PULLEY, MANDREL 6.5" BLK This part replaces 532416877. Price: $23.99 |
| 76 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 78 |
532422566 |
Price: $5.99 |
| 79 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 80 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 81 |
532425367 |
Price: $4.99 |
| 83 |
532430315 |
Price: $9.99 |
