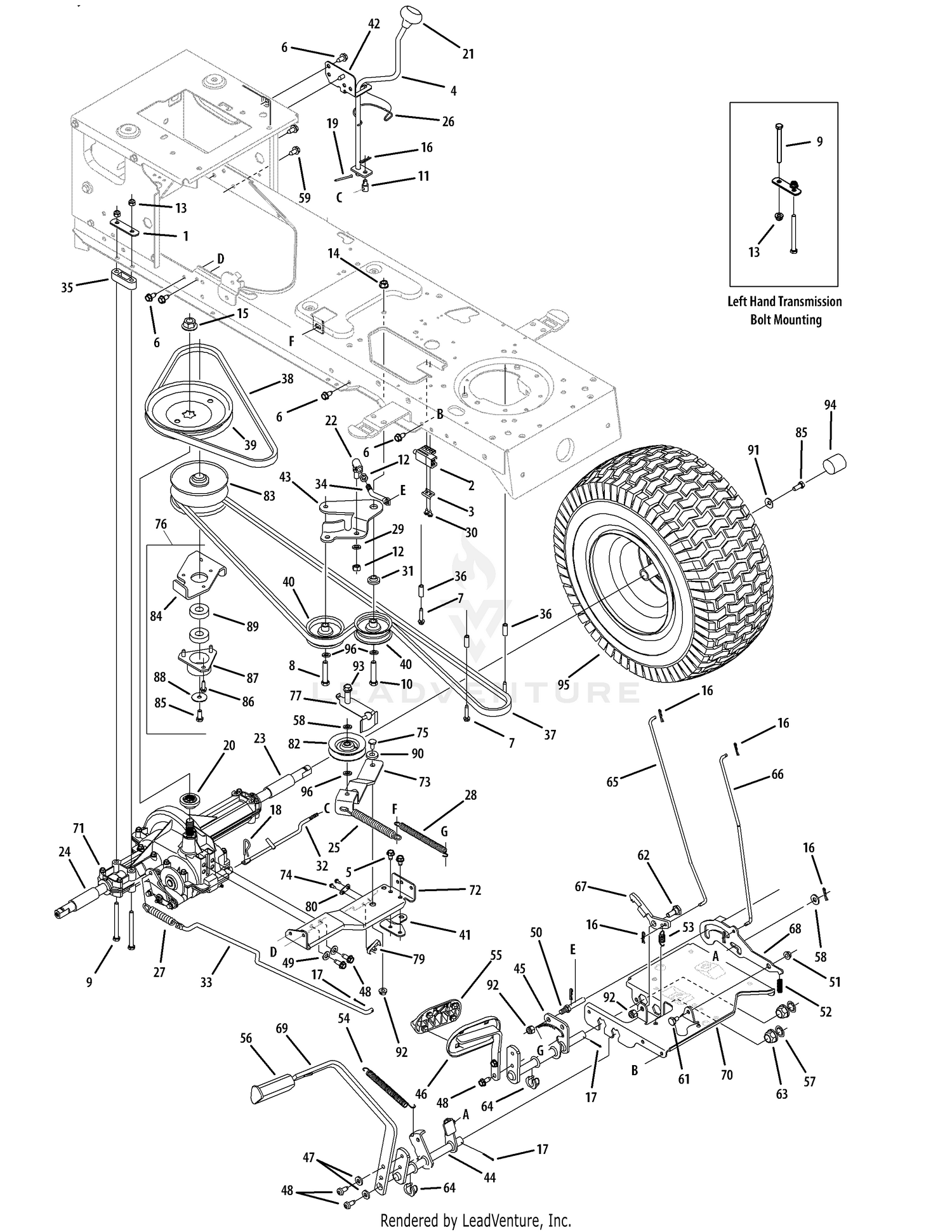

| Ref | Part Number | Description |
|---|
| 1 |
17840-0637 |
Mounting Bracket, Trans-axle Price: $10.12 |
| 2 |
925-04039 |
Switch, Interlock Price: $22.73 |
| 3 |
17962 |
Plate, Switch Price: $4.36 |
| 4 |
647-04020 |
Lever Assembly, Shift Not Available Price: |
| 5 |
710-0607 |
Screw, 5/16-18, 0.500 Price: $6.06 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-0809 |
Screw, 1/4-20, 1.250 Price: $6.37 |
| 8 |
710-1007 |
Screw, Sems, 3/8-16, 1.500 Price: $5.71 |
| 9 |
710-1266 |
Screw, 5/16-18, 3.50, Gr5 Price: $8.66 |
| 10 |
710-3144 |
Screw, 3/8-16, 2.00, Gr5 Price: $4.02 |
| 11 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 12 |
712-0241 |
Nut, Hex, 3/8-24, Gr5 Price: $3.86 |
| 13 |
712-04063 |
Nut, Flange Lock, 5/16-18, GrF Price: $3.56 |
| 14 |
912-0431 |
Nut, Flange Lock, 3/8-16, GrF Price: $4.29 |
| 15 |
712-0700 |
Nut, Flange, 9/16-18, Gr2 Price: $10.12 |
| 16 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 17 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 18 |
914-0209 |
Cotter .Pin, Internal,.125 Dia. Price: $3.22 |
| 19 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 20 |
718-04407 |
Pulley Hub, 5/8 Spline Price: $11.11 |
| 21 |
720-04028 |
Knob, Shift Price: $9.44 |
| 22 |
923-3018 |
Ball Joint Price: $15.50 |
| 23 |
731-04602 |
Sleeve,.758 x.821 x 3.3125 Price: $5.62 |
| 24 |
731-04604 |
Sleeve,.758 x.821 x 2.4375 Price: $5.78 |
| 25 |
932-04370A |
Spring, Extension,.62 Dia x 6.12 Price: $11.40 |
| 26 |
732-0525 |
Spring Clip, Shifter Price: $8.93 |
| 27 |
732-0716D |
Spring, Extension,.59 OD x 4.00 Price: $11.49 |
| 28 |
732-0963 |
Spring, Extension,.50 Dia x 6.37 Price: $8.91 |
| 29 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33 |
| 30 |
910-0224 |
Screw, #10-16,.50 Price: $3.19 |
| 31 |
738-0372B |
Spacer, Shoulder, 1.00 x.38 x.38 Price: $8.78 |
| 32 |
747-04146C |
Rod, Shift Price: $20.87 |
| 33 |
747-04164 |
BRAKE ROD Not Available Price: |
| 34 |
747-1127 |
IDLER ADJUSTMENT ROD Not Available Price: |
| 35 |
948-0334 |
Spacer,.68 Price: $9.87 |
| 36 |
750-0566A |
Spacer,.260 x.372 x 1.030 Price: $9.17 |
| 37 |
954-0467A |
V Belt, 5L, 90.93 Poly This part replaces 954-0467. Price: $46.63 |
| 38 |
954-0468 |
Belt, V-Type Price: $28.07 |
| 39 |
956-04002 |
Pulley, V-Type, 7.25 Dia. Price: $24.33 |
| 40 |
756-04224 |
Idler Pulley, Flat 2.75 OD Price: $24.80 |
| 41 |
783-04283A |
SHIFT BRACKET Not Available Price: |
| 42 |
783-04360 |
SHIFT BRACKET F-N-R Not Available Price: |
| 43 |
783-04442-0637 |
Idler Bracket, Center Double Price: $31.46 |
| 44 |
647-04100-0637 |
BRAKE CONTROL ASSEMBLY (POWDER BLACK) Not Available Price: |
| 45 |
647-0032A-0637 |
SPEED CONTROL ASSEMBLY (POWDER BLACK) Not Available Price: |
| 46 |
683-0266 |
CONTROL PEDAL ASSEMBLY Not Available Price: |
| 47 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 48 |
710-1260A |
Screw,5/16-18, 0.750 Price: $3.34 |
| 49 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 50 |
711-04159B |
Pin, 3/8-16 x 2.68 Price: $6.75 |
| 51 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 52 |
732-0335 |
SPRING Not Available Price: |
| 53 |
732-0955 |
Spring, Extension,.50 OD x 1.41 Price: $8.34 |
| 54 |
732-0963 |
Spring, Extension,.50 OD x 6.37 Price: $8.91 |
| 55 |
735-0662 |
Pad Price: $10.46 |
| 56 |
735-3049A |
Pad, Brake Price: $11.30 |
| 57 |
736-0187 |
Washer, Flat,.64 x 1.24 x.06, Ht Price: $4.02 |
| 58 |
736-0262 |
Washer, Flat,.385 x.870 x.092 Price: $3.66 |
| 59 |
710-04598 |
Hex Screw Price: $3.50 |
| 61 |
938-0155 |
Screw, Shoulder.437 Dia x.162 Price: $6.01 |
| 62 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 63 |
941-0225 |
Bearing, Hex Flange Price: $6.55 |
| 64 |
741-3065B |
Split Bearing, Hex Flange Price: $7.45 |
| 65 |
747-04093A |
LOCK CONTROL BRAKE ROD Not Available Price: |
| 66 |
747-04096 |
CRUISE CONTROL ROD Not Available Price: |
| 67 |
748-04039C |
CRUISE LATCH Not Available Price: |
| 68 |
783-0732A |
LOCKOUT BRACKET Not Available Price: |
| 69 |
747-04641A-0637 |
BRAKE PEDAL (POWDER BLACK) Not Available Price: |
| 70 |
783-04612-0637 |
Bracket, Steering Support Price: $78.74 |
| 71 |
618P09815 |
TRANSAXLE This part replaces 918-04566. Price: $398.09 |
| 72 |
683-04287 |
TRANSMISSION BRACKET Not Available Price: |
| 73 |
783-05904 |
Bracket, Idler This part replaces 783-05904-0637. Price: $19.76 |
| 74 |
710-0227 |
Screw, #8-18 x.50 Price: $3.90 |
| 75 |
710-3005 |
Hex Screw, 3/8-16 x 1.25 Price: $3.61 |
| 76 |
918-04423A |
Variable Speed Pulley Assembly Price: $155.69 |
| 77 |
732-1013A |
Belt Guard Price: $10.17 |
| 79 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 80 |
926-0320 |
Plate, Insulator Price: $6.01 |
| 82 |
756-04324 |
Idler Pulley, V-Type, 5L x 3.06 Price: $26.15 |
| 83 |
656P05011 |
VARIABLE SPEED PULLEY (4.75 OD) This part replaces 956-04015. Price: $90.80 |
| 84 |
683-04296 |
Bracket, Pulley Price: $22.73 |
| 85 |
710-0627 |
Screw, 5/16-24,.750 Price: $3.68 |
| 86 |
710-0778 |
Screw, 1/4-20, 1.500 Price: $3.90 |
| 87 |
718-04261 |
Cup, Bearing Price: $18.82 |
| 88 |
736-0362 |
Washer, Flat Price: $3.93 |
| 89 |
941-0600 |
BALL BEARING This part replaces 941-0124. Price: $23.34 |
| 90 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 91 |
736-0242 |
Washer, Bell,.340 x.872 x.060 Price: $3.75 |
| 92 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 93 |
710-06045 |
SCREW 3/8-16 X 2.25 GR5 This part replaces 710-04467. Price: $4.69 |
| 94 |
731-2290B |
HUB CAP This part replaces 731-2290A. Price: $3.82 |
| 95 |
634-0104-0911 |
Wheel Assy Comp, 20 x 8 x 8 Price: $127.19 |
