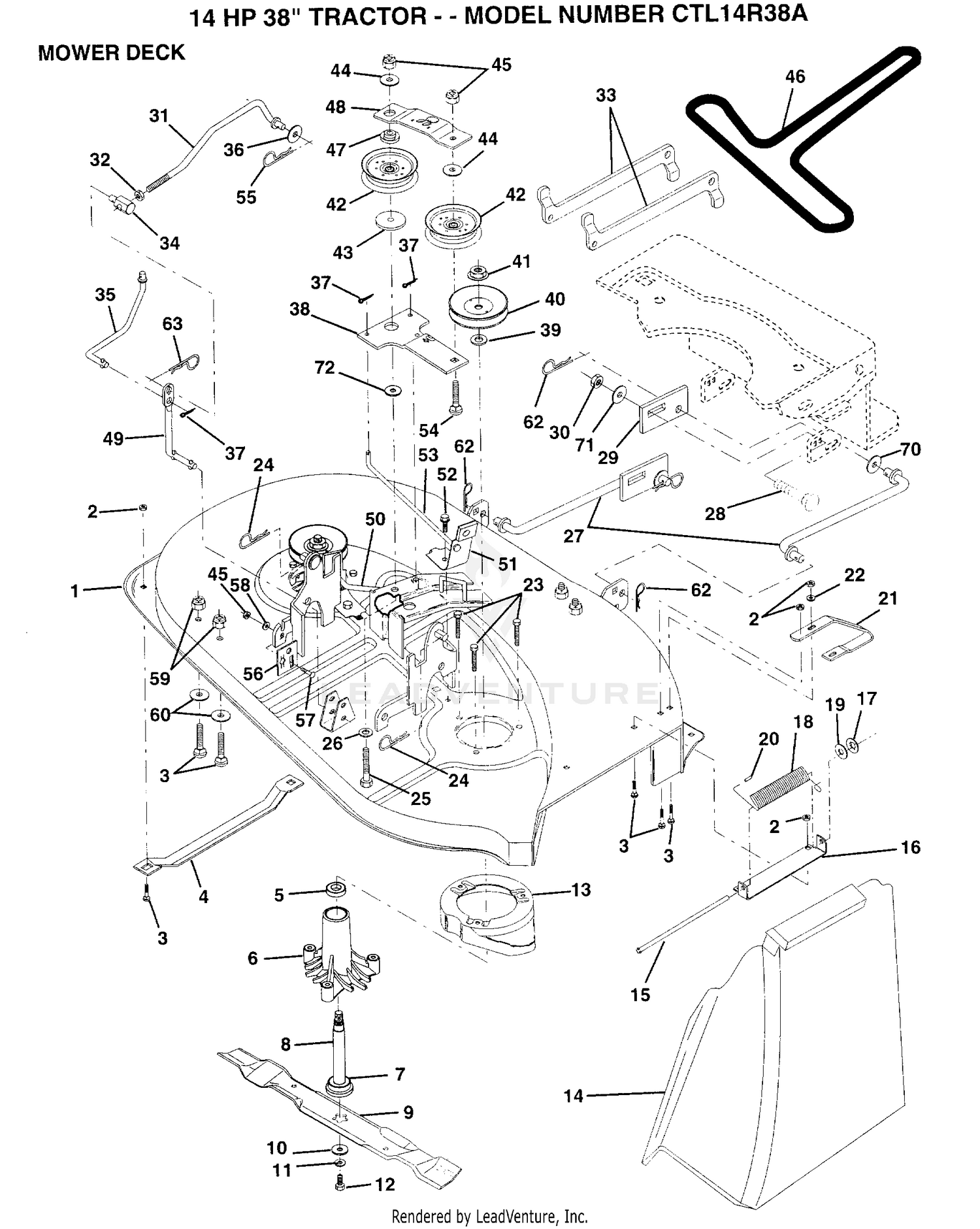

MOWER DECK
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 142830 | MOWER.WELD.LR.38 Price: Call Us |
| 1 | E7JL-8600-AA | Fan Price: Call Us |
| 2 | 73800500 | NUT Price: Call Us |
| 2 | E5JL-8N603-AA | Strap-Fan Price: Call Us |
| 3 | 72140506 | BOLT Price: Call Us |
| 3 | N605905-S2 | Bolt Price: Call Us |
| 4 | 7631J | RUNNER-LH M Price: Call Us |
| 4 | E9JL-8620-A2 | Belt Price: Call Us |
| 5 | 110485X | BEARING Price: Call Us |
| 5 | F1JL-8509-AC | Pulley-Water Pump, 2 Groove Price: Call Us |
| 6 | 128774 | HSG ASM MANDREL Price: Call Us |
| 6 | D7JL-8594-AA | Vertical Water Outlet Connection ASM Price: Call Us |
| 7 | 129895 | BEARING.BALL Price: Call Us |
| 7 | D1FZ-8255-B | Gasket Price: Call Us |
| 8 | 137645 | SUB= 137646 Price: Call Us |
| 8 | E602187-S72 | Bolt Price: Call Us |
| 9 | E630173-S71M | Lockwasher Price: Call Us |
| 10 | 140296 | WASHER.HARD.BLADE Price: Call Us |
| 10 | D4PZ-8575-A | Thermostat Price: Call Us |
| 11 | 10030600 | SUB= 10040600 Price: Call Us |
| 11 | 92BX-8591-AA | Pump-Water Price: Call Us |
| 12 | 850857 | BLADE BOLT Price: Call Us |
| 12 | 89BM-8507-AA | Gasket-Water Pump Price: Call Us |
| 13 | 136929 | SUB= 140329 Price: Call Us |
| 13 | E600113-S72 | Bolt Price: Call Us |
| 14 | 106736X | DEFLECTOR-SHLD T Price: Call Us |
| 14 | E832108-S71M | Lockwasher Price: Call Us |
| 15 | 106735X | ROD-HINGE T Price: Call Us |
| 15 | E9JL-8548-CA | By-Pass Hose Price: Call Us |
| 16 | 137607 | BRKT DEFLECTOR Price: Call Us |
| 16 | 383522-S | Hose Clamp Price: Call Us |
| 17 | 110452X | NUT PUSH M Price: Call Us |
| 17 | E6JL-8A574-AA | Plug-M22 Price: Call Us |
| 18 | 123713X | SPRING TORSION Price: Call Us |
| 18 | C9AZ-9C492-A | Cap-Water Outlet Nipple Price: Call Us |
| 19 | 19111016 | WASHER Price: Call Us |
| 20 | 105304X | CAP-SLEEVE LT Price: Call Us |
| 21 | 128772 | RUNNER RH Price: Call Us |
| 22 | 19111216 | WASHER M Price: Call Us |
| 23 | 17580520 | BOLT.5/16-18X1.25 Price: Call Us |
| 24 | 4939M | SUB= 85902 Price: Call Us |
| 25 | 74600636 | BOLT Price: Call Us |
| 26 | 19131612 | WASHER GT Price: Call Us |
| 28 | 72140608 | SUB= 72110608 Price: Call Us |
| 29 | 139757 | PLATE SLIDE LINK Price: Call Us |
| 30 | 73800600 | NUT Price: Call Us |
| 31 | 140915 | ROD.CLUTCH.PRIM Price: Call Us |
| 32 | 73350600 | NUT Price: Call Us |
| 33 | 132559 | SUSP ARM REAR Price: Call Us |
| 34 | 133604 | TRUNNION Price: Call Us |
| 35 | 132554 | CLUTCH ROD SEC Price: Call Us |
| 36 | 19131316 | WASHER Price: Call Us |
| 37 | 76020312 | SUB= 3145 Price: Call Us |
| 38 | 133840 | IDLER ARM ASSY Price: Call Us |
| 39 | 129963 | WASHER Price: Call Us |
| 40 | 129206 | SUB= 153532 Price: Call Us |
| 41 | 137266 | SUB= 139729 Price: Call Us |
| 42 | 121316X | PULLEY IDLER Price: Call Us |
| 43 | 122052X | SPACER RETAINER Price: Call Us |
| 44 | 19131612 | WASHER GT Price: Call Us |
| 45 | 73800600 | NUT Price: Call Us |
| 46 | 126520X | V BELT Price: Call Us |
| 47 | 133502 | RETAINER SPACER Price: Call Us |
| 48 | 133503 | IDLER ARM STIFF Price: Call Us |
| 49 | 133551 | PIVOT ROD Price: Call Us |
| 50 | 131289 | BRAKE ROD LH Price: Call Us |
| 51 | 130840 | BRAKE ASM Price: Call Us |
| 52 | 17490512 | SCREW Price: Call Us |
| 53 | 131288 | BRAKE ROD RH Price: Call Us |
| 54 | 72110614 | BOLT Price: Call Us |
| 55 | 4921H | SPRING.RETAINER Price: Call Us |
| 56 | 136782 | PLATE ADJ LINK LH Price: Call Us |
| 57 | 72140608 | SUB= 72110608 Price: Call Us |
| 58 | 19131212 | WASHER T Price: Call Us |
| 59 | 73800500 | NUT Price: Call Us |
| 60 | 19111112 | WASHER.34X.68X16 Price: Call Us |
| 61 | 72140506 | BOLT Price: Call Us |
| 62 | 3146R | RETAINER.SPRING Price: Call Us |
| 63 | 4497H | RETAINER M Price: Call Us |
| 70 | 19162016 | WASHER 1/2X1 1/4 Price: Call Us |
| 71 | 19131610 | WASHER PM Price: Call Us |
| 72 | 133943 | HARDENED WASHER Price: Call Us |
| 142862 | "DECK.SERVICE.38""" | Price: Call Us 142862 |
