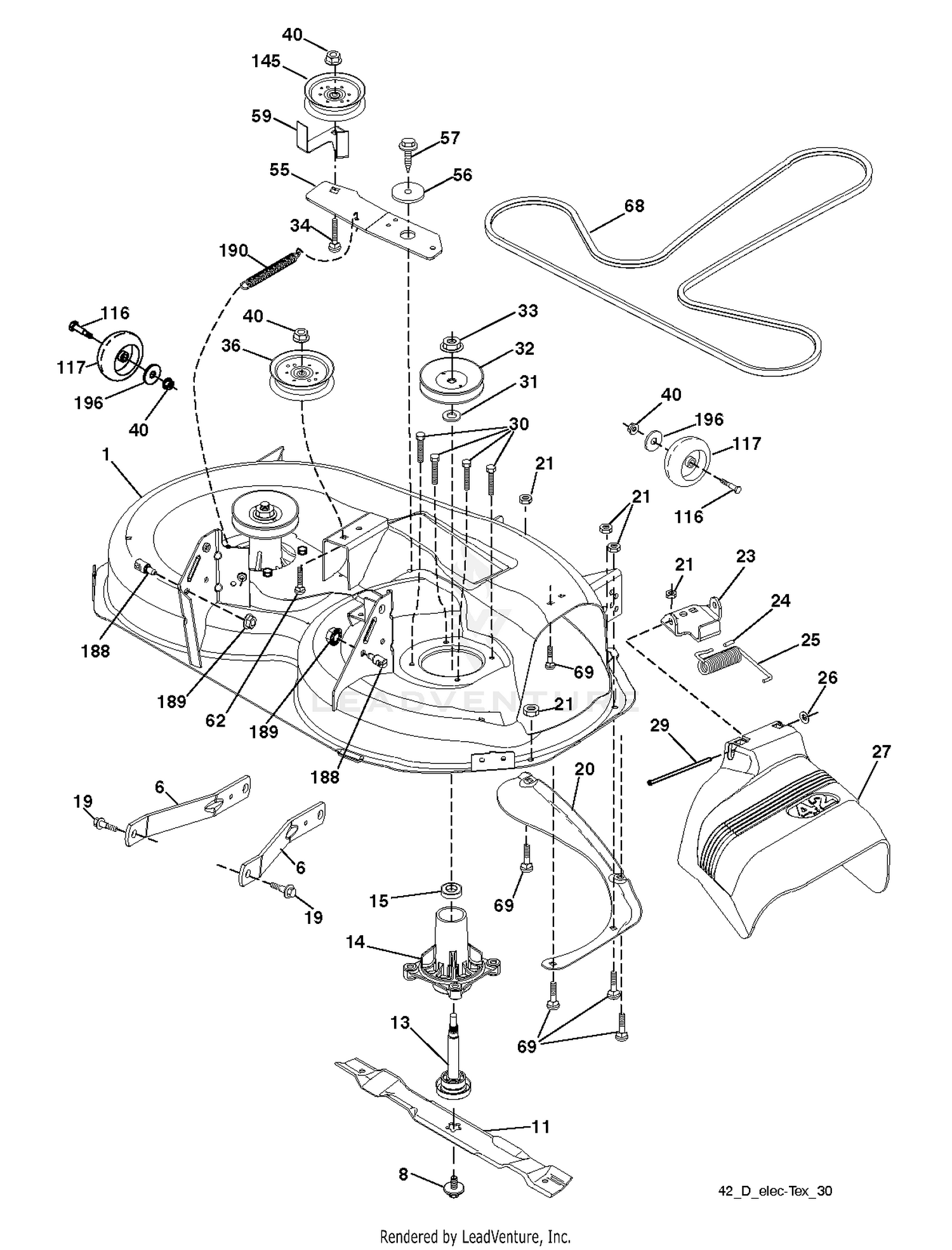

| Ref | Part Number | Description |
|---|
| 1 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 1 |
598602801 |
Decks This part replaces 532196495. Price: $349.99 |
| 2 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 3 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 4 |
110-3257 |
HOSE-FUEL This part replaces 63-7630. Price: $17.26 |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
2412-96 |
CLAMP-R Price: $3.46 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
70-8630 |
GAS CAP Price: $44.42 |
| 9 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 10 |
353-536 |
DISCONTINUED Price: Call Us |
| 12 |
3256-67 |
WASHER Price: $0.49 |
| 13 |
237-136 |
GROMMET Price: $3.52 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
321-5 |
SCREW-HH Price: $0.22 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 17 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 18 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER Price: $147.85 |
| 19 |
217-117 |
WHEEL Price: $164.56 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
23-7270 |
NUT-LUG Price: $10.37 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
5108 |
VALVE This part replaces 232-31. Price: $6.29 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
27-4310-01 |
MASKED PIVOT PIN This part replaces 27-4310. Price: $31.42 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
324-5 |
SCREW-HH Price: $0.54 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 29 |
302-62 |
FITTING-GREASE Price: $1.34 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
76-3090 |
LH LIFT ARM ASM Price: $637.79 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
99-5682 |
CARRIER BRACKET ASM This part replaces 67-1830. Price: $164.13 |
| 32 |
3219-6 |
NUT-HEX Price: $2.78 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 34 |
86-9640-03 |
FRONT AXLE ASM This part replaces 70-2740. Price: $2,641.21 |
| 35 |
3214-5 |
SCREW-HH Price: Call Us |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 36 |
66-3060 |
DISCONTINUED Price: Call Us |
| 37 |
110-6187 |
HOSE-FUEL This part replaces 71-3380. Price: $14.65 |
| 38 |
62-7650 |
GASKET Price: $4.28 |
| 39 |
63-7373 |
DISCONTINUED Price: Call Us |
| 40 |
46-6560 |
BUSHING Price: $2.94 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 55 |
531171201 |
SERVICE KIT IDLER.ARM.42" This part replaces 532437110. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 190 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 196 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
