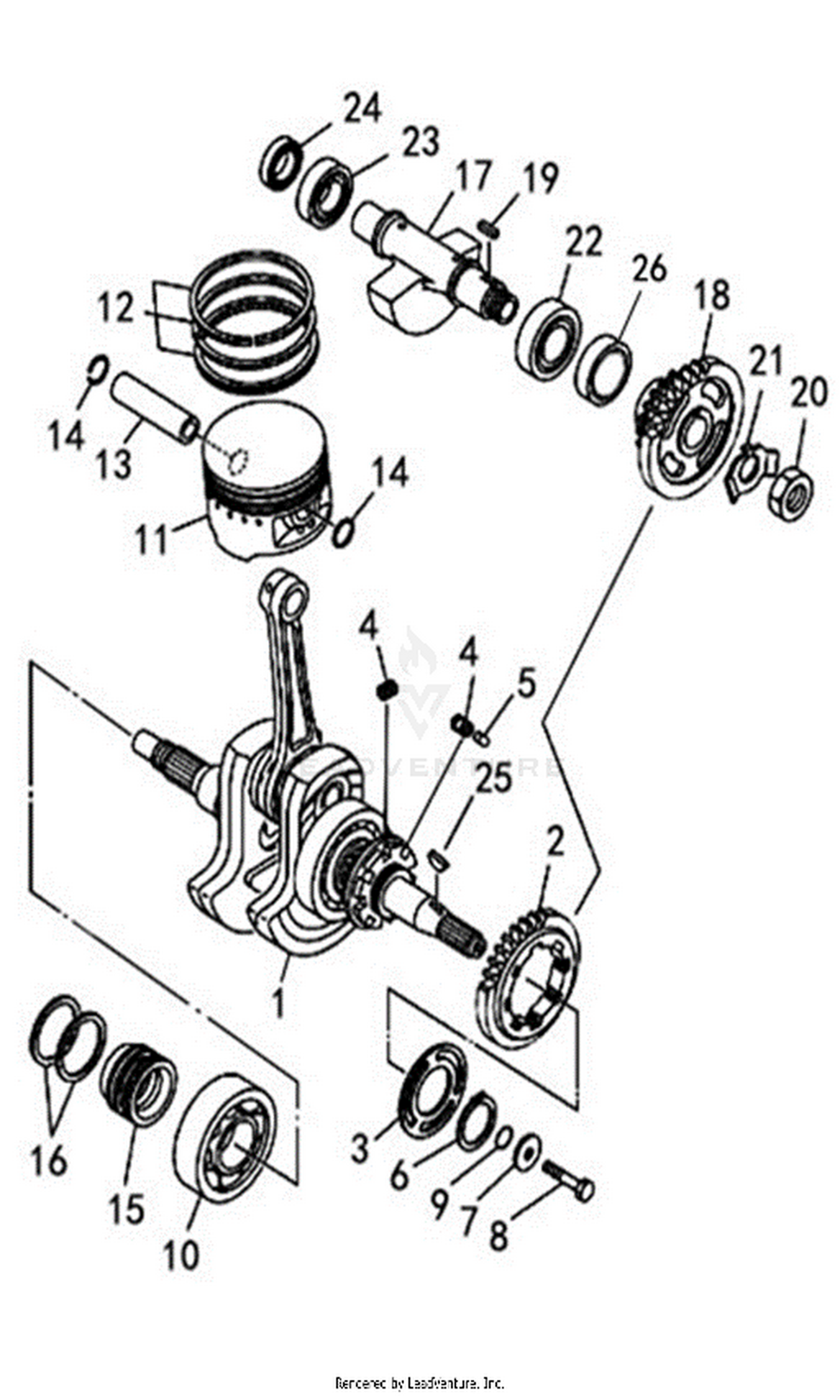

| Ref | Part Number | Description |
|---|
| 1 |
503-02859 |
CRANKSHAFT ASSEMBLY Price: $1,559.23 |
| 2 |
503-00994 |
DRIVING GEAR BALANCE SHAFT Price: $180.30 |
| 3 |
503-00995 |
OUTER BALANCE GEAR LOC PLATE Not Available Price: |
| 4 |
503-01296 |
BALANCE GEAR BUFFER SPRING Price: $3.88 |
| 5 |
503-00997 |
BALANCE GEAR SPACER PIN Price: $3.50 |
| 6 |
503-00998 |
CIRCLIP FOR SHAFT Price: $3.58 |
| 7 |
503-01297 |
WASHER 10 x 32 x 5 Price: $4.06 |
| 8 |
503-01000 |
HEX HEAD BOLTS M10X1.25X40 Price: $5.22 |
| 9 |
503-01001 |
O-RING 16X3 Price: $7.17 |
| 10 |
503-01002 |
BEARING 6307 Price: $89.38 |
| 11 |
503-01003 |
PISTON Price: $218.37 |
| 12 |
503-01004P |
PISTON RING SET This part replaces 503-01004. Price: $142.90 |
| 13 |
503-01005 |
PISTON PIN Price: $24.12 |
| 14 |
503-01006 |
PISTON PIN CLIP Price: $5.26 |
| 15 |
503-01007 |
SEALING RING BUSHING Price: $58.47 |
| 16 |
503-01008 |
SEALING RING Price: $24.12 |
| 17 |
503-01009 |
BALANCE SHAFT ASSEMBLY Price: $161.29 |
| 18 |
503-01010 |
BALANCE DRIVEN GEAR ASSEMBLY Price: $211.16 |
| 19 |
503-01011 |
KEY B5X12 Price: $16.15 |
| 20 |
503-01012 |
HEX NUT M18X1 Price: $14.34 |
| 21 |
503-01013 |
TAB WASHER A Price: $3.58 |
| 22 |
503-01014 |
BEARING 6305 Price: $99.98 |
| 23 |
503-01015 |
BEARING 6304 Price: $48.09 |
| 24 |
503-01016 |
OIL SEAL 20X30X7 Price: $29.04 |
| 25 |
503-01017A |
KEY Price: $19.93 |
