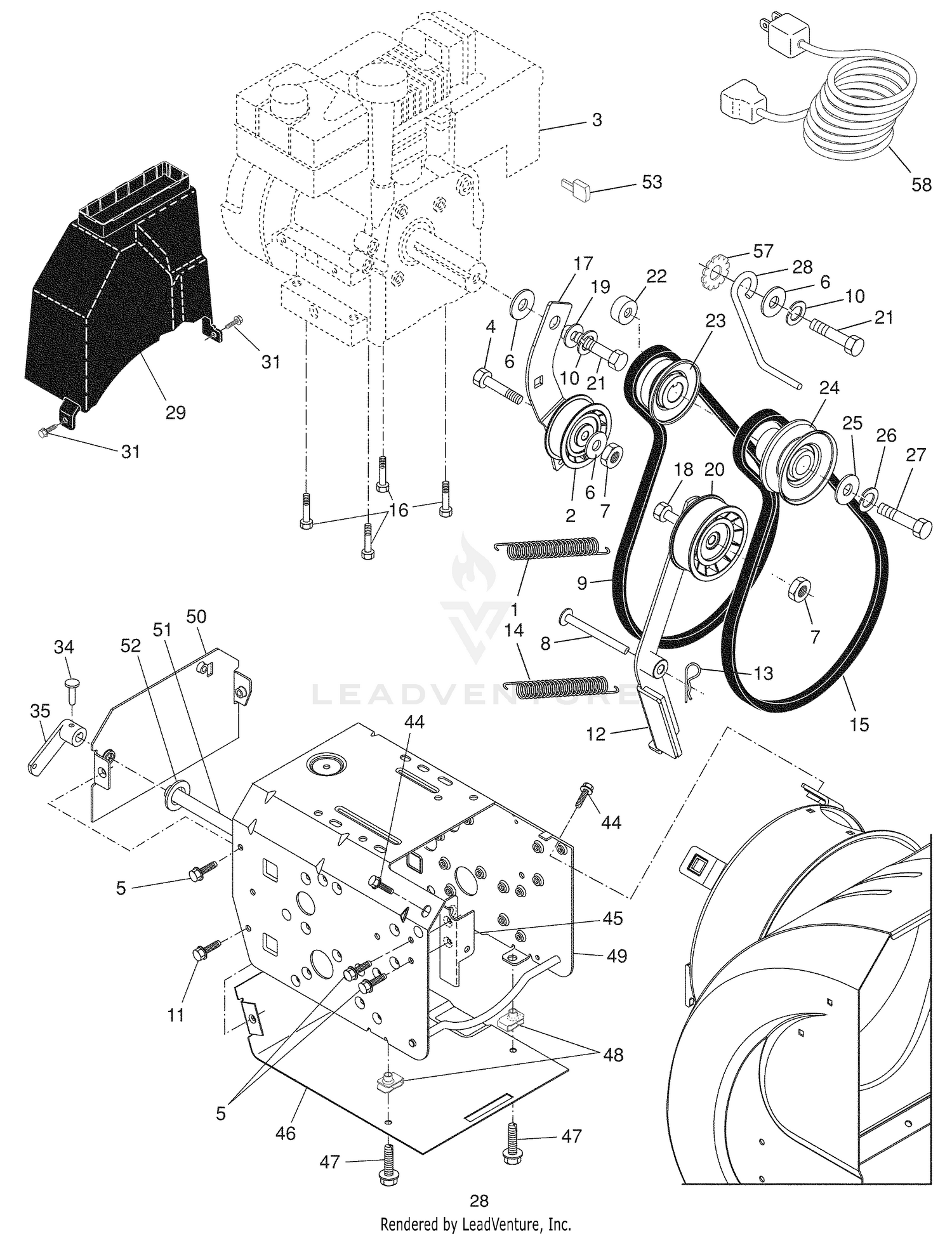

| Ref | Part Number | Description |
|---|
| 1 |
532192873 |
SPRING, TRACTION IDLER Price: $2.99 |
| 2 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 5 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 7 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 9 |
532405029 |
V-BELT.TRACTION.DRIVE.SNOW.13H Price: $27.99 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 12 |
532422111 |
ARM.IDLER.BRAKE.BLACK This part replaces 532410420. Price: $12.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 15 |
532403842 |
BELT.V.IMPELLER.13HPHS.SNOW Price: $39.99 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532187786. Price: $27.99 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 19 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 22 |
532409475 |
SPACER.ENGINE.PULLEY Price: $7.99 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 24 |
532426492 |
PULLEY.ENG.IMPELLER.SNOW This part replaces 532178813. Price: $17.99 |
| 25 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
532193607 |
GUIDE, BELT Price: $11.99 |
| 29 |
532409161 |
COVER.BELT.HS Price: $12.99 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 34 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 35 |
532405484 |
ARM.CONTROL.AUGER Price: $7.99 |
| 44 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 45 |
532407849 |
BRACKET, PIVOT, IDLER Price: $5.99 |
| 46 |
532410877 |
PAN.BOTTOM.PLASTIC This part replaces 532403732. Price: $19.99 |
| 47 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 48 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 49 |
532415307 |
FRAME.WELD.SNOWBLOWER.ORANGE Price: $49.99 |
| 50 |
532407868 |
PLATE.REAR.HYDRO.ORANGE Price: $17.99 |
| 51 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
531300340 |
KEY, TECUMSEH ENGINE This part replaces 532035062. Price: $10.00 |
| 57 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
