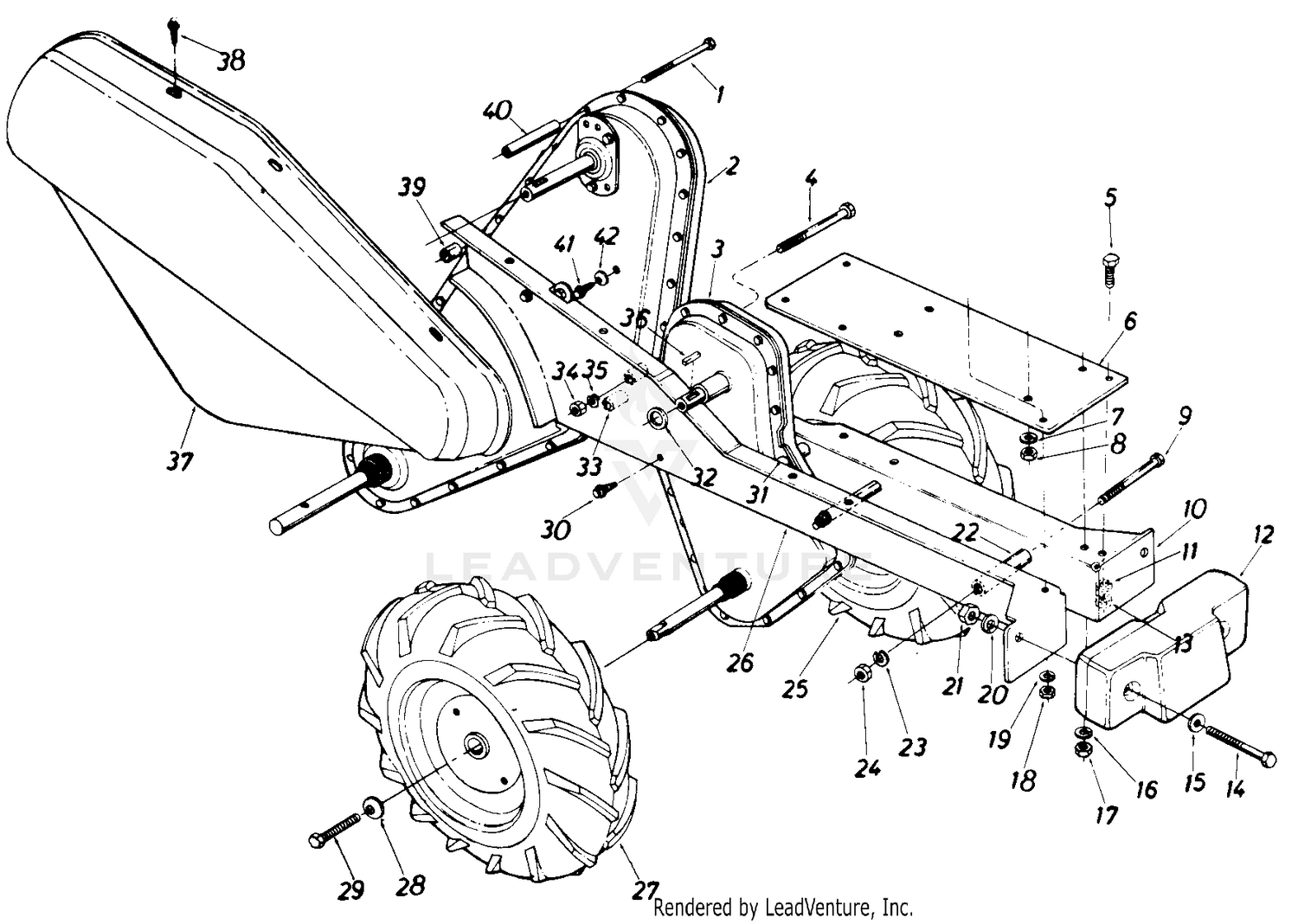

| Ref | Part Number | Description |
|---|
| 1 |
710-0189 |
Hex Bolt 5/16-18 x 3.00" Lg. Price: $5.30 |
| 2 |
784-0106 |
CHAIN CASE ASSY COMP Not Available Price: |
| 4 |
710-0189 |
Hex Bolt 5/16-18 x 3.00" Lg. Price: $5.30 |
| 5 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 7 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 9 |
710-0830 |
HEX SCREW 3/8-24 x 3.0 LG Not Available Price: |
| 11 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 12 |
723-0340 |
COUNTERWEIGHT Not Available Price: |
| 13 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 14 |
710-0786 |
SCREW 1/2-13 X4.0 GR5 Not Available Price: |
| 15 |
736-0326 |
Fl-Wash. .510" I.D. x 1.0" O.D. Price: $3.89 |
| 16 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 17 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 18 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 19 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 20 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 21 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 22 |
750-0579 |
Spacer .38" I.D. x .62" O.D. x 2.18" Lg. Price: Call Us |
| 23 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 24 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 25 |
734-1255 |
Wheel Ass'y. Comp. 12.5 x 3.5-L.H. Price: Call Us |
| 26 |
14974 |
FRAME RAI I-R.H. Not Available Price: |
| 27 |
734-1254 |
Wheel Ass'y Comp. 12.5 x 3.5-R. H. Price: Call Us |
| 28 |
736-0242 |
Belleville Wash. .345" I.D. x.88" O.D. Price: $3.75 |
| 29 |
710-0237 |
Hex Bolt 5/16-24 x .62" Lg. Price: $3.93 |
| 30 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 31 |
750-0470 |
Spacer .326" I.D. x .47" O.D. x .96" Lg. Price: $5.99 |
| 32 |
936-0256 |
Fl-Wash. This part replaces 736-0256. Price: $6.24 |
| 33 |
750-0470 |
Spacer .326" I.D. x .47" O.D. x .96" Lg. Price: $5.99 |
| 34 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 35 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 36 |
714-0122 |
Sq. Key 3/16 x .75" Lg. Price: $3.07 |
| 37 |
14980 |
BELT COVER Not Available Price: |
| 38 |
710-0599 |
Hex Wash. Hd. SF-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 39 |
750-0470 |
Spacer .326" I.D. x .47" O.D. x .96" Lg. Price: $5.99 |
| 40 |
750-0219 |
Spacer .375" I.D. x .500" O.D. x 2.00" Lg. Price: Call Us |
| 41 |
710-0599 |
Hex Wash. Hd. SF-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
