| Ref | Part Number | Description |
|---|
| 1 |
532123436 |
Rod, Parking Brake Price: $4.99 |
| 1 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 1 |

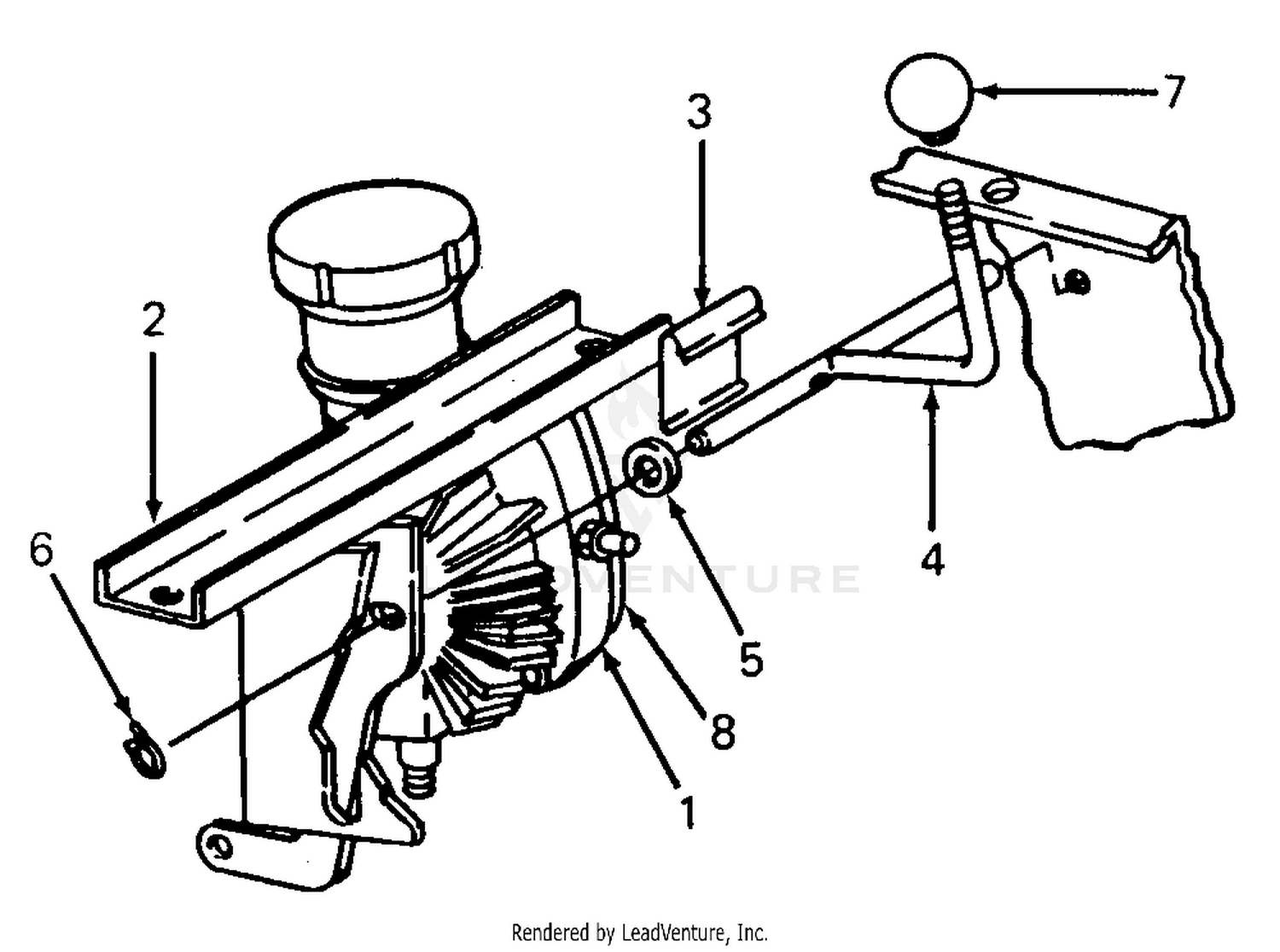

717-3016 |
HYDRO PUMP Not Available Price: |
| 2 |
532123437 |
Bracket, Parking Brake Price: $4.46 |
| 2 |
69-9650-03 |
SCREEN Price: $60.32 |
| 2 |
703-1225 |
Support, Transaxle Price: Call Us |
| 3 |
107-1142 |
DISCONTINUED This part replaces 98-2365-01. Price: Call Us |
| 3 |
532122504 |
Bracket, L.H. Clutch Pedal Price: $3.08 |
| 3 |
703-0310 |
DUMP LEVER Not Available Price: |
| 4 |
3269-15 |
RIVET-POP Price: $0.54 |
| 4 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 4 |
703-1373 |
LEVER ASSEMBLY-DUMP Not Available Price: |
| 5 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 5 |
69-9722 |
TRIM-SEAL Price: $25.39 |
| 5 |
736-0159 |
Washer, .344 X .88 X .06 Price: $3.71 |
| 6 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 6 |
714-0145 |
Pin, 1/2 Int. Cotter Price: $4.42 |
| 6 |
819131016 |
Washer, 13/32 x 5/8 x 16 Ga. Price: $3.99 |
| 7 |
69-3030 |
STRIKE-LATCH Price: $210.27 |
| 7 |
720-3017 |
Knob, Ball Price: $12.87 |
| 7 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 8 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 8 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 9 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 10 |
532139933 |
Assembly, Clutch/Brake Pedal This part replaces 532124145. Price: $21.38 |
| 10 |
69-8690-03 |
SUPPORT-GRILLE Price: $505.57 |
| 11 |
105-9296 |
LATCH-DRAW Price: $71.82 |
| 11 |
532123543 |
Rod, Front Brake Price: $8.38 |
| 12 |
71-0300 |
FOAM-FRONT COWL, LOWER (LH) Price: $79.38 |
| 12 |
71-0310 |
FOAM-FRONT COWL, LOWER (RH) Price: $79.38 |
| 12 |
819251816 |
Washer 25/32 x 1-1/8 x 16 Ga. Price: $3.99 |
| 13 |
75-9460-03 |
BRACKET-SEAL, LH Price: $44.25 |
| 13 |
812000034 |
Ring, Clip Price: $2.99 |
| 14 |
532131461 |
CLUTCH KIT This part replaces 532126759. Price: $13.99 |
| 14 |
69-9721 |
TRIM-SEAL Price: $24.68 |
| 15 |
69-7150-03 |
LOWER GRILL ASM Price: $373.29 |
| 15 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 16 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 16 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 17 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 17 |
75-9480-03 |
BRACKET-SEAL, BOTTOM Price: $18.63 |
| 18 |
69-0040 |
STRIP-SEALING, GRILLE Price: $6.59 |
| 18 |
819132012 |
Washer 13/32 x 1 1/4 x 12 Ga. Price: $2.99 |
| 19 |
532004921 |
Spring, Retainer Price: $3.99 |
| 19 |
75-9470-03 |
BRACKET-SEAL, RH Price: $44.25 |
| 20 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 20 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 21 |
328-11 |
SCREW-HH Price: $10.94 |
| 21 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 22 |
532132793 |
LIFT TRUNION This part replaces 532106204. Price: $4.99 |
| 22 |
69-9720 |
TRIM-SEAL Price: $17.44 |
| 23 |
532123672 |
Link, Threaded Price: $5.72 |
| 24 |
532123641 |
Assembly, Brake Pivot Arm Price: $12.18 |
| 25 |
532121978 |
Bracket, Lift Shaft Price: $2.38 |
| 26 |
532123394 |
Rod, Clutch Price: $7.99 |
| 27 |
872110506 |
Bolt, Carriage 5/16-18 UNC x 3/4 Price: $3.99 |
| 28 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 29 |
532123547 |
Assembly, Rear Mower Lift Price: $31.23 |
