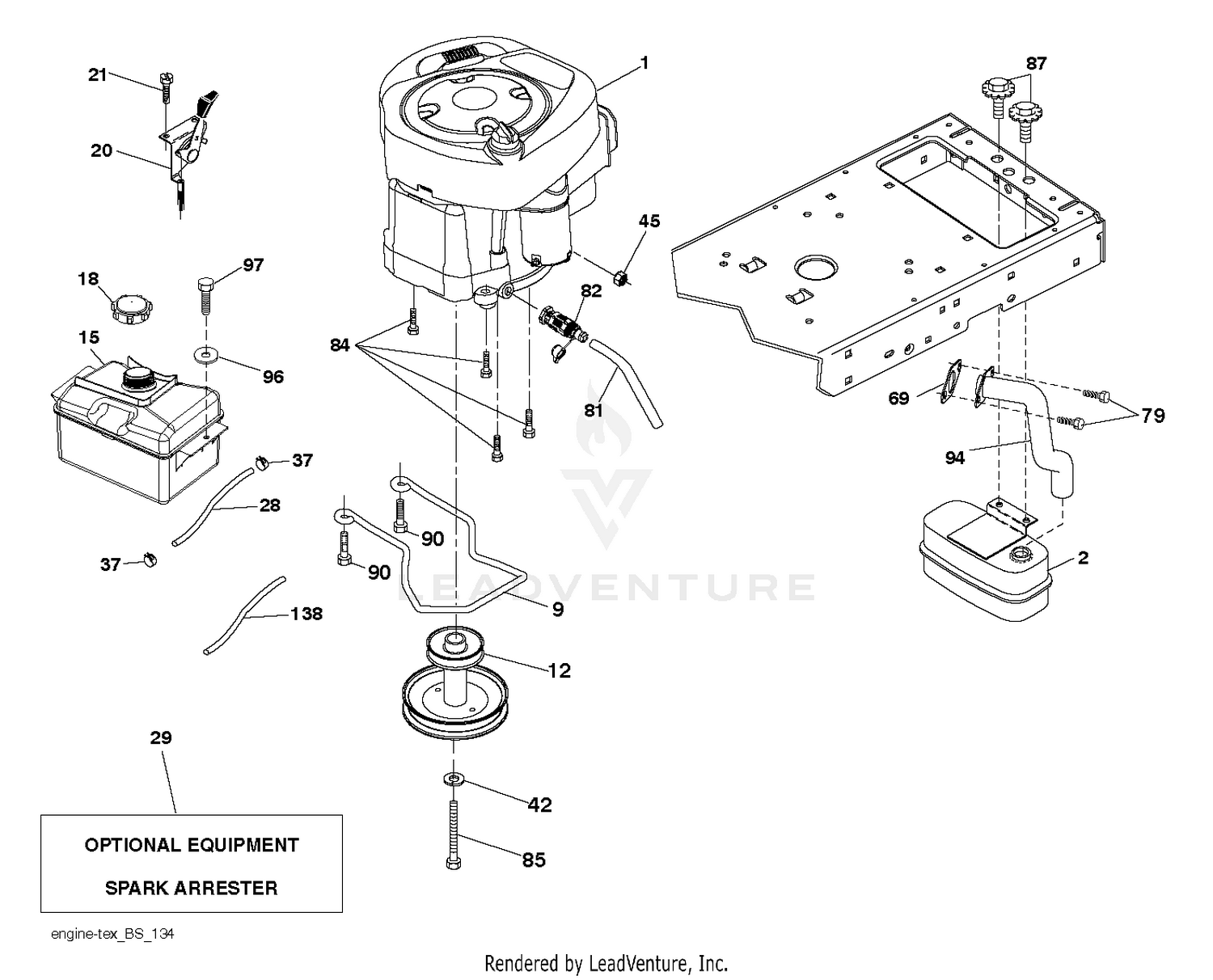

| Ref | Part Number | Description |
|---|
| 2 |
590645301 |
MUFFLER.ASM.SINGLE Price: $27.99 |
| 9 |
501832601 |
KEEPER.BELT.ENG.4.25"2.BLT.431 Price: $3.99 |
| 12 |
532405472 |
PULLEY ENGINE This part replaces 586728901. Price: $34.99 |
| 15 |
532433004 |
TANK.ASM.FT.2.5GAL.W/CAP.EPA17 Price: $89.99 |
| 18 |
581176101 |
CAP.FUEL.2 WAY VENT Price: $34.99 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $22.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 28 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 29 |
532137180 |
Arrester, Spark (Optional equipment) (AYP part number) Price: $129.99 |
| 37 |
532123487 |
Clamp Hose Black (AYP part number) Price: $3.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
501606501 |
Speed Clip Price: $1.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 Price: $17.99 |
| 96 |
819091416 |
Washer 9/32 x 7/8 x 16 Gauge (AYP part number) Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
