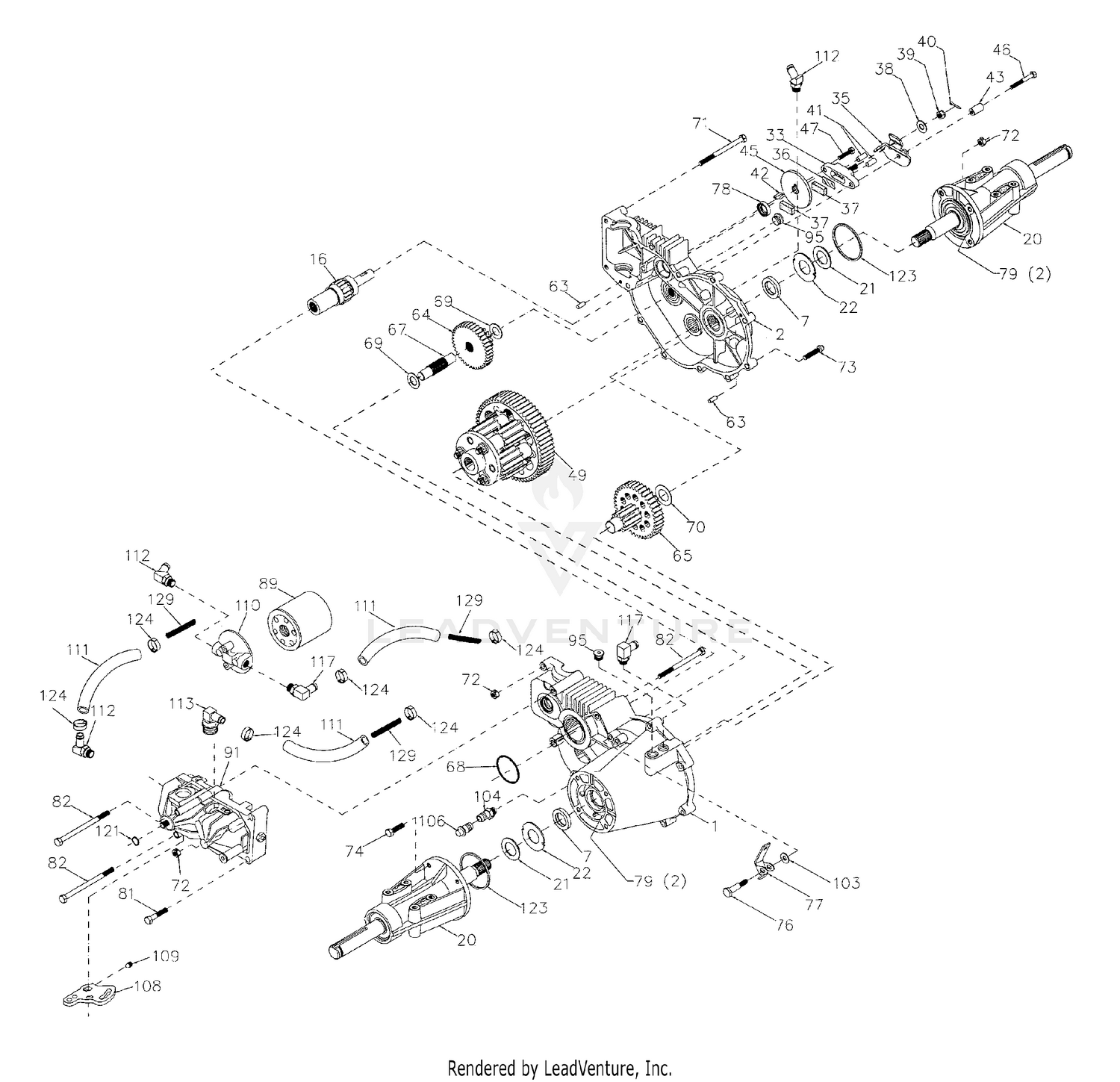

| Ref | Part Number | Description |
|---|
| 1 |
532142874 |
HOUSING.TRANSAXLE.70536 Price: $388.99 |
| 1 |
93-7974-03 |
PLATE-BOX, BATTERY This part replaces 93-7974. Price: $87.76 |
| 2 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 2 |
532142875 |
ASSEMBLY, RH HOUSING Price: $247.99 |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 4 |
110-4113 |
HOSE-FUEL This part replaces 63-7627. Price: $9.44 |
| 5 |
33005-00 |
NUT-HF Price: $0.68 |
| 6 |
108-3282 |
HOSE-FUEL This part replaces 92-7522. Price: $36.93 |
| 7 |
532153765 |
SEAL.OIL.44782.HY (44782) Price: $4.99 |
| 7 |
66-8121 |
STANDPIPE Price: $23.18 |
| 8 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 9 |
46-6560 |
BUSHING Price: $2.94 |
| 10 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 11 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 12 |
304-46 |
DRAINCOCK Price: $7.55 |
| 13 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 14 |
63-8410 |
WASHER Price: $1.76 |
| 15 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 16 |
105-7949 |
TANK-FUEL This part replaces 92-7422. Price: $768.96 |
| 16 |
532142876 |
BRAKE SHAFT KIT #62877 Price: $379.99 |
| 17 |
62-7650 |
GASKET Price: $4.28 |
| 18 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 19 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 20 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 20 |
532142877 |
AXLE.MOUNTING.HORN.70087 Price: $313.99 |
| 21 |
110-6184 |
HOSE-FUEL This part replaces 92-7521. Price: $49.59 |
| 21 |
532142878 |
WASHER 44805 Price: $6.99 |
| 22 |
532142879 |
WASHER Price: $5.69 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 33 |
584289701 |
YOKE.BRAKE.62589 This part replaces 532142929. Price: $34.99 |
| 35 |
532142880 |
BRACE ARM 50214 Price: $29.99 |
| 36 |
584289601 |
PLATE.PUCK.44134 This part replaces 532142882. Price: $3.99 |
| 37 |
532142883 |
BRAKE PUCK (44132) Price: $4.99 |
| 38 |
532142884 |
WASHER .34X.88X.06.44130 Price: $4.99 |
| 39 |
532142885 |
CASTLE NUT Price: $4.62 |
| 40 |
532142886 |
PIN.COTTER.44101. Price: $4.99 |
| 41 |
584287501 |
PIN.BRAKE.31X.73.PLATED.44127 This part replaces 532142887. Price: $3.99 |
| 42 |
532142888 |
KEY.HIPRO.44143 Price: $5.99 |
| 43 |
532142889 |
SPACER 50259 Price: $3.99 |
| 45 |
532142890 |
BRAKE.DISC.44090. Price: $32.99 |
| 46 |
532142891 |
BOLT 44276 Price: $4.99 |
| 47 |
584281501 |
SCREW 1/4-20X1 PATCH 44433 This part replaces 532142892. Price: $3.99 |
| 49 |
532153766 |
DIFFERENTIAL ASSEMBLY Price: $748.99 |
| 63 |
532142894 |
DOWEL.PIN.44757.HYDRO Price: $13.99 |
| 64 |
532150818 |
REDUCTION GEAR/14-38 TEETH Price: $42.99 |
| 65 |
532142897 |
PINION DR FINAL 70051 Price: $182.99 |
| 67 |
532142898 |
JACKSHAFT.44779.HYDRO Price: $38.99 |
| 68 |
532142899 |
O-RING #44781 Price: $3.99 |
| 69 |
532142900 |
WASHER.44795. Price: $2.99 |
| 70 |
532142901 |
WASHER.44794.HYDRO Price: $2.99 |
| 71 |
532142902 |
BOLT HXHD 44827 Price: $4.99 |
| 72 |
532153767 |
NUT 5/16-18 HEX LOCK 43064 Price: $3.99 |
| 73 |
532161159 |
TORX.SCREW. 50868 This part replaces 532142904. Price: $6.99 |
| 74 |
532142905 |
HEX CAP SCREW, 5/16-18X1 Price: $3.99 |
| 76 |
532142907 |
BOLT.SHOULDER.44785. Price: $3.99 |
| 77 |
532142908 |
FREE WHEEL ACTUATING ARM 44786 Price: $19.99 |
| 78 |
532142909 |
SEAL OIL 70719 Price: $14.99 |
| 79 |
532126976 |
SHELL, GREASE #50416 This part replaces 532153768. Price: $46.99 |
| 81 |
532142910 |
BOLT Price: $3.99 |
| 82 |
532142911 |
BOLT 5/16 44820 Price: $7.99 |
| 89 |
532182642 |
FILTER.SPIN.51563 This part replaces 532142912. Price: $34.99 |
| 91 |
532153769 |
PUMP.BDU-10L-122 Price: $1,384.99 |
| 95 |
532142914 |
PLUG.9005110-5600 Price: $4.99 |
| 103 |
532142916 |
WASHER 50169 Price: $3.99 |
| 104 |
532142578 |
VENT CAP 70109 This part replaces 532142917. Price: $37.99 |
| 106 |
532142918 |
O-RING KIT 70110 Price: $22.99 |
| 108 |
532142919 |
ARM CONTROL 45007 Price: $20.99 |
| 109 |
532142920 |
SCREW.SET.50018 Price: $5.99 |
| 110 |
532142921 |
FILTER HEAD 50207 HYDRO Price: $102.99 |
| 111 |
532150820 |
HOSE Price: $28.99 |
| 112 |
532150823 |
FITTING Price: $44.99 |
| 113 |
532150821 |
FITTING, 1/2" BEADED 60 -9/16 Price: $41.99 |
| 117 |
532150822 |
FITTING.SAE.50589.HYDRO GEAR Price: $38.99 |
| 123 |
532150824 |
O-RING 50405 Price: $3.99 |
| 124 |
532150825 |
CLAMP 50590 Price: $3.99 |
