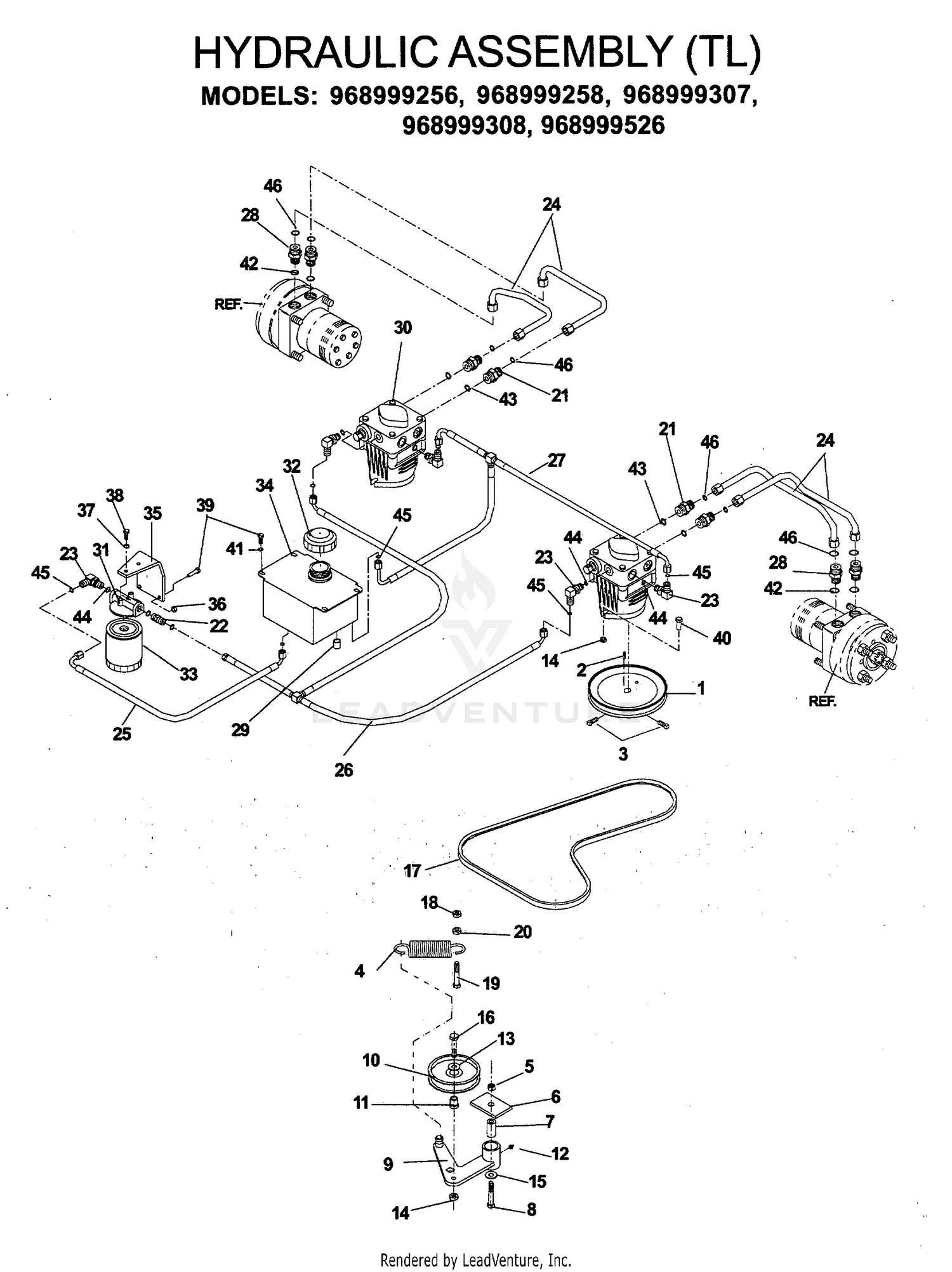

| Ref | Part Number | Description |
|---|
| 1 |
127-3086 |
BRACKET-CONNECTOR Price: $21.36 |
| 1 |
539101176 |
PULLEY Price: $37.99 |
| 2 |
127-3018 |
CLIP Price: $8.87 |
| 2 |
539101177 |
KEY 5 MM SQ X 25 MM Price: $4.99 |
| 3 |
127-3156 |
HARNESS B-E C O, ENGINE Price: $1,237.60 |
| 3 |
539102717 |
SCREW 5/16C X 5/8 SQ HEAD Price: $2.99 |
| 4 |
539103256 |
SPRING Price: $9.99 |
| 5 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 6 |
539102236 |
PAD Price: $22.99 |
| 7 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 8 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 9 |
539130532 |
KIT, IDLER ARM W/PULLEY, PUMP This part replaces 539104388. Price: $149.99 |
| 10 |
596739801 |
PULLEYS This part replaces 539976688. Price: $29.99 |
| 11 |
539976695 |
BUSHING, IDLER FLANGE Price: $7.99 |
| 12 |
127-3125 |
HARNESS C Price: $544.61 |
| 12 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 13 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 14 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 15 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 17 |
127-3089 |
BOOT-TYPE, CAP Price: $10.73 |
| 17 |
510201401 |
BELT, PUMP This part replaces 539106887. Price: $34.99 |
| 18 |
127-3090 |
BRACKET-HARNESS Price: Call Us |
| 18 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 19 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 19 |
93-0362 |
BOLT Price: $3.89 |
| 20 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 20 |
93-0362 |
BOLT Price: $3.89 |
| 21 |
539101237 |
FITTING, STRAIGHT F6400-8-8-0 Price: $7.99 |
| 21 |
93-0362 |
BOLT Price: $3.89 |
| 22 |
127-3187 |
BAND Price: $1.43 |
| 22 |
539113782 |
HYDRAULIC FITTING Price: $5.99 |
| 23 |
539101238 |
ELBOW, F6801-6-6-0 90 DEGREE Price: $12.99 |
| 24 |
539106896 |
HYDRAULIC HOSE Price: $37.99 |
| 25 |
539104722 |
HOSE 7" Price: $19.99 |
| 26 |
539111814 |
T-ASSEMBLY Price: $39.99 |
| 27 |
539110837 |
T ASM Price: $54.99 |
| 28 |
539102396 |
FITTING Price: $11.99 |
| 29 |
539105168 |
NUT 9/16-18 JIC CAP Price: $2.99 |
| 30 |
539132144 |
HG_PUMP, 10CC W/O FAN This part replaces 539112671. Price: $1,099.99 |
| 31 |
539101165 |
FILTER HEAD Price: $37.99 |
| 32 |
539101202 |
HYDRAULIC CAP Price: $19.99 |
| 33 |
539102606 |
HYDRAULIC OIL FILTER Price: $22.99 |
| 34 |
539105024 |
OIL TANK Price: $249.99 |
| 35 |
539106933 |
OIL FILTER BRKT Price: $22.99 |
| 36 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 37 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 38 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 39 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 40 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 41 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 42 |
539103115 |
O RING Price: $2.99 |
| 43 |
539103116 |
O RING Price: $2.99 |
| 44 |
539103117 |
O RING Price: $2.99 |
| 45 |
539103118 |
O RING Price: $2.99 |
| 46 |
539103119 |
O RING Price: $3.99 |
