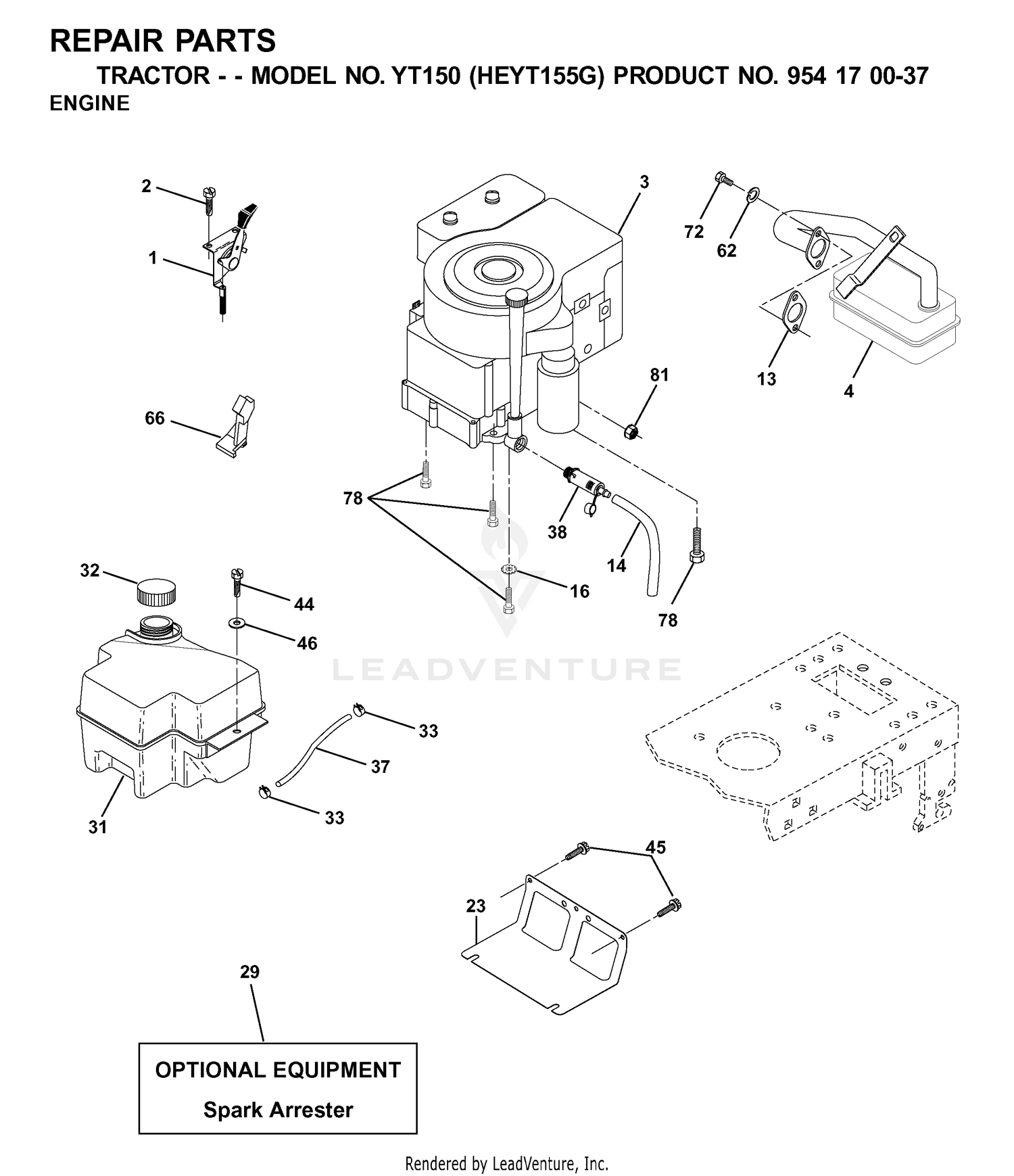

| Ref | Part Number | Description |
|---|
| 1 |
532170865 |
THROTTLE.CONTROL.CABLE.BLACK Price: $22.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 10 |
98-9596 |
JOINT-EYE Price: $18.69 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 20 |
98-9643 |
INJECTION PUMP ASM Price: $2,551.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
98-9445 |
GASKET Price: $1.84 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
98-9430 |
SCREW Price: $19.45 |
| 60 |
98-9446 |
GASKET Price: $2.50 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 66 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 70 |
98-9466 |
PLUG Price: $12.54 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 80 |
98-9451 |
GASKET Price: $1.92 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
115-3045 |
SHIM-INJECTION (0.175MM) Price: $10.31 |
| 90 |
98-9456 |
SHIM-INJECTION (0.20MM) Price: $7.29 |
| 90 |
98-9457 |
SHIM-INJECTION (0.25MM) Price: $8.40 |
| 100 |
115-3046 |
SHIM-INJECTION (0.35MM) Price: $10.62 |
| 100 |
98-9458 |
SHIM-INJECTION (0.30MM) Price: $12.10 |
| 110 |
98-9361 |
BOLT-HSH Price: $0.76 |
| 120 |
98-9438 |
STUD Price: $1.33 |
| 130 |
98-9440 |
NUT-CAP Price: $18.34 |
