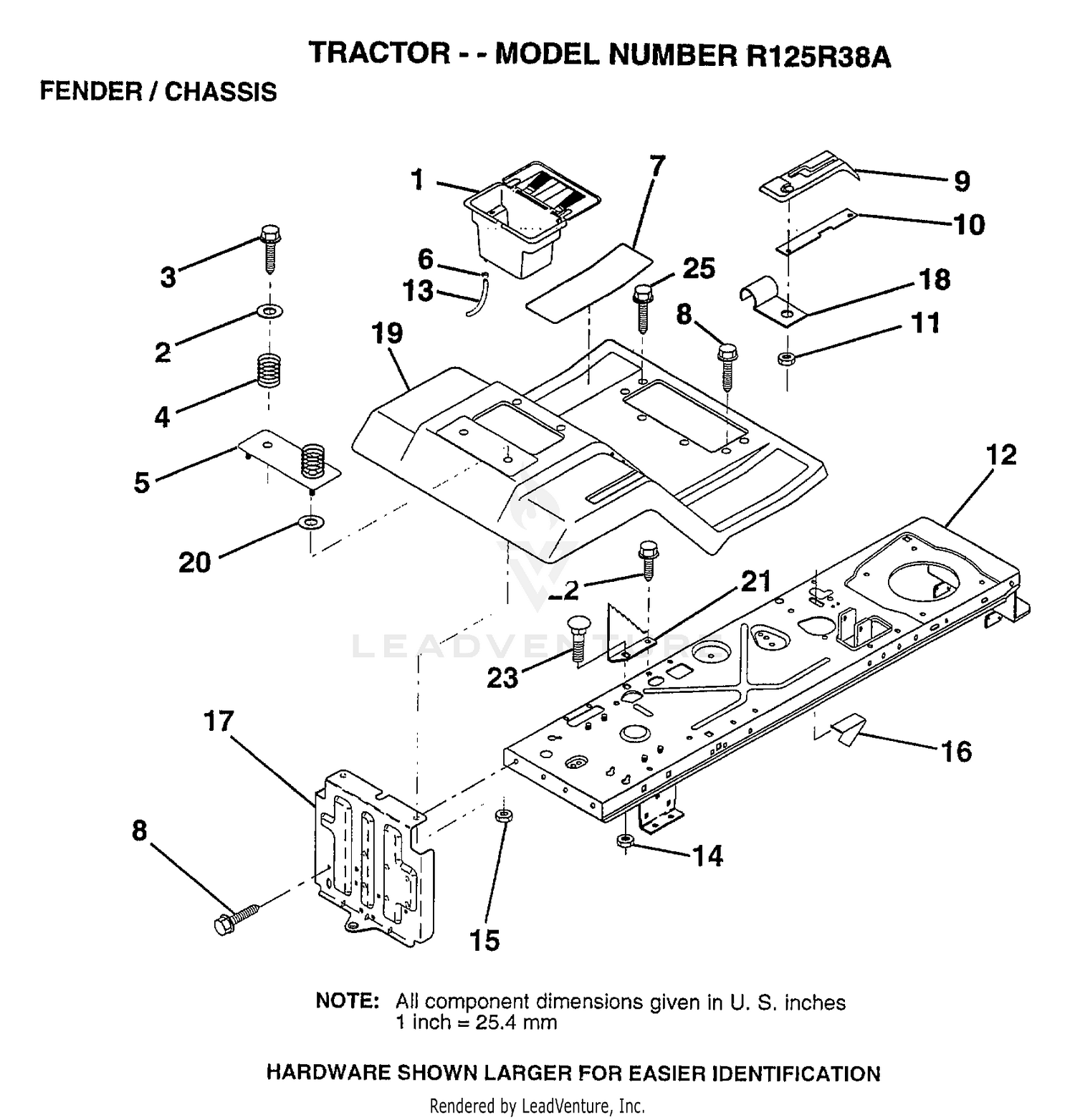

| Ref | Part Number | Description |
|---|
| 1 |
144940 |
SUB= 156417 Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
19132012 |
WASHER Price: Call Us |
| 2 |
27-8550-01 |
PARKING BRAKE PEDAL ASM Price: $324.09 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 4 |
124181 |
SPRING, COMPRESSION, SEAT Price: Call Us |
| 4 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 5 |
127115X505 |
BTRY FENDER PLATE Price: Call Us |
| 5 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 6 |
109596X |
HOSE CLAMP T Price: Call Us |
| 6 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 7 |
124144X |
PAD FOOTREST Price: Call Us |
| 7 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 8 |
17490512 |
SCREW Price: Call Us |
| 8 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM Price: $81.41 |
| 9 |
126995X |
SUB= 126995X428 Price: Call Us |
| 9 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 10 |
105-0065 |
PARKING BRAKE SHAFT ASM Price: $78.53 |
| 10 |
139783 |
PLATE LOCK SHIFT Price: Call Us |
| 11 |
124346X |
NUT Price: Call Us |
| 11 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 12 |
145190 |
CHASSIS.WELD.ASM. Price: Call Us |
| 12 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 13 |
105-0064 |
SPACER-SWITCH Price: $10.72 |
| 13 |
109238 |
TUBE, BATTERY DRAIN Price: Call Us |
| 14 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 14 |
73680500 |
SUB= 73690500 Price: Call Us |
| 15 |
3290-360 |
SCREW-HH Price: $4.34 |
| 15 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 16 |
141736 |
SUB= 146613 Price: Call Us |
| 16 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 17 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 17 |
140782 |
DRAWBAR ASM LR Price: Call Us |
| 18 |
323-14 |
SCREW-HH Price: $1.34 |
| 19 |
140956X505 |
FENDER/FOOT MS505 Price: Call Us |
| 19 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 20 |
19091413 |
WASHER Price: Call Us |
| 20 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 21 |
140297 |
BRACKET STOP DEPT Price: Call Us |
| 21 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 22 |
17490508 |
SCREW LT Price: Call Us |
| 22 |
3217-7 |
NUT-HEX Price: $0.28 |
| 23 |
72110506 |
SUB= 72270506 Price: Call Us |
| 23 |
93-8743 |
FOOTPAD-TURN Price: $27.95 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
