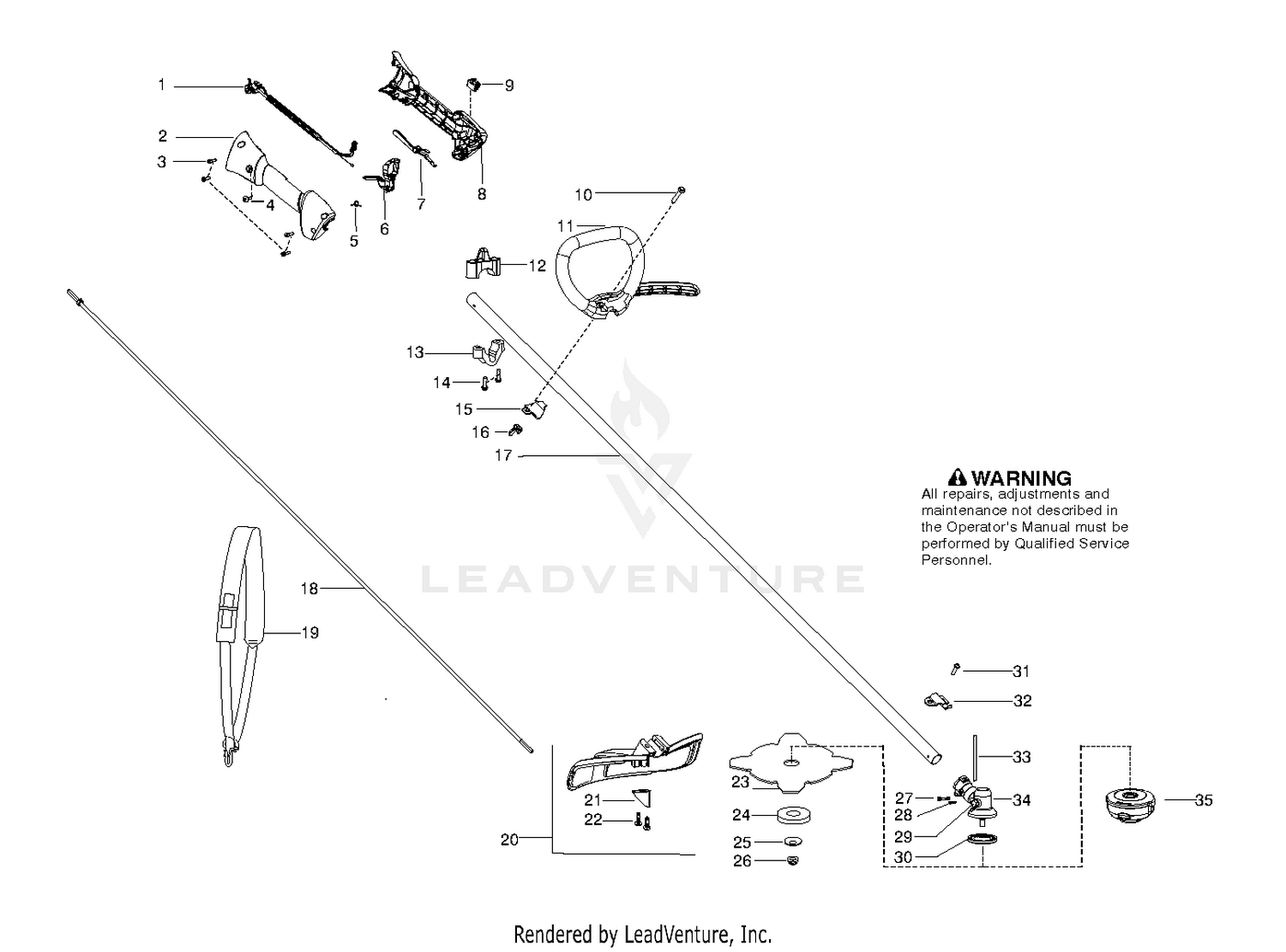

| Ref | Part Number | Description |
|---|
| 1 |
SG506000 |
GEARBOX ASM Price: $10,181.18 |
| 2 |
SG4171401 |
CONE-SHAFT, LG Price: $92.57 |
| 3 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
323-4 |
SCREW-HH Price: $1.02 |
| 5 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 6 |
SG528018 |
PTO #8 W/ADJ. CLUTCH ASM Price: $2,045.59 |
| 7 |
SG555500 |
KEY-SQUARE Price: $11.63 |
| 8 |
SG541020-03 |
BRACKET-IDLER Price: $178.12 |
| 9 |
119-1042 |
SCREW-HH Price: $9.02 |
| 10 |
530015820 |
BOLT, TYPE 2 Price: $3.99 |
| 10 |
SG237528 |
SPROCKET-GEARBOX Price: $700.29 |
| 11 |
545139701 |
ASSY HANDLE JBAR Price: $22.99 |
| 11 |
SG237529 |
HUB-GEARBOX Price: $360.44 |
| 12 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 12 |
545113301 |
CLAMP HARNESS UPPER Price: $4.99 |
| 13 |
545056601 |
CLAMP HARNESS LOWER Price: $3.99 |
| 13 |
SG271517 |
SCREW-HH Price: $6.79 |
| 14 |
530015940 |
SCREW Price: $2.99 |
| 14 |
99-4371 |
NUT-LOCK Price: $3.23 |
| 15 |
530059185 |
CLAMP ASSIST HANDLE Price: $2.99 |
| 15 |
SG575100 |
SCREW-HH Price: $87.26 |
| 16 |
530091373 |
NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 16 |
SG547300 |
WASHER-GROOVED Price: $28.84 |
| 17 |
3217-7 |
NUT-HEX Price: $0.28 |
| 17 |
545006068 |
DRIVE SHAFT ASSY This part replaces 575776001. Price: $99.99 |
| 18 |
140-7923 |
SCREW-HH This part replaces SG584300. Price: $1.43 |
| 19 |
537216202 |
Harness - Diagonal with sign This part replaces 537216201. Price: $8.99 |
| 19 |
SG580175 |
CHAIN-O-RING Price: $1,844.99 |
| 20 |
121-6855 |
NUT-HH Price: $14.25 |
| 20 |
545030901 |
KIT COBI SHIELD Price: $27.99 |
| 21 |
530052286 |
Limiter - Line Price: $0.68 |
| 21 |
SG511290 |
IDLER SPROCKET W/ BEARING ASM Price: $195.29 |
| 22 |
530015814 |
SCREW Price: $0.17 |
| 22 |
SG571450 |
NUT-HJ Price: $5.90 |
| 23 |
100-7607 |
WASHER-LOCK Price: $2.71 |
| 23 |
596278001 |
HUS 10" GRASSBLADE 255-4T 1" This part replaces 504001303. Price: $22.99 |
| 24 |
33119-040 |
SCREW-HH Price: $39.90 |
| 24 |
503890101 |
SUPPORTING CUP Price: $14.99 |
| 25 |
537285601 |
SUPPORT FLANGE Price: $9.99 |
| 26 |
503856301 |
GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 27 |
530016014 |
SCREW - CARB. ADAPTOR Price: $2.99 |
| 28 |
545003902 |
SCREW Price: $2.99 |
| 29 |
575724601 |
PLUG GREASE 9MM Price: $2.99 |
| 30 |
537234901 |
DRIVE DISC Price: $19.99 |
| 31 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 32 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 33 |
502285901 |
LOCKING PIN Price: $4.99 |
| 34 |
530096295 |
ASSY GEARBOX Price: $34.99 |
| 35 |
537338310 |
TRIMMER HEAD T25 This part replaces 537338306. Price: $27.99 |
