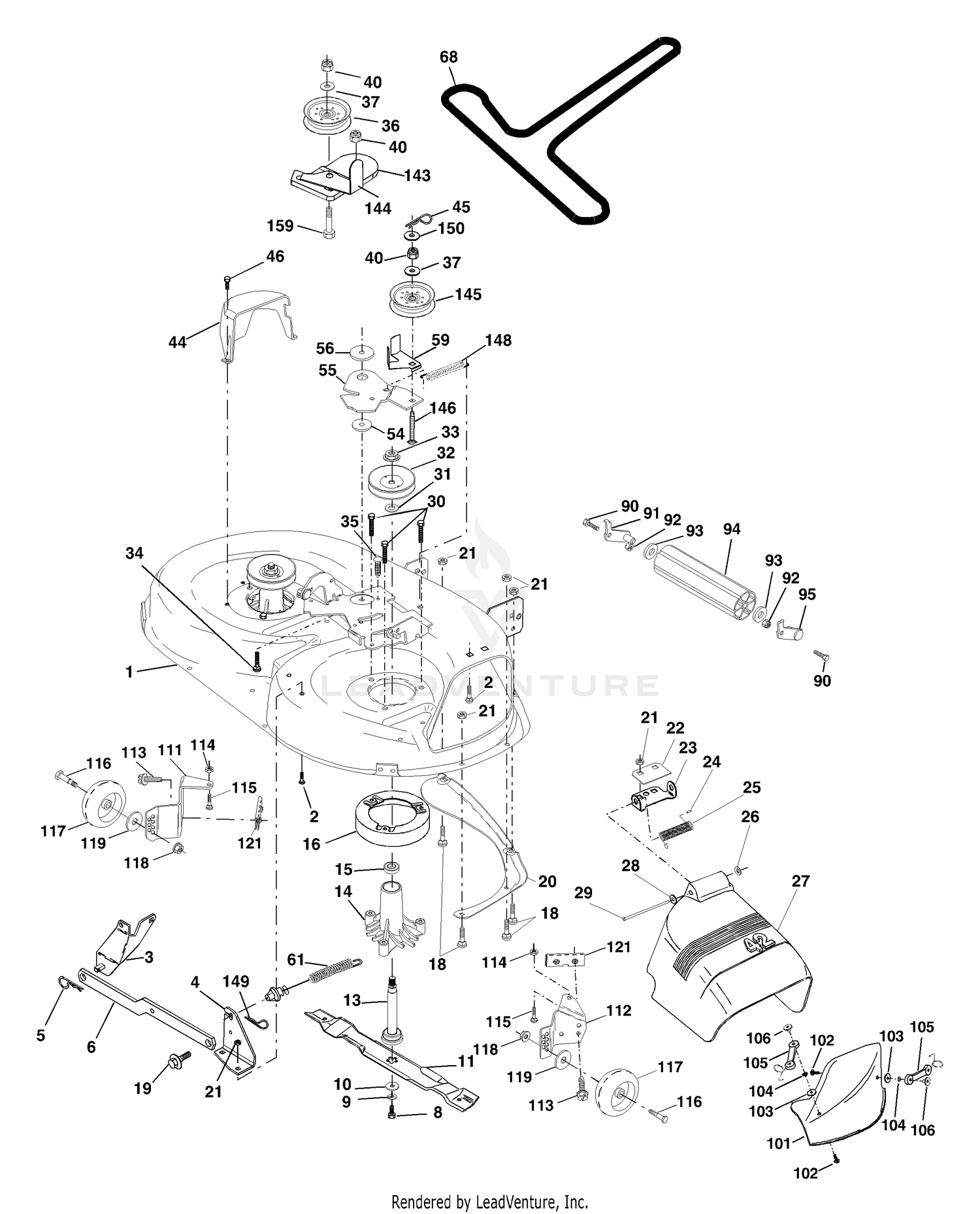

| Ref | Part Number | Description |
|---|
| 1 |
532176822 |
DECAL, FENDER Price: $12.99 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
532165460 |
BRACKET SWAY BAR 42" DECK This part replaces 532176935. Price: $11.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
532134753 |
STIFFENER BRACKET This part replaces 532176929. Price: $5.99 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532176927. Price: $4.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK This part replaces 532171634. Price: $34.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532157722. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 34 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 36 |
597025001 |
CLG This part replaces 532173438. Price: $22.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK Price: $29.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 55 |
531166601 |
SERVICE KIT ARM ARM IDLER 42" This part replaces 532176932. Price: $14.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532173442. Price: $4.99 |
| 61 |
532174882 |
SPRING EXT ELEC CLUTCH Price: $14.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 90 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $7.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 93 |
819171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: $3.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531154101 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532132273. Price: $12.99 |
| 101 |
532136420 |
COVER MULCH 42" Price: $13.99 |
| 102 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 103 |
819061216 |
WASHER Price: $3.99 |
| 104 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 111 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532176933. Price: $32.99 |
| 112 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532176934. Price: $32.99 |
| 113 |
817060514 |
Screw Tapping 5/16-18 Unc Price: $9.99 |
| 114 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110504. Price: $2.99 |
| 116 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 117 |
532165746 |
WHEEL.GAUGE.STANDARD Price: $12.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532143723 |
BRACKET.EXTRUDED.GAGE.WHEEL This part replaces 532173986. Price: $8.99 |
| 143 |
529844301 |
SERVICE KIT BRACKET This part replaces 532176931. Price: $7.99 |
| 144 |
532173441 |
KEEPER BELT 42" CLUTCH Price: $6.99 |
| 145 |
532173437 |
PULLEY.IDLER.FLAT.PLATED Price: $24.99 |
| 146 |
532173443 |
BOLT CARRIAGE IDLER This part replaces 532171977. Price: $4.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $4.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 159 |
596987501 |
Bolts This part replaces 872140614. Price: $3.99 |
