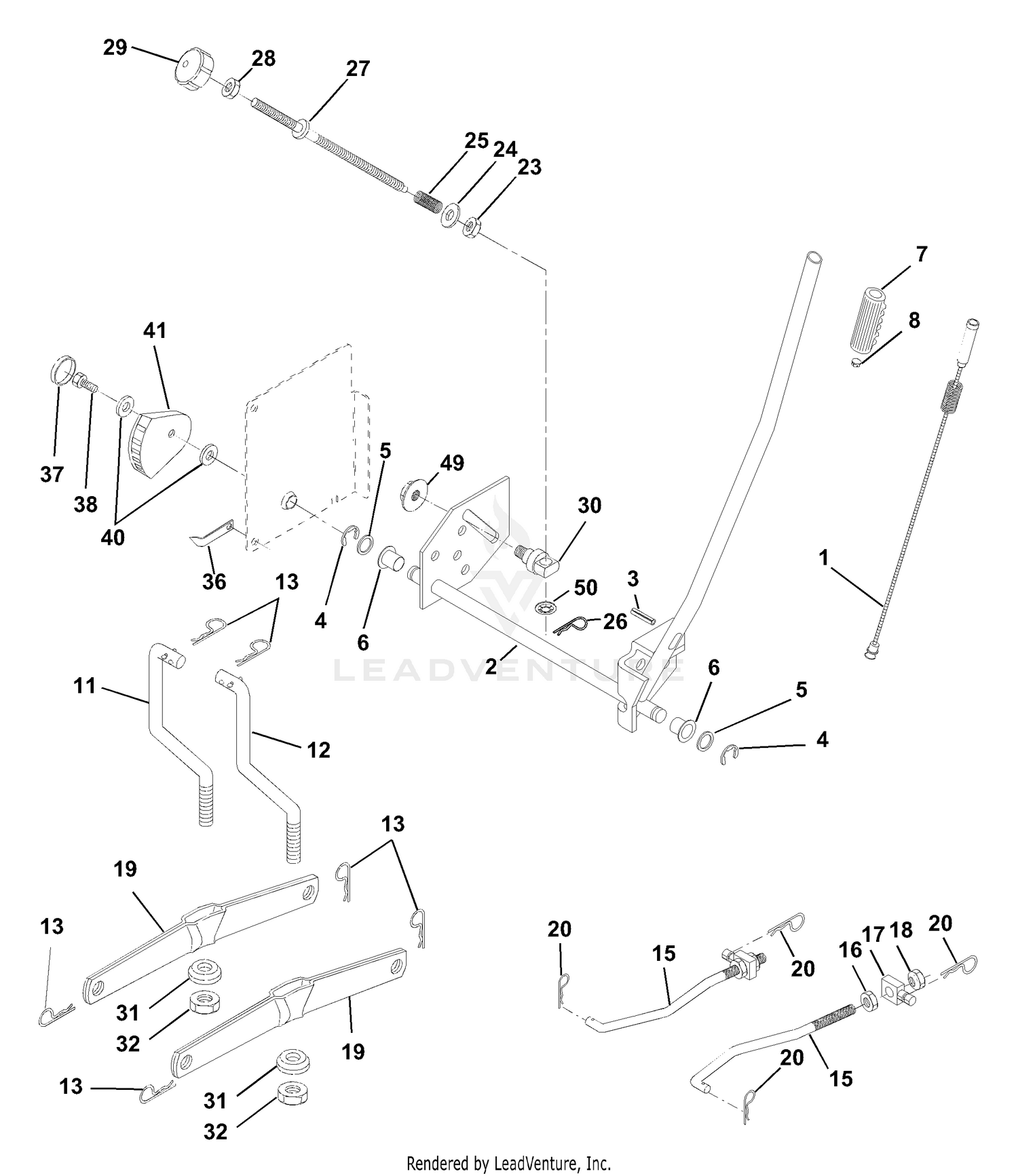

| Ref | Part Number | Description |
|---|
| 1 |
159460 |
Wire Asm Inner/Sprg W/plunger LT Price: Call Us |
| 1 |
99-8346 |
GASKET Price: $1.43 |
| 2 |
159471 |
Shaft Asm Lift RH w/Inf Price: Call Us |
| 2 |
98-9417 |
BOLT-JOINT, EYE Price: $12.10 |
| 3 |
105767X |
Pin Groove 1 500 Zinc Price: Call Us |
| 3 |
115-4126 |
BOLT-JOINT, EYE This part replaces 98-9418. Price: $12.34 |
| 4 |
12000002 |
E Ring #5133-62 Price: Call Us |
| 4 |
98-9419 |
OIL PIPE ASM Price: $64.29 |
| 5 |
108-4422 |
GASKET This part replaces 98-9435. Price: $1.48 |
| 5 |
19211621 |
Washer 21/32 X 1 X 21 Ga Price: Call Us |
| 6 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 6 |
138-1238 |
KIT-PIPE, OIL This part replaces 98-9461. Price: $212.76 |
| 7 |
125631X |
Grip Handle Price: Call Us |
| 7 |
98-7568 |
BOLT Price: $0.84 |
| 8 |
170770 |
Button Plunger Price: Call Us |
| 8 |
98-9591 |
PIN-BAND Price: $6.96 |
| 9 |
98-9601 |
CLAMP-PIPE Price: $6.61 |
| 10 |
98-9714 |
CLAMP-HOSE Price: $2.66 |
| 11 |
139865 |
Link Lift LH Fixed Length Price: Call Us |
| 11 |
98-9721 |
PIPE-OIL Price: $14.77 |
| 12 |
139866 |
Link Lift RH Fixed Length Price: Call Us |
| 12 |
98-9723 |
HOLDER ASM Price: $154.38 |
| 13 |
4939M |
Retainer Spring Price: Call Us |
| 13 |
98-9724 |
PIPE-COOLER, OIL Price: $31.43 |
| 14 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 15 |
173288 |
Link Front Price: Call Us |
| 15 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 16 |
73350800 |
Nut Jam Hex 1/2-13 Unc Price: Call Us |
| 16 |
98-9727 |
COLLAR Price: $9.86 |
| 17 |
104-5157 |
OIL COOLER SERVICE KIT This part replaces 98-9728. Price: $1,236.62 |
| 17 |
130171 |
Trunnion Blk Zinc Price: Call Us |
| 18 |
73800800 |
Nut Lock w/wsh 1/2-13unc Price: Call Us |
| 18 |
98-9729 |
O-RING Price: $6.27 |
| 19 |
139868 |
Arm Suspension Rear Price: Call Us |
| 19 |
99-8383 |
OIL PIPE ASM Price: $63.74 |
| 20 |
163552 |
Retainer Spring Price: Call Us |
| 23 |
110807X |
Nut Special Price: Call Us |
| 24 |
19131016 |
Washer 13/32 X 5/8 X 16 Ga Price: Call Us |
| 25 |
2876H |
Spring 2-1/8" Price: Call Us |
| 26 |
169484 |
Retainer Clip Price: Call Us |
| 27 |
126971X |
Rod Adj Lift Zinc 7.49 Wrk Lg Price: Call Us |
| 28 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 29 |
138057 |
Knob Inf 3/8-16 Unc Blk W/sym Price: Call Us |
| 30 |
150233 |
Trunnion Infin Height Price: Call Us |
| 31 |
140302 |
Bearing Pvt Lift Spherical Price: Call Us |
| 32 |
73540600 |
Nut Crownlock 3/8 - 24 Price: Call Us |
| 36 |
155097 |
Pointer Height Indicator Price: Call Us |
| 37 |
123935X |
Plug Hole Blk 1.485/1.515 Dia. Price: Call Us |
| 38 |
17060516 |
Screw Thdrol 5/16-18 x 1 Price: Call Us |
| 40 |
19112410 |
Washer 11/32 x 1-1/2 10 Ga. Price: Call Us |
| 41 |
155098 |
Indicator Height STLT Price: Call Us |
| 49 |
145212 |
Nut Hex Flange Lock Price: Call Us |
