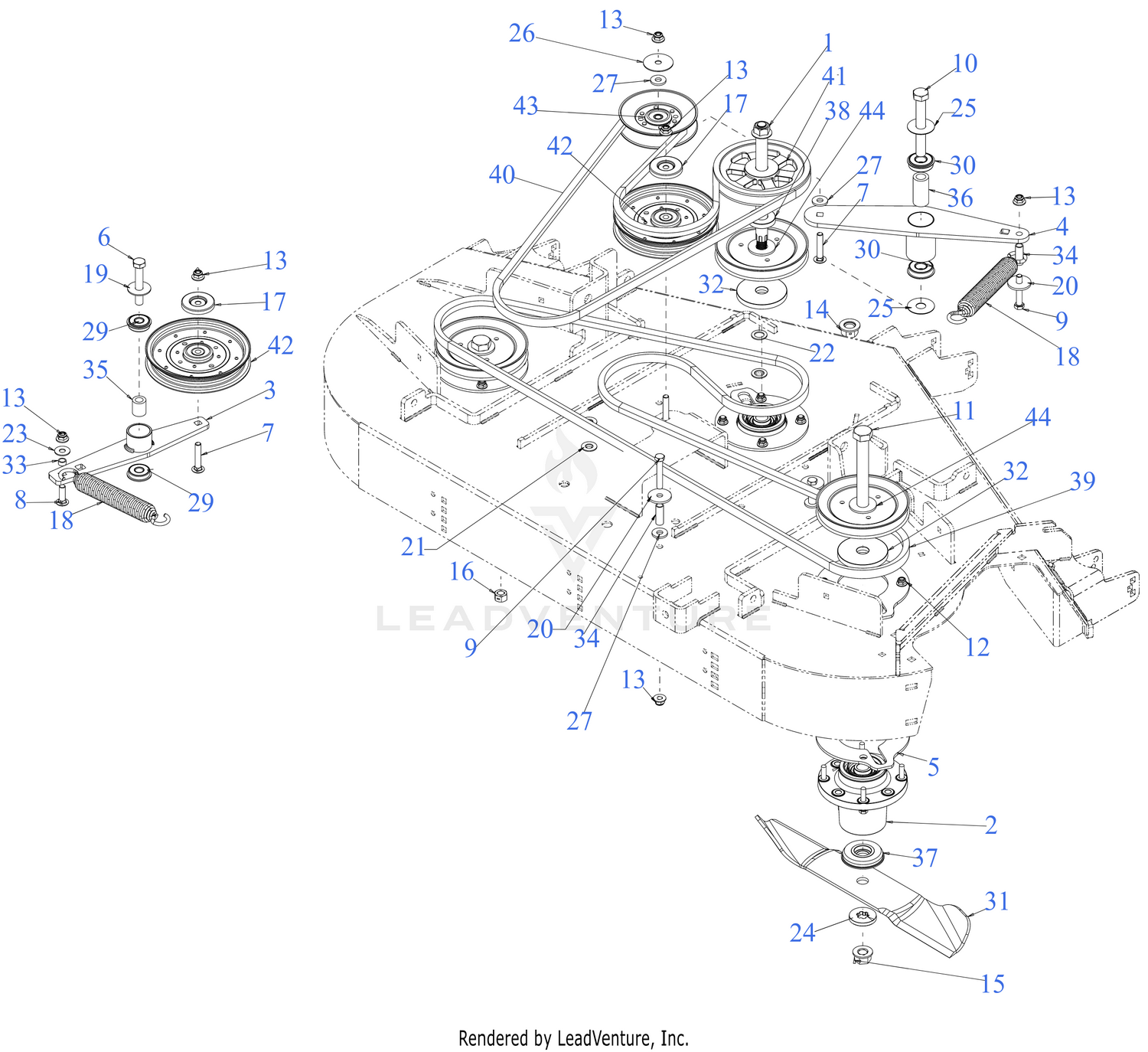

| Ref | Part Number | Description |
|---|
| 1 |
611-05847 |
SPINDLE SHAFT Price: $52.41 |
| 3 |
680E00522A |
IDLER BRACKET Price: $52.92 |
| 4 |
680E00874 |
IDLER BRACKET Price: $83.08 |
| 5 |
703E10057A |
SPINDLE SUPPORT PLATE TOP & BOTTOM Price: $22.65 |
| 6 |
710-0182A |
SCREW-HEX 1/2-13 x 3.00 Price: $6.88 |
| 7 |
710-04157 |
CARRIAGE BOLT 3/8-16 x 2 Price: $7.85 |
| 8 |
710-05408 |
CARRIAGE BOLT 3/8-16 X1.25 GR5 Price: $3.37 |
| 10 |
710-3151A |
SCREW 5/8-18X4.5 GR5 Price: $16.85 |
| 11 |
711-06787 |
SPINDLE SHAFT Price: $29.42 |
| 12 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 13 |
712-04065 |
NUT Price: $3.68 |
| 14 |
712-04327 |
NUT Price: $6.57 |
| 15 |
712-05203 |
FLANGE NUT - 5/8-18 GDE 8 Price: $6.16 |
| 16 |
712-3022 |
HEX NUT CTR LK 1/2-13 Price: $3.61 |
| 17 |
721-04516 |
PULLEY CAP Price: $12.89 |
| 18 |
732-05360C |
SPRING 1.25" DIA x 8.5" LONG This part replaces 732-05360A. Price: $30.00 |
| 19 |
736-0208 |
WASHER .51 x 1.5 x .07 Price: $4.02 |
| 21 |
736-0272 |
FLAT WASHER .510 x .995 Price: $4.37 |
| 22 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 23 |
736-04183 |
WASHER-.395 x 1.0 x .62 Price: $4.64 |
| 25 |
736-05255 |
THRUST WASHER .635x1.750x0.055 Price: $1.70 |
| 26 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 27 |
736-3052 |
FLAT WASHER .406ID X1.0 OD Price: $4.02 |
| 29 |
741-05247 |
ROLLER BEARING .5X1.37X.44 Price: $11.38 |
| 30 |
941-0563 |
BALL BEARING W/RET Price: $33.84 |
| 32 |
748-05174A |
SPINDLE SPACER (UPPER) This part replaces 748-05174. Price: $9.81 |
| 33 |
750-0526 |
SPACER Price: $3.96 |
| 34 |
750-05673 |
SPACER Price: $7.49 |
| 35 |
750-06330 |
SPACER 0.51 x 0.88 x 1.00 Price: $5.78 |
| 36 |
750-06716 |
SPACER 0.63 x 1.00 x 2.01 Price: $5.78 |
| 37 |
750-06749A |
SPINDLE SPACER (LOWER) This part replaces 750-06749. Price: $11.42 |
| 38 |
750-10830 |
SPACER Price: $5.57 |
| 39 |
954-04327 |
BELT-B SECTION 119.45" Price: $111.42 |
| 40 |
754P06074 |
BELT SEC B x 90.30 Price: $87.43 |
| 41 |
756-04485A |
PULLEY 6.96 OD x .750 ID This part replaces 756-04485. Price: $140.03 |
| 42 |
756-04487 |
IDLER PULLEY Price: $58.67 |
| 43 |
756-04522 |
IDLER PULLEY 5.06 OD Price: $34.82 |
