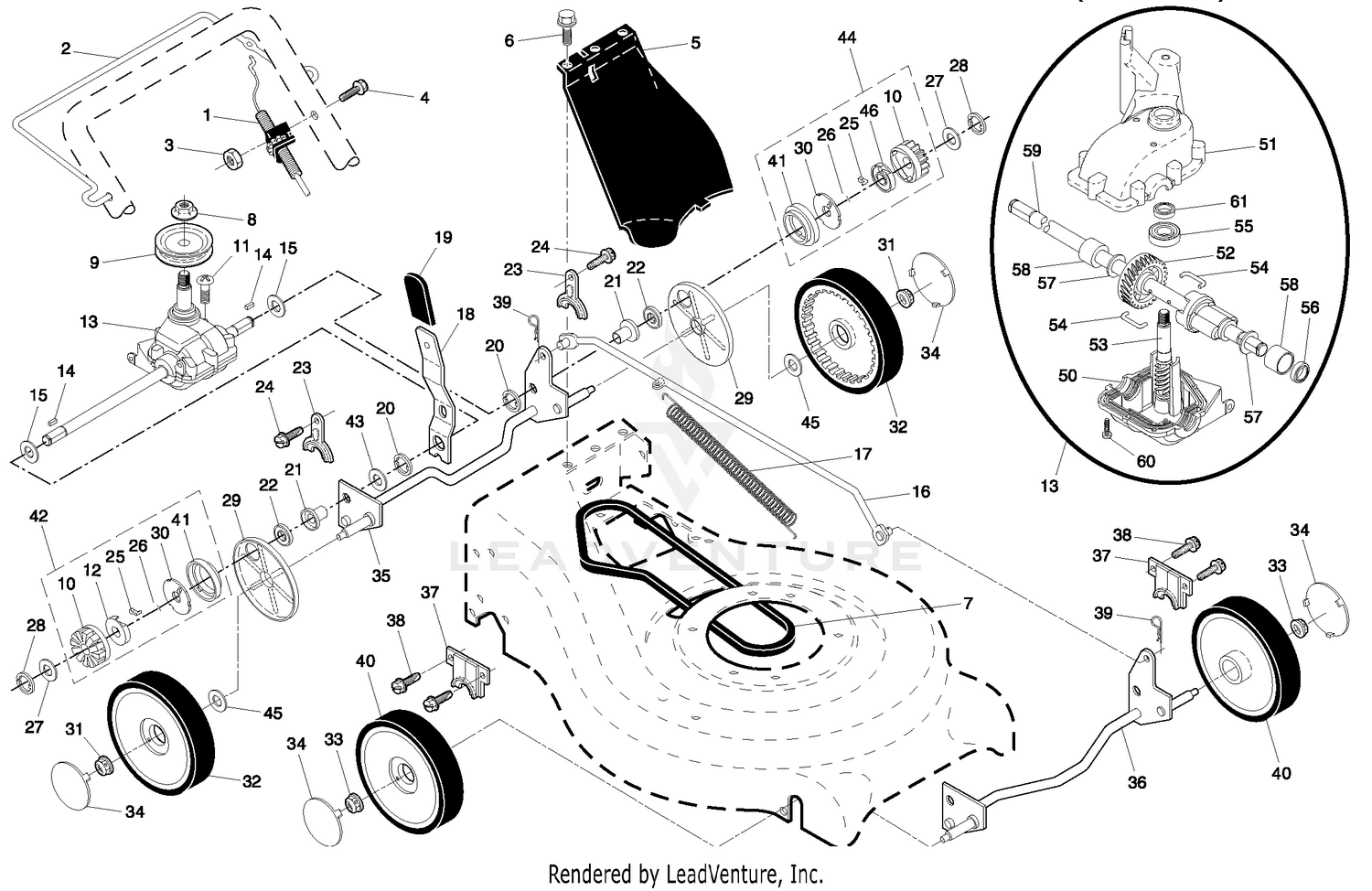

| Ref | Part Number | Description |
|---|
| 1 |
189663X479 |
Handle, Upper Price: Call Us |
| 2 |
161105X479 |
Handle, Lower Price: Call Us |
| 3 |
186053 |
Spring, Rear Door, RH Price: Call Us |
| 4 |
179585 |
Guide, Rope, Side Price: Call Us |
| 5 |
132004 |
Nut, Hex, with Lockwasher Insert 1/4-20 Price: Call Us |
| 6 |
664-26 |
Wire Tie Price: Call Us |
| 7 |
131959 |
Bolt, Handle 5/16-18 x 2-5/8 Price: Call Us |
| 8 |
136376 |
Knob, Handle Price: Call Us |
| 9 |
182810 |
Control Bar Price: Call Us |
| 10 |
188821 |
Pin, Handle Price: Call Us |
| 11 |
73930500 |
Nut, Hex, with Lockwasher Insert 5/16-18 UNC Price: Call Us |
| 12 |
51793 |
Cotter, Hairpin Price: Call Us |
| 13 |
186052 |
Spring, Rear Door, LH Price: Call Us |
| 14 |
750634 |
Screw Price: Call Us |
| 15 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 16 |
185855X428 |
Rear Door Assembly Price: Call Us |
| 17 |
184193 |
Bolt, Rear Door Price: Call Us |
| 18 |
187535 |
Plug, Mulcher Price: Call Us |
| 19 |
181763 |
Housing Assembly Price: Call Us |
| 20 |
187249X479 |
Handle Bracket Asembly, LH Price: Call Us |
| 21 |
187250X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 22 |
150078 |
Screw, Hex Washer Head Price: Call Us |
| 23 |
163183 |
Bolt, Hex Head 5/16-18 x 5/8 Price: Call Us |
| 24 |
73800500 |
Nut, Hex, with Lockwasher Insert 5/16-18 Price: Call Us |
| 25 |
161333 |
Baffle, Side Price: Call Us |
| 26 |
163409 |
Screw #12 x 5/8 Price: Call Us |
| 27 |
188986 |
Skirt, Rear Price: Call Us |
| 28 |
88652 |
Screw, Hinge 1/4-20 x 1.25 Price: Call Us |
| 29 |
183567 |
Cable, Engine Zone Control Price: Call Us |
| 30 |
184590 |
Blade Adapter Price: Call Us |
| 31 |
189028 |
Blade, 21" Price: Call Us |
| 32 |
851074 |
Washer Price: Call Us |
| 33 |
850263 |
Washer, Lock Price: Call Us |
| 34 |
851084 |
Bolt, Hex Head Price: Call Us |
| 35 |
189185 |
Debris Shield Price: Call Us |
| 36 |
182227 |
Bolt Price: Call Us |
| 37 |
150406 |
Bolt, Engine Price: Call Us |
| 39 |
189004 |
Grassbag Price: Call Us |
| 40 |
188817 |
Frame, Grassbag Price: Call Us |
| 41 |
107339X |
Danger Decal Price: Call Us |
| 42 |
54583 |
Screw Price: Call Us |
| 43 |
187723 |
Key, Hi-Pro Price: Call Us |
| 44 |
184941 |
Pulley Price: Call Us |
| 45 |
183058X428 |
Mulcher Door Price: Call Us |
| 46 |
169699X428 |
Discharge Deflector Price: Call Us |
| 47 |
88349 |
Nut, Hex Price: Call Us |
| 48 |
188244 |
Mounting Bracket, Debris Shield Price: Call Us |
| 49 |
182228 |
Nut, Hex Price: Call Us |
| 50 |
57808 |
Screw Price: Call Us |
| 51 |
184543 |
V-Groove Pulley Price: Call Us |
| 52 |
145212 |
Nut, Hex, Flanged Price: Call Us |
| 53 |
155552 |
Locknut, Hex Price: Call Us |
| 54 |
179719X004 |
Idler Arm Price: Call Us |
| 55 |
166043 |
Idler Pulley Price: Call Us |
| 56 |
160829 |
Bolt, Shoulder, Hex Head Price: Call Us |
| 57 |
172787 |
Operator's Manual, English Price: Call Us |
| 57 |
172788 |
Operator's Manual, French Price: Call Us |
| 57 |
179783X004 |
Bracket Assembly Price: Call Us |
