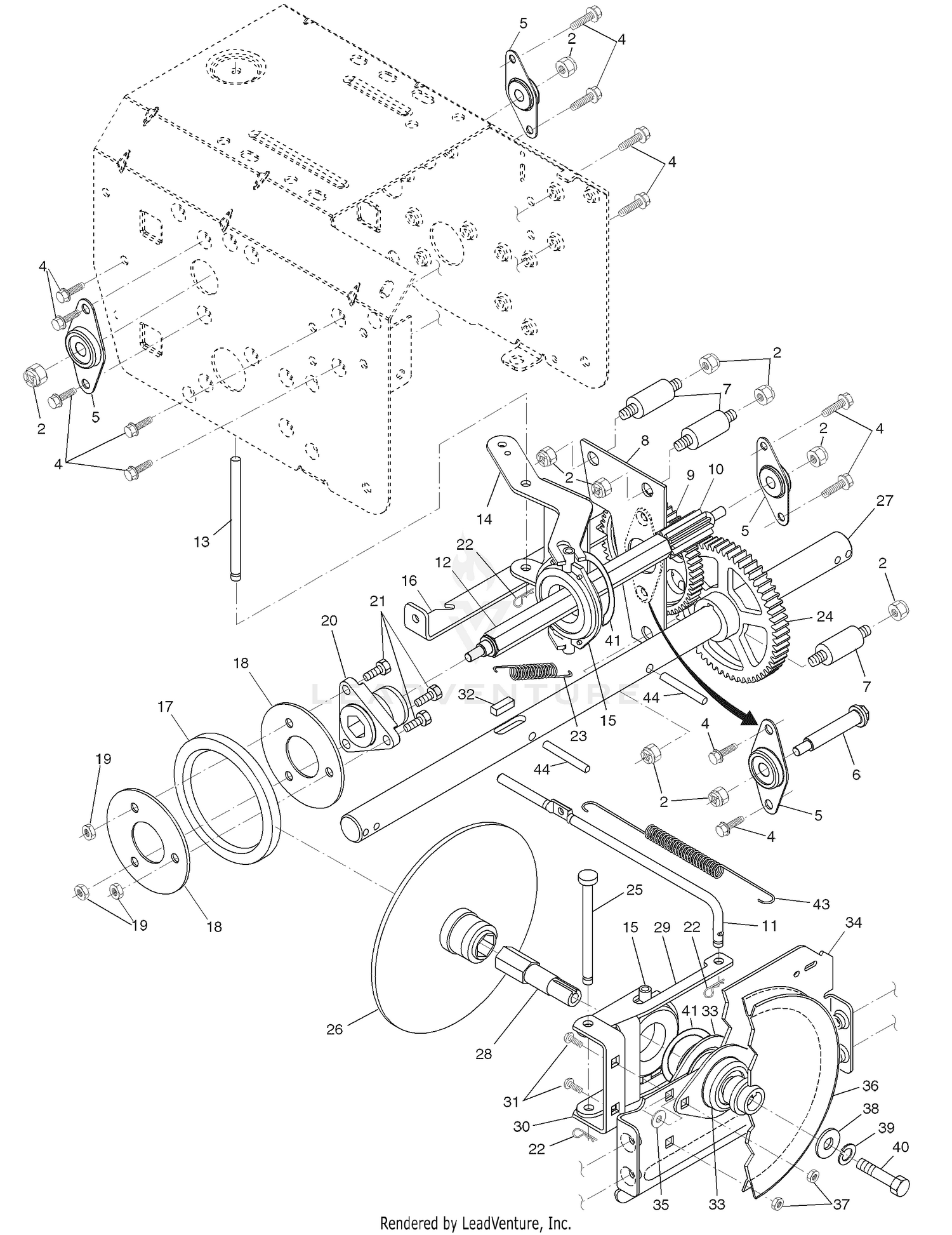

| Ref | Part Number | Description |
|---|
| 1 |
70-1480 |
RELAY Price: $105.19 |
| 2 |
3218-2 |
NUT-JAM Price: $0.25 |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 3 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 4 |
93-2169-01 |
BRACKET-RELAY This part replaces 93-2169. Price: $26.63 |
| 5 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 5 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 6 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 6 |
66-2750 |
DISCONTINUED Price: Call Us |
| 7 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 7 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 8 |
33115-040 |
SCREW-HH Price: $1.22 |
| 8 |
532192616 |
PLATE.AUXILIARY.BLACK This part replaces 532192907. Price: $4.99 |
| 9 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
532180065 |
GEAR, PINION Price: $12.99 |
| 11 |
532187714 |
ROD.CLUTCH.YELLOW.ZINC Price: $9.99 |
| 11 |
66-8800 |
RELAY Price: $87.56 |
| 12 |
33113-016 |
SCREW-HH Price: $0.34 |
| 12 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 13 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 13 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 14 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 15 |
33113-030 |
SCREW-HH Price: $0.54 |
| 15 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 16 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532187857. Price: $5.99 |
| 16 |
94-1325 |
TIE-MOUNT, PUSH Price: $3.20 |
| 17 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 17 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 18 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 18 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99 |
| 19 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 19 |
93-2123-03 |
DISCONTINUED This part replaces 93-2123. Price: Call Us |
| 20 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 21 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 21 |
93-2343 |
DISCONTINUED Price: Call Us |
| 22 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 22 |
93-2344 |
DISCONTINUED Price: Call Us |
| 23 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 23 |
93-2340 |
WIRE HARNESS Price: $1,039.80 |
| 24 |
3290-415 |
RIVET Price: $0.28 |
| 25 |
532178695 |
PIN, PIVOT LEVER Price: $4.99 |
| 26 |
532197763 |
DRIVE PLATE WELDMENT Price: $54.99 |
| 26 |
92-5753 |
CLAMP-HOSE Price: $2.10 |
| 27 |
532179352 |
SHAFT.AXLE.16".SNOW Price: $49.99 |
| 27 |
93-2036 |
CLAMP - AIR HOSE Price: $8.96 |
| 28 |
532197764 |
SHAFT.HEX.SHORT Price: $11.99 |
| 28 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 29 |
532184077 |
LEVER.SHIFTER.PLATE.BLACK Price: $9.99 |
| 29 |
93-2270 |
HYD HOSE ASM Price: $91.88 |
| 30 |
117-9471 |
KIT-SERVICE,GR3250-D STEERING This part replaces 93-2269. Price: $105.67 |
| 30 |
532175349 |
BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99 |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 31 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 32 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 32 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 33 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 33 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 34 |
532184075 |
PLATE.DRIVE.MOUNTING.BLACK Price: $14.99 |
| 34 |
93-2035 |
HOSE - AIR CLEANER Price: $81.72 |
| 35 |
532182504 |
SPACER, BEARING Price: $5.99 |
| 35 |
93-2256 |
HYD HOSE ASM Price: $52.48 |
| 36 |
532191080 |
PULLEY.TRACTION.7.75 Price: $49.99 |
| 36 |
93-2255 |
HYD HOSE ASM Price: $52.69 |
| 37 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 38 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 38 |
94-4519 |
TUBE-CONVOLUTE Price: $2.24 |
| 39 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 39 |
92-3188 |
DIODE-BOARD, CIRCUIT Price: $53.82 |
| 40 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 41 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 43 |
532179095 |
SPRING.RETURN Price: $3.99 |
