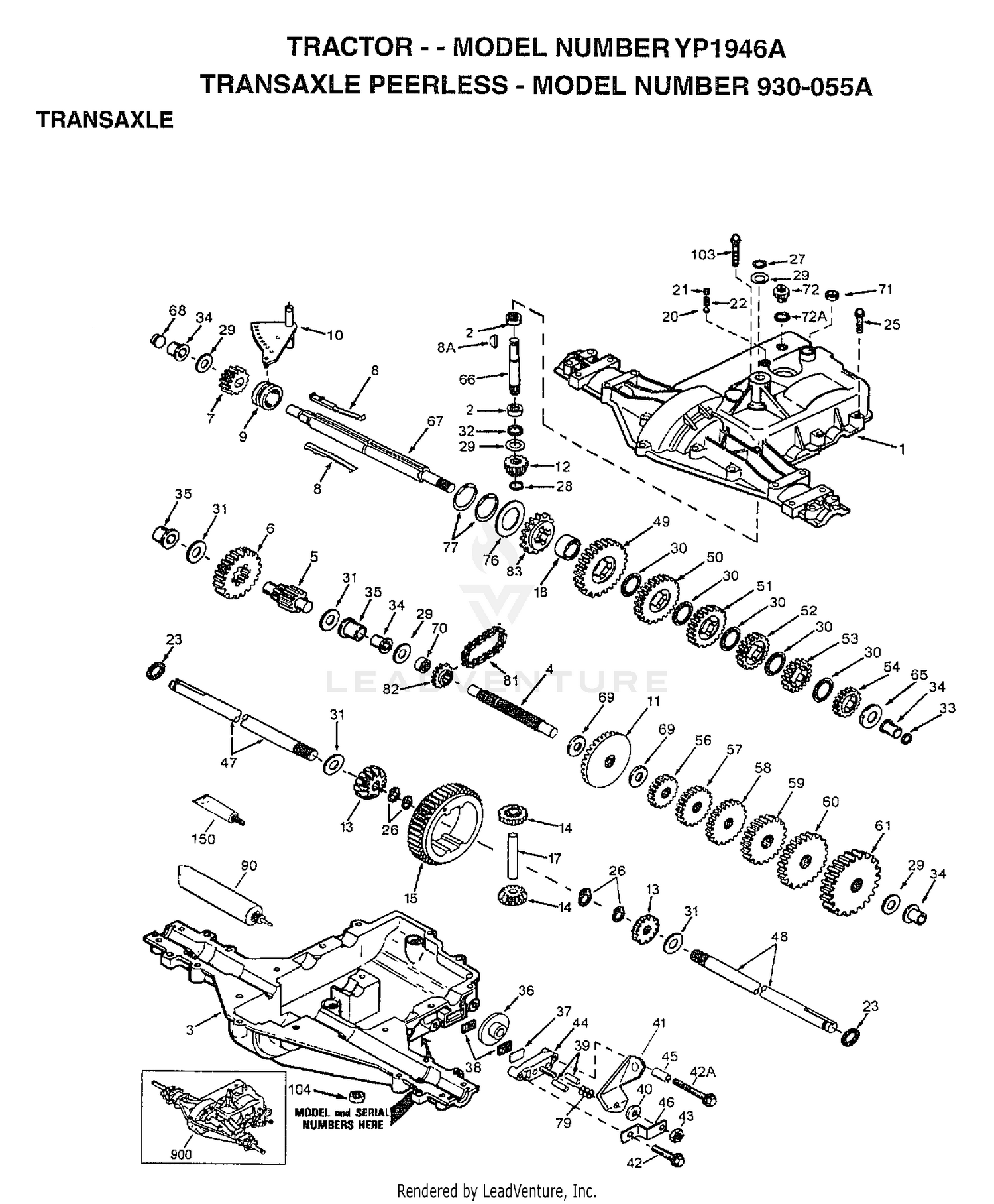

| Ref | Part Number | Description |
|---|
| 1 |
772108A |
TRANSAXLE COVER Price: Call Us |
| 2 |
780086 |
BEARING, NEEDLE Price: Call Us |
| 2 |
95-0632-03 |
COVER Price: $35.30 |
| 3 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 3 |
770102A |
TRANSAXLE CASE Price: Call Us |
| 4 |
776260 |
SHAFT, COUNTER Price: Call Us |
| 4 |
98-8153 |
HOSE-RETURN Price: $11.88 |
| 5 |
776219B |
OUTPUT SHAFT AND PINION Price: Call Us |
| 5 |
95-0595 |
HOSE-HYD Price: $104.29 |
| 6 |
325-7 |
SCREW-HH Price: $1.53 |
| 6 |
778139 |
GEAR, OUTPUT Price: Call Us |
| 7 |
26-2950 |
WIRE-STANDOFF Price: $10.28 |
| 7 |
778136 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 8 |
792136A |
SHIFT KEY Price: Call Us |
| 8 |
95-0555 |
HOSE-SUCTION Price: $15.39 |
| 8A |
792047 |
KEY, WOODRUFF Price: Call Us |
| 9 |
132-4351 |
PUMP-PISTON, VARIABLE This part replaces 106-9248. Price: $2,967.88 |
| 9 |
784352 |
COLLAR, SHIFTER Price: Call Us |
| 10 |
784355 |
ROD & FORK ASSY, SHIFT Price: Call Us |
| 10 |
87-8170 |
FITTING-90 This part replaces 95-0629. Price: $39.34 |
| 11 |
778229 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 11 |
95-0592 |
HOSE ASM Price: $88.92 |
| 12 |
353-511 |
FITTING-HYD, 90 DEG Price: $31.93 |
| 12 |
778113A |
BEVEL PINION, INPUT Price: Call Us |
| 13 |
103-1802 |
FITTING-ELBOW, 90 DEG This part replaces 353-374. Price: $22.99 |
| 13 |
778221 |
GEAR, BEVEL Price: Call Us |
| 14 |
778068 |
GEAR, BEVEL, PINION Price: Call Us |
| 14 |
95-0591 |
HOSE-HYD Price: $106.46 |
| 15 |
323-6 |
SCREW-HH Price: $0.66 |
| 15 |
778260 |
GEAR, RING Price: Call Us |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 17 |
786139 |
PIN, DRIVE Price: Call Us |
| 18 |
71-4411 |
SPACER Price: $2.42 |
| 18 |
786102 |
SPACER, NEUTRAL Price: Call Us |
| 19 |
322-7 |
SCREW-HH Price: $0.89 |
| 20 |
3241-5 |
SCREW-SET Price: $0.61 |
| 20 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 21 |
110-5236 |
HUB-ENGINE This part replaces 27-1960. Price: $30.97 |
| 21 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 22 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 22 |
792079 |
SPRING Price: Call Us |
| 23 |
788061 |
RING, SEAL Price: Call Us |
| 23 |
80-8650 |
COUPLING-DRIVE Price: $32.04 |
| 24 |
110-9695 |
HUB-PUMP This part replaces 49-9600. Price: $55.09 |
| 25 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 25 |
95-0631-03 |
MOUNT-PUMP Price: $362.09 |
| 26 |
792125 |
RING RETAINER Price: Call Us |
| 27 |
3217-9 |
NUT-HH Price: $0.37 |
| 27 |
792035 |
RING, RETAINER Price: Call Us |
| 28 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 28 |
788040 |
RETAINING RING Price: Call Us |
| 29 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 30 |
354-126 |
FITTING-ELBOW, 45 Price: $43.50 |
| 30 |
780108 |
WASHER THRUST Price: Call Us |
| 31 |
780001 |
WASHER Price: Call Us |
| 33 |
788095 |
SEAL, SQUARE CUT Price: Call Us |
| 34 |
780105A |
BUSHING, FLANGED Price: Call Us |
| 35 |
780118A |
BUSHING, FLANGED Price: Call Us |
| 36 |
790003 |
DISK, BRAKE Price: Call Us |
| 37 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 38 |
799021 |
BRAKE PAD Price: Call Us |
| 39 |
786026 |
PIN DOWEL Price: Call Us |
| 40 |
792076A |
WASHER Price: Call Us |
| 41 |
790079 |
BRAKE LEVER Price: Call Us |
| 42 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 42A |
792085A |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 43 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 44 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 45 |
786066 |
SPACER Price: Call Us |
| 46 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 47 |
774690 |
AXLE Price: Call Us |
| 48 |
774691 |
AXLE Price: Call Us |
| 49 |
778215 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 50 |
778125 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 51 |
778124A |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 52 |
778123A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 53 |
778122A |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 54 |
778273 |
GEAR, SPUR, 19T Price: Call Us |
| 56 |
778230 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 57 |
778151 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 58 |
778126A |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 59 |
778127A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 60 |
778128A |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 61 |
778163 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 65 |
780109 |
WASHER, THRUST Price: Call Us |
| 66 |
776135 |
SHAFT, INPUT Price: Call Us |
| 67 |
776315A |
SHAFT, BRAKE, 4 KEYED Price: Call Us |
| 68 |
786116A |
PLUG Price: Call Us |
| 69 |
780051 |
WASHER THRUST Price: Call Us |
| 70 |
786118 |
SPACER Price: Call Us |
| 71 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 72 |
792165 |
THREADED PLUG 9/16-18 Price: Call Us |
| 76 |
780090 |
WASHER, THRUST Price: Call Us |
| 77 |
788078A |
INVERTED RETAINING RING Price: Call Us |
| 79 |
792144 |
SPRING Price: Call Us |
| 81 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 82 |
786082 |
SPROCKET 9T Price: Call Us |
| 83 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 90 |
788067B |
GREASE BENTONITE, 32 OZ. Price: Call Us |
| 103 |
792166 |
SCREW Price: Call Us |
| 104 |
792167 |
LOCKNUT Price: Call Us |
| 150 |
510334 |
GASKET ELIMINATOR Price: Call Us |
