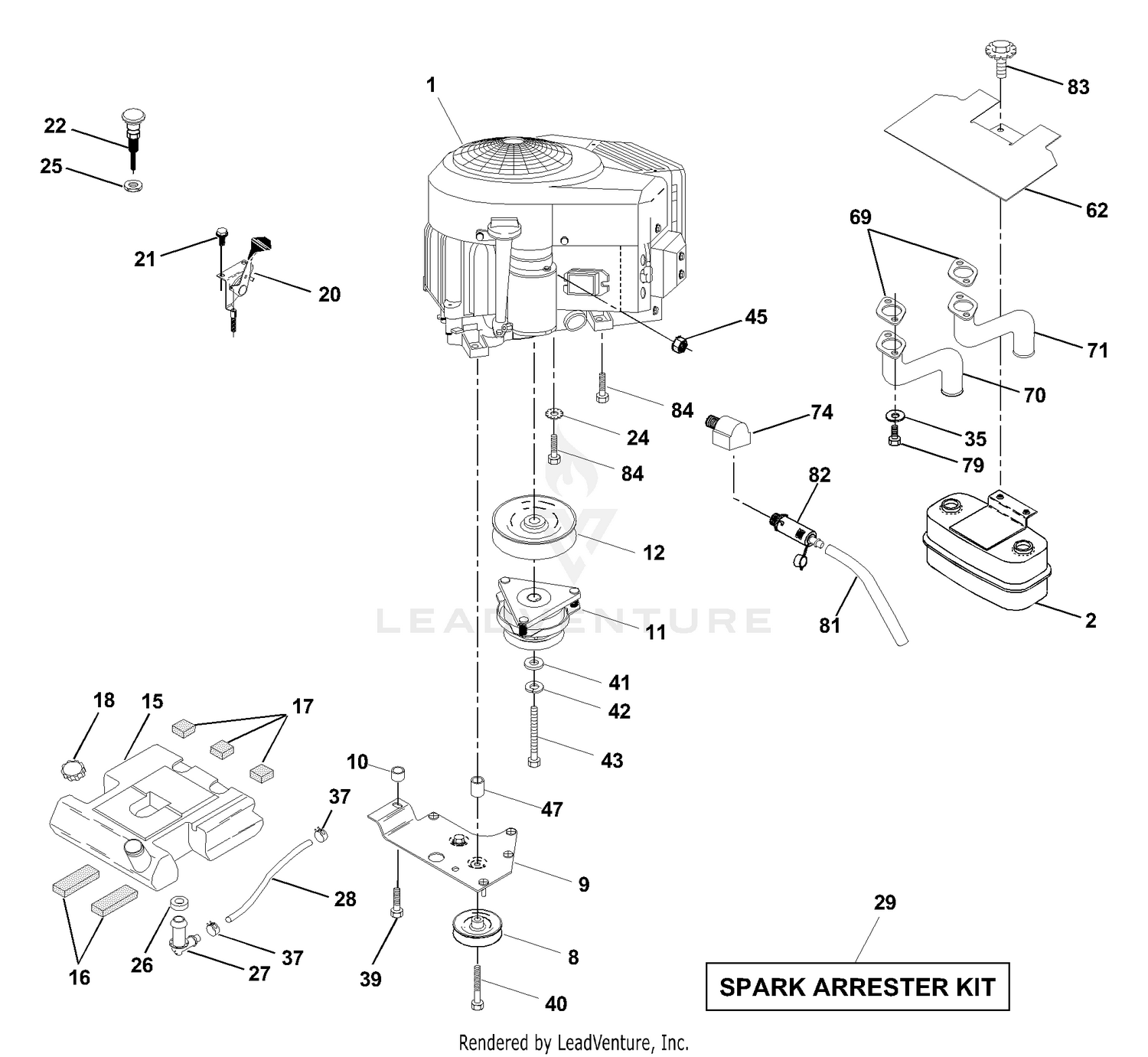

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE Price: $12.99 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 11 |
532174509 |
CLUTCH KIT This part replaces 532170056. Price: $449.99 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 15 |
532151346 |
FUEL TANK 3.5G Price: $84.99 |
| 16 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 17 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 18 |
532161493 |
CAP, FUEL GUAGE Price: $30.99 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532164863. Price: $14.99 |
| 22 |
532175440 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532178639. Price: $27.99 |
| 23 |
808128 |
Flywheel Price: Call Us |
| 24 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 25 |
873920600 |
Nut Keps 3/8-24 Unf Price: $3.99 |
| 26 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532007834. Price: $5.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 35 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 UNC Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
532176069 |
TUBE.EXHAUST.B&S.VGT.LH Price: $51.99 |
| 71 |
532176070 |
TUBE.EXHAUST.B&S.VGT.RH Price: $64.99 |
| 74 |
532162295 |
ELBOW STREET BRASS Price: $29.99 |
| 75 |
805007 |
Washer-Spring Price: Call Us |
| 79 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 332 |
805021 |
Nut-Hex Price: Call Us |
| 333 |
492341 |
Armature-Magneto Price: Call Us |
| 334 |
805407 |
Screw-HH Price: Call Us |
| 353 |
92791 |
Washer-Lock Price: Call Us |
| 354 |
90576 |
Nut Price: Call Us |
| 356 |
493792 |
Wire-Stop Price: Call Us |
| 363 |
19203 |
Puller-Flywheel Price: Call Us |
| 474 |
393295 |
Alternator Price: Call Us |
| 501 |
394890 |
Regulator Price: Call Us |
| 520 |
93722 |
Terminal Price: Call Us |
| 526 |
805448 |
Screw Price: Call Us |
| 726 |
808162 |
Flywheel Ring Gear (Includes Hardware) Price: Call Us |
| 729 |
805641 |
Grommet Price: Call Us |
| 851 |
221798 |
Terminal-Cable Price: Call Us |
