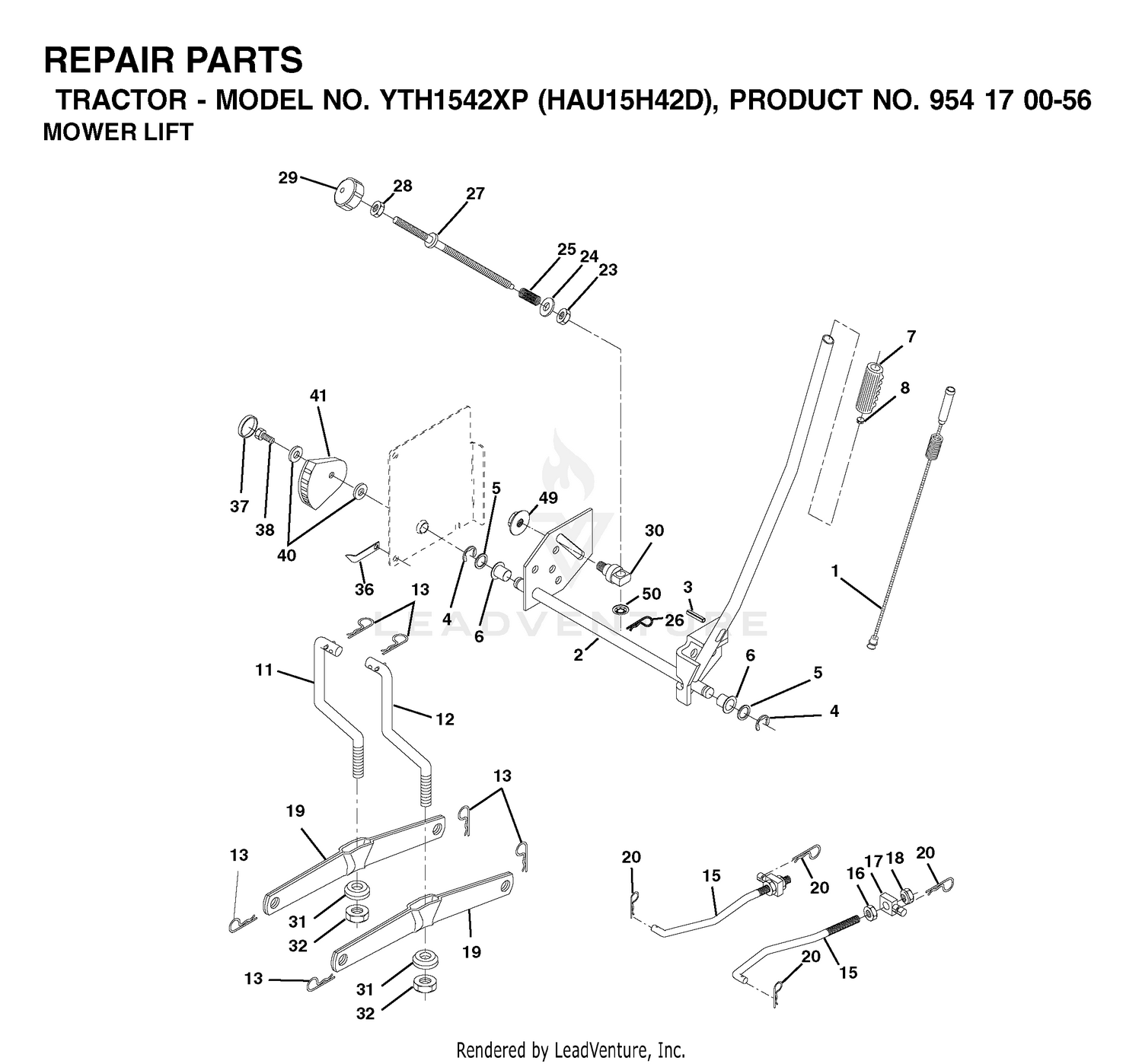

| Ref | Part Number | Description |
|---|
| 1 |
01-182-0816 |
BOLT-HH Price: $2.85 |
| 1 |
532159460 |
WIRE ASM INNER W/ PLUNGER LT Price: $22.99 |
| 2 |
3217-9 |
NUT-HH Price: $0.37 |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 3 |
93-6586 |
BUSHING Price: $26.89 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 4 |
93-6587 |
BEARING Price: $14.99 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 5 |
93-6584 |
KING PIN ASM Price: $68.03 |
| 6 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
121-5087-03 |
FRONT AXLE ASM Price: $1,295.09 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
138-6102 |
CYLINDER ASM This part replaces 93-6510. Price: $1,096.53 |
| 10 |
93-6509 |
END-TIE ROD This part replaces 93-6509-03. Price: $98.38 |
| 11 |
117-5899-03 |
LH SPINDLE HOUSING ASM Price: $973.03 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 12 |
87-1470-03 |
END-TIE ROD, LH Price: $101.78 |
| 13 |
3218-21 |
NUT-JAM Price: $3.19 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 14 |
93-6588-03 |
ROD-STEERING This part replaces 93-6588. Price: $296.55 |
| 15 |
32136-13 |
NUT-SHH Price: $2.85 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
3220-11 |
NUT-JAM Price: $0.81 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 17 |
87-1480-03 |
END-TIE ROD, RH Price: $101.78 |
| 18 |
117-5897-03 |
SPINDLE ASM Price: $461.32 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
119-6003 |
HUB ASM Price: $163.68 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
127-1100 |
WHEEL AND TIRE ASM Price: $422.57 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 22 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 23 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 27 |
532126971 |
ROD ADJ LIFT Price: $5.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532155098 |
IND. HEIGHT STLT Price: $4.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
