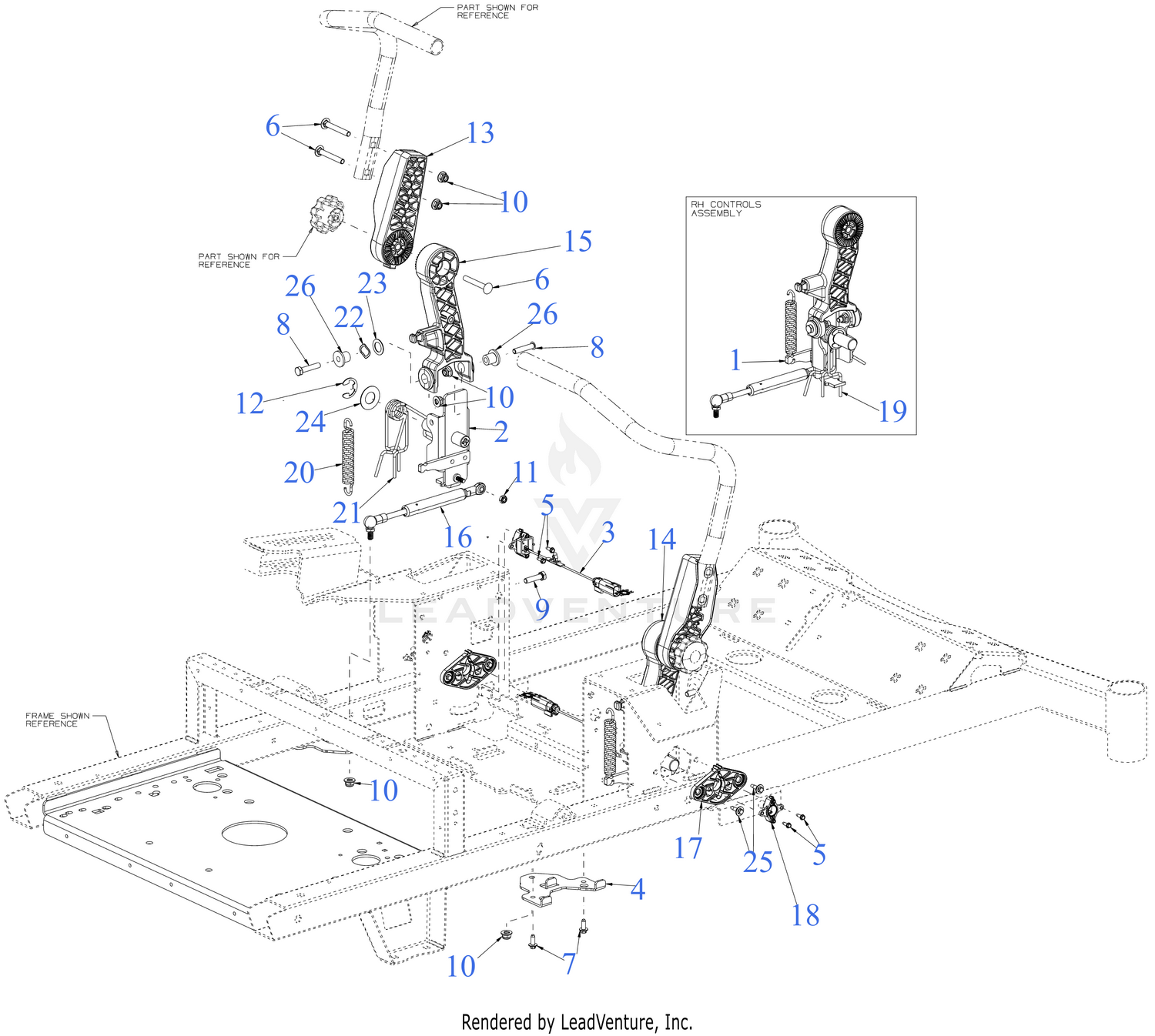

| Ref | Part Number | Description |
|---|
| 1 |
603Z08748 |
CONTROL BRACKET (RH) Price: $46.70 |
| 2 |
603Z08749 |
CONTROL BRACKET (LH) Price: $46.70 |
| 3 |
625P09057 |
THROTTLE SENSOR Price: $190.28 |
| 6 |
710-0572 |
BOLT 5/16-18 x 2.50 GR1 Price: $3.75 |
| 8 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 9 |
710-08694 |
SCREW 5/16-18 x 1.25 GR5 Price: $5.48 |
| 12 |
716-0136 |
RETAINING RING Price: $7.56 |
| 13 |
719-05893B |
UPPER ADJUSTMENT HANDLE Price: $24.49 |
| 14 |
719-05614A |
LAPBAR ACTUATOR (RH) Price: $42.63 |
| 15 |
719-05752A |
LAPBAR ACTUATOR (LH) Price: $42.63 |
| 16 |
727-05853 |
DAMPER- .71 OD X 9.48 LG ERZT Price: $72.35 |
| 17 |
731P27324A |
CONTROL HOUSING Price: $6.25 |
| 19 |
732-08352 |
TORSION SPRING 0.860 ID (RH) Price: $7.96 |
| 20 |
732-08360 |
EXTENSION SPRING .700 ODx4.800 Price: $5.68 |
| 21 |
732-08385 |
TORSION SPRING 0.860 ID (LH) Price: $7.96 |
| 22 |
736-0174 |
WAVE WASHER .660 ID X.88 OD x .010 Price: $5.94 |
| 23 |
936-0336 |
FLAT WASHER Price: $3.90 |
| 24 |
736-0351 |
THRUST WASHER Price: $3.93 |
| 25 |
738-05090 |
SHOULDER SCREW M6-1 .368 X.115 Price: $2.77 |
