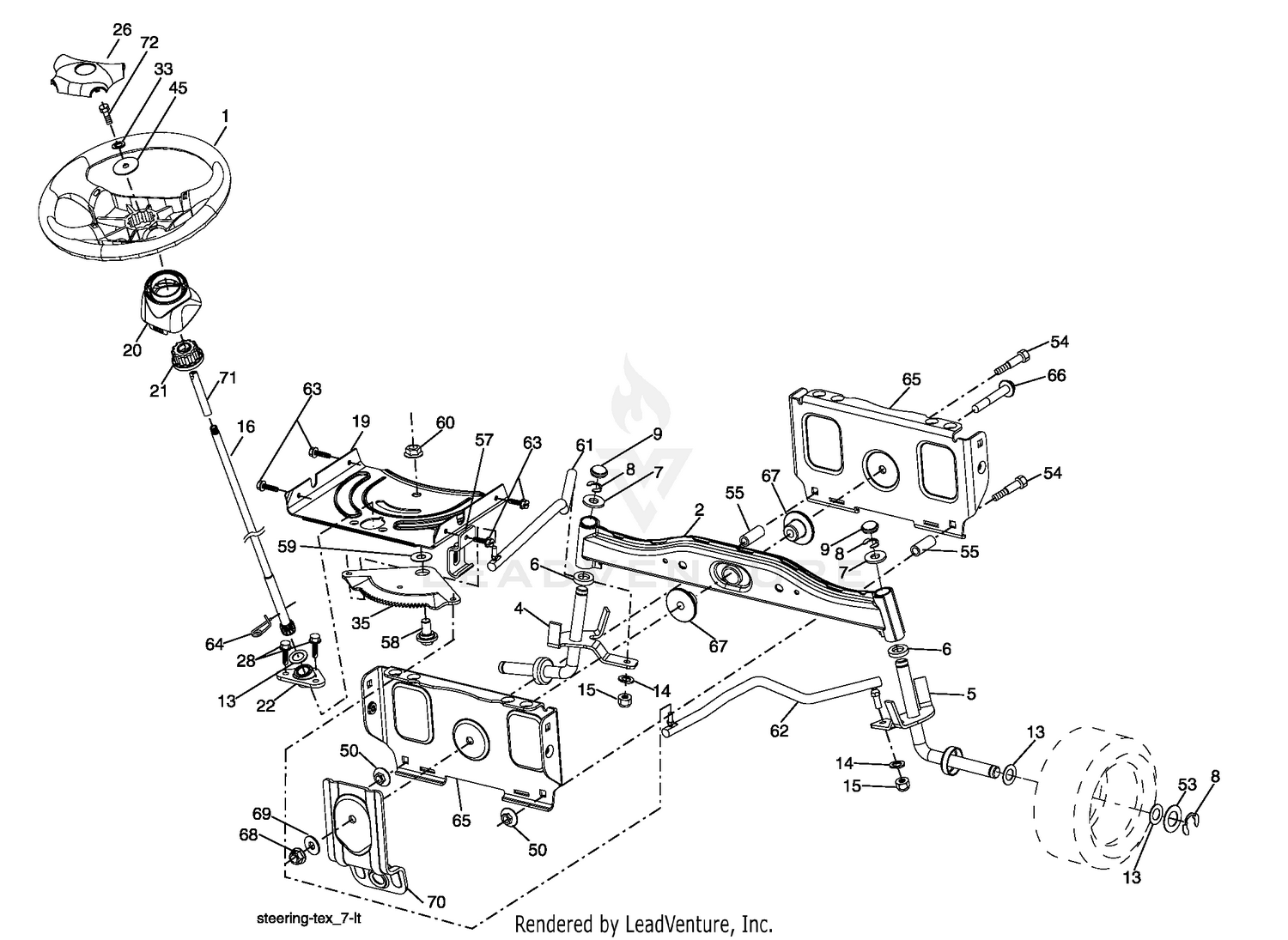

| Ref | Part Number | Description |
|---|
| 1 |
532186093 |
WHEEL.STEERING.LEGND2.GRY This part replaces 532193943. Price: $89.99 |
| 1 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 2 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 3 |
82-6840 |
SPACER Price: $3.31 |
| 4 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
322-7 |
SCREW-HH Price: $0.89 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 13 |
99-5610 |
PIN Price: $40.16 |
| 14 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 15 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 16 |
587738903 |
KIT.SRVC.STEERINGSHAFT.3HISHFT This part replaces 532408220. Price: $44.99 |
| 16 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 19 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT This part replaces 532411139. Price: $7.99 |
| 21 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532194845. Price: $14.99 |
| 22 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 23 |
99-6903-03 |
NO. 3 LIFT ARM ASM Price: $966.43 |
| 24 |
99-6902-03 |
NO. 2 LIFT ARM ASM Price: $867.02 |
| 26 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 54 |
874760636 |
BOLT Price: $4.99 |
| 55 |
532197636 |
SPACER.BRACE.AXLE (2 2) Price: $5.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 71 |
532196075 |
SHAFT EXTENSION STEERING Price: $14.99 |
