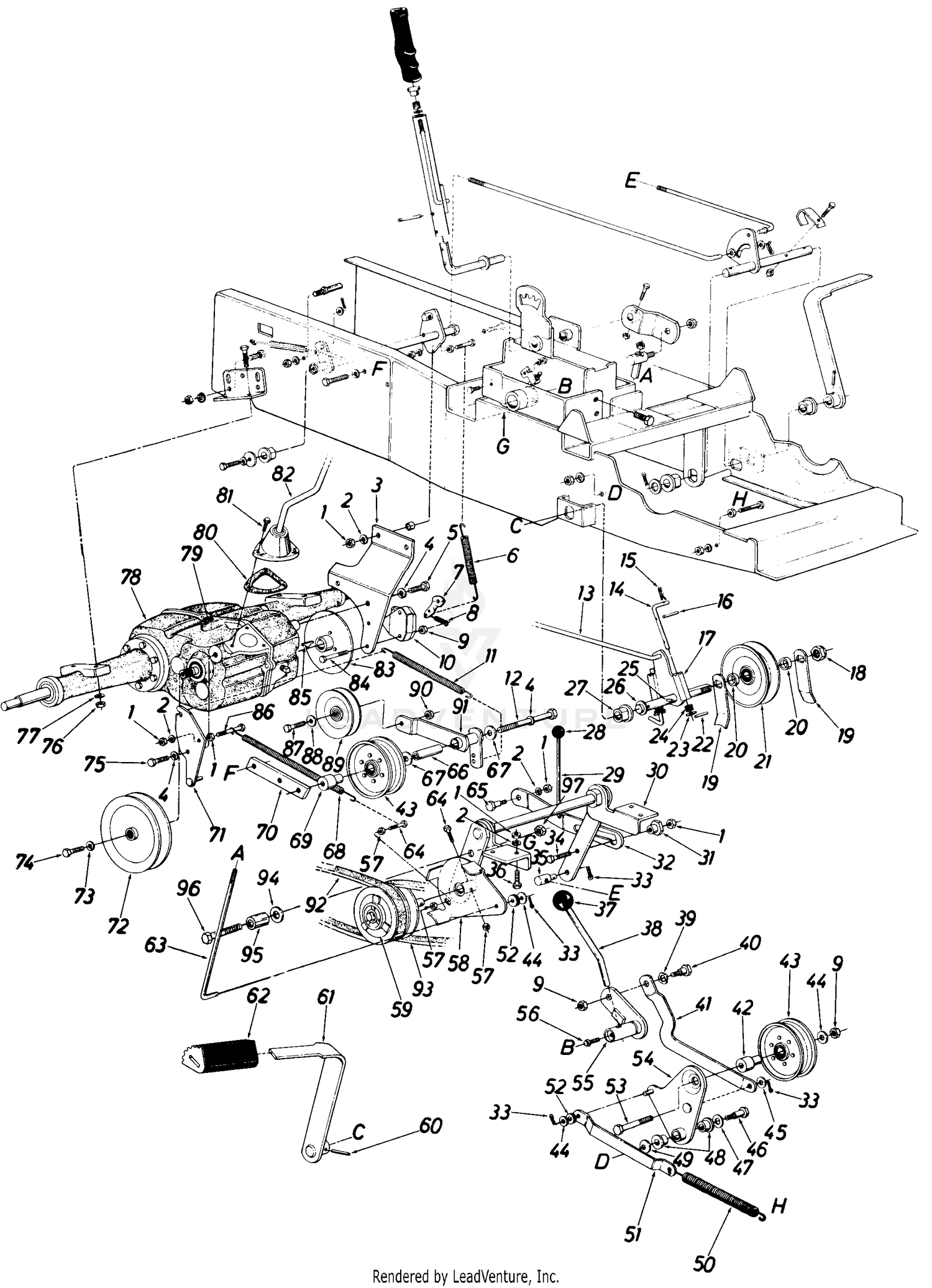

| Ref | Part Number | Description |
|---|
| 1 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 2 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 3 |
13012 |
Transaxle Support Brkt. Price: $13.00 |
| 4 |
736-0169 |
L-Wash. 3/8" Scr.* Price: $3.33 |
| 5 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 6 |
932-0260 |
Extension Spring .50" O.D. x 6.5" Lg. This part replaces 732-0260. Price: $18.25 |
| 7 |
HH-18-02770 |
Cam Lever Price: Call Us |
| 8 |
932-0339 |
SPRING Not Available This part replaces 732-0339. Price: |
| 9 |
712-0181 |
Hex Top L-Nut 3/8-16 Thd. Price: $3.90 |
| 10 |
761-0137 |
BRAKE ASSEMBLY-DISC Not Available Price: |
| 11 |
932-0233 |
TENSION SPRING Not Available This part replaces 732-0233. Price: |
| 12 |
710-0693 |
Hex Scr. 3/8-16 x 4.50" Lg. Price: $12.87 |
| 13 |
13062 |
Brake Rod Ass'y. Price: Call Us |
| 14 |
747-0226 |
Belt Guard Price: Call Us |
| 15 |
714-0104 |
Hairpin Cotter 5/16" Dia. Price: $3.90 |
| 16 |
915-0138 |
Rolled Pin, 1/8 x .63 This part replaces 715-0138. Price: $4.17 |
| 17 |
13082 |
Brake Control Brkt. Ass'y. Price: Call Us |
| 18 |
712-0221 |
HEX NUT Not Available Price: |
| 19 |
13183 |
Belt Guide Price: Call Us |
| 20 |
750-0171 |
SPACER Not Available Price: |
| 21 |
756-0283 |
IDLER PULLEY Not Available Price: |
| 22 |
915-0138 |
Rolled Pin, 1/8 x .63 This part replaces 715-0138. Price: $4.17 |
| 23 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 24 |
732-0334 |
Spring Price: $3.38 |
| 25 |
915-0134 |
SPRING PIN3/16 x 1.50 Not Available This part replaces 715-0134. Price: |
| 26 |
736-0188 |
Fl-Wash. .76 I.D. x .06 Price: $3.75 |
| 27 |
941-0490 |
Flange Brg. w/Flats .75" I.D. This part replaces 741-0199. Price: $11.60 |
| 28 |
720-0166 |
THROTTLE KNOB Not Available Price: |
| 29 |
747-0217 |
Parking Brake Rod Price: Call Us |
| 30 |
13045 |
Mount Ass'y. Price: Call Us |
| 31 |
711-0404 |
NUT-SHLD Not Available Price: |
| 32 |
13108 |
Parking Brake Brkt. Price: $34.51 |
| 33 |
714-0474 |
Cotter Pin 1/8" Dia. x .75" Lg.* Price: $4.08 |
| 34 |
710-0322 |
HEX BOLT 5/16-18 x 1 LG.* Not Available Price: |
| 35 |
911-0198 |
Ferrule This part replaces 711-0198. Price: $12.05 |
| 36 |
910-0198 |
HEX SCREW SEMS 5/16-18 x .75 Not Available This part replaces 710-0198. Price: |
| 37 |
931-0009A |
Shfter Knob This part replaces 720-0175. Price: $13.05 |
| 38 |
747-0211 |
PTO HANDLE Not Available Price: |
| 39 |
736-0232 |
Wave Wash. 1/2" Dia. Price: $4.02 |
| 40 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 41 |
13076 |
Clutch Idler Link Price: Call Us |
| 42 |
711-0598 |
ADAPTER-IDLER Not Available Price: |
| 43 |
711-0306 |
Flat Idler Pulley 4-5/8" Dia. Price: $101.31 |
| 44 |
736-0300 |
Fl-Wash. 3/8" I.D.* Price: $3.93 |
| 45 |
736-0108 |
Fl-Wash. 1/2" I.D. x 3/4" O.D. * Price: $6.07 |
| 46 |
738-0146 |
SHOULDER SCREW .500 DI Not Available Price: |
| 47 |
736-0100 |
FLAT WASHER .531 ID x 1.25 OD x .036 Price: $5.99 |
| 48 |
948-0108 |
Flange Bearing, .503 x .75 This part replaces 748-0108. Price: $7.64 |
| 49 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 50 |
736-0262 |
Extension Spring Price: $3.66 |
| 51 |
13077 |
Spring Strap Price: Call Us |
| 52 |
735-0127 |
Rubber Washer Price: $5.94 |
| 53 |
710-3144 |
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) This part replaces 710-0427. Price: $4.02 |
| 54 |
13074 |
Clutch Idler Plate Price: Call Us |
| 55 |
13053 |
Actuator Lever Ass'y. Price: Call Us |
| 56 |
710-0599 |
Hex Hd. Self-Tap Scr. 1/4-20 x.50" Lg.* Price: $3.86 |
| 57 |
712-0117 |
HEX NUT Not Available Price: |
| 58 |
13041 |
Variable Speed Belt Guard Ass'y. Price: Call Us |
| 59 |
717-0342 |
Variable Speed Pulley Price: Call Us |
| 60 |
715-0114 |
Spring Pin Spiral 1/4" Dia. x 1.50" Lg. Price: $8.68 |
| 61 |
13080 |
FOOT PEDAL BRKT. ASS'Y. R.H. Not Available Price: |
| 63 |
747-0213 |
Control Rod Price: Call Us |
| 64 |
710-0428 |
HEX SCREW 1/4-28 x 1.25 GR5 Not Available Price: |
| 65 |
738-0296 |
Shoulder Scr. Price: $3.93 |
| 66 |
750-0261 |
SPACER Not Available Price: |
| 67 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1.00" O.D. * Price: $3.93 |
| 68 |
732-0276 |
EXTENSION SPRING Not Available Price: |
| 69 |
711-0656 |
IDLER-ADAPTER Not Available Price: |
| 70 |
13116 |
Idler Bracket Price: $4.25 |
| 71 |
13039 |
Spring Brkt. Ass'y. Price: Call Us |
| 72 |
756-0281 |
Transaxle Pulley 7.00" Dia. Price: Call Us |
| 73 |
736-0105 |
Belleville Wash. Price: $3.96 |
| 74 |
710-0180 |
HEX SCREW 3/8-24 x .75 GR5 Not Available Price: |
| 75 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 76 |
712-0798 |
Hex Nut 3/8-16 Thd.* Price: $3.86 |
| 77 |
736-0217 |
L-Wash. 5/8" Scr. Heavy Duty Price: $3.86 |
| 79 |
722-0141 |
Bumper Price: Call Us |
| 80 |
N/A |
Part of Transaxle |
| 81 |
N/A |
Part of Transaxle |
| 82 |
N/A |
Part of Transaxle |
| 83 |
761-0142 |
BRAKE DISC ASSEMBLY Not Available Price: |
| 84 |
710-0859 |
Screws 3/8-16X2.5 This part replaces 710-0937. Price: $5.99 |
| 85 |
714-0137 |
KEY-HI-PRO-3/16 x 3/4 DIA 1.0 Not Available Price: |
| 86 |
710-0395 |
Hex Scr. 5/16-18 x 2.25" Lg.* Price: $4.08 |
| 87 |
710-0344 |
Hex Scr. 3/8-16 x 1.50" Lg.* Price: $5.16 |
| 88 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 89 |
756-0487 |
Idler Pulley This part replaces 756-0293. Price: $45.43 |
| 90 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. * Price: $4.02 |
| 91 |
13060 |
Idler Arm Ass'y. Price: Call Us |
| 92 |
754-0212 |
V-BELT 5/8 x 45" LG. Not Available Price: |
| 93 |
754-0227 |
V-BELT 5/8 Not Available Price: |
| 94 |
736-0105 |
Bell-Wash. 3/8 I.D. Price: $3.96 |
| 95 |
750-0261 |
SPACER Not Available Price: |
| 96 |
710-0859 |
Screws 3/8-16X2.5 This part replaces 710-0937. Price: $5.99 |
