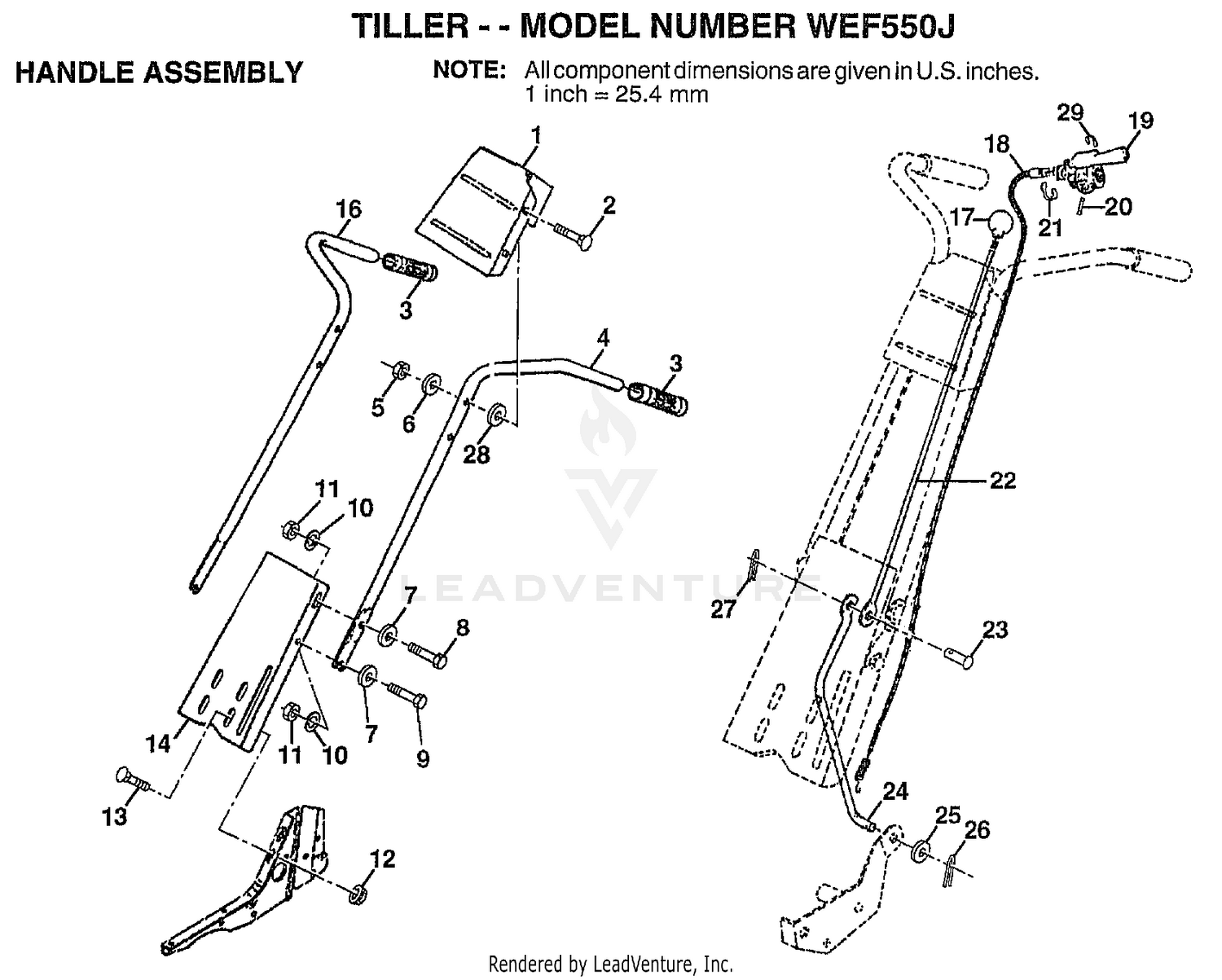

| Ref | Part Number | Description |
|---|
| 1 |
131268X550 |
BRACKET.HDLE.TILL Price: Call Us |
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 2 |
72140512 |
BOLT Price: Call Us |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 3 |
9266R |
SUB= 624A78 Price: Call Us |
| 4 |
153138 |
HANDLE.LH TILLER Price: Call Us |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
73680500 |
SUB= 73690500 Price: Call Us |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
19111116 |
WASHER Price: Call Us |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 7 |
19121414 |
WASHER Price: Call Us |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
74760516 |
SUB= 77394 Price: Call Us |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 9 |
74760512 |
BOLT Price: Call Us |
| 10 |
10040500 |
LOCKWASHER Price: Call Us |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 11 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 12 |
98000129 |
NUT Price: Call Us |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 13 |
72140506 |
BOLT Price: Call Us |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 14 |
674A150550 |
PANEL.HANDLE.PNT. Price: Call Us |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 16 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 17 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 18 |
3066J |
CABLE CLUTCH T Price: Call Us |
| 19 |
151229 |
LEVER CONTRL TINE Price: Call Us |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 21 |
12000027 |
E-RING Price: Call Us |
| 22 |
101248K |
ROD REVERSE TI Price: Call Us |
| 23 |
1778E |
RIVET.RD.HD.DRILL Price: Call Us |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
2613J |
REVERSE ROD TI Price: Call Us |
| 24 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 25 |
19131316 |
WASHER Price: Call Us |
| 25 |
63-7732 |
RH BRAKE CABLE ASM Price: $210.39 |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 26 |
76020412 |
COTTER PIN Price: Call Us |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 27 |
76020308 |
SUB= 3145 Price: Call Us |
| 28 |
19131312 |
WASHER Price: Call Us |
| 28 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 29 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 31 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 32 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 35 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 36 |
75-2170-03 |
TUBE-CONTROL, PUMP Price: $103.73 |
| 37 |
3220-3 |
NUT-HJ Price: $0.28 |
| 38 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
323-9 |
SCREW-HH Price: $1.29 |
