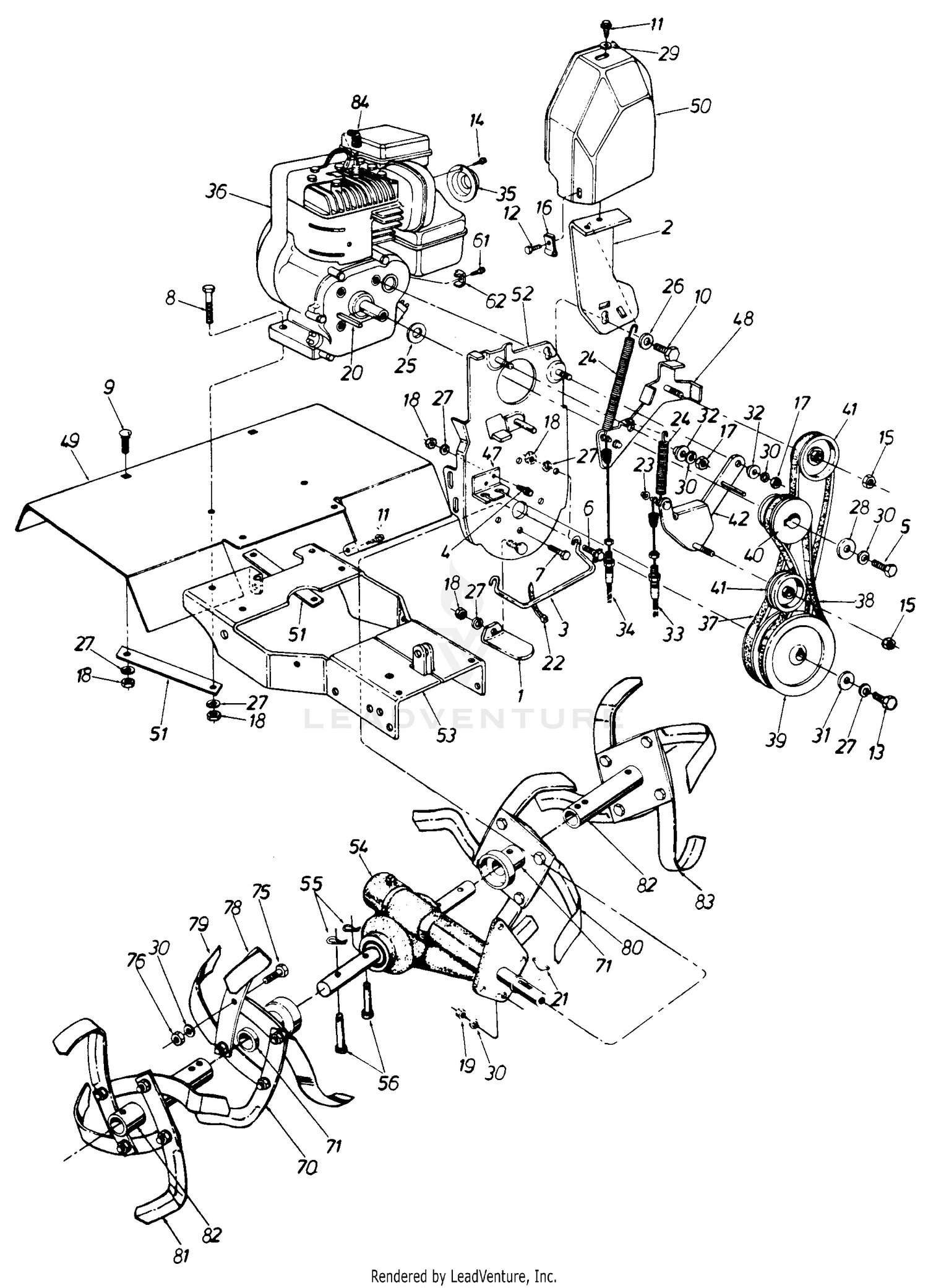

| Ref | Part Number | Description |
|---|
| 1 |
04648 |
Belt Guard Price: Call Us |
| 2 |
04657 |
Bracket Price: Call Us |
| 3 |
04704 |
Belt Retainer Price: Call Us |
| 4 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 5 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 6 |
910-0198 |
HEX SCREW SEMS 5/16-18 x .75 Not Available This part replaces 710-0198. Price: |
| 7 |
710-3005 |
Hex Bolt 3/8-16 x 1.25" Lg. This part replaces 710-0342. Price: $3.61 |
| 8 |
710-3180 |
Hex Bolt 5/16-18 x 1.75" Lg. This part replaces 710-0380. Price: $4.93 |
| 9 |
710-0451 |
Carr. Bolt 5/16-18 x .75" Lg. Price: $3.53 |
| 10 |
710-0157 |
Hex Bolt 5/16-24 x .75" Lg. Price: $3.90 |
| 11 |
710-0599 |
Hex TT-Tap Scr. 1/4-20 x .5" Price: $3.86 |
| 12 |
710-0642 |
Hex TT-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 13 |
710-0643 |
Hex L-Scr. 5/16-18 x 1.0" Lg. Price: $5.99 |
| 14 |
710-0783 |
HEX SCREW WASH HD 10-32X.38 Not Available Price: |
| 15 |
712-0116 |
Hex Ins. L-Nut 3/8-24 Thd. Price: $3.95 |
| 16 |
712-0185 |
SPEED NUT 1/4-20 Not Available Price: |
| 17 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 18 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 19 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 20 |
914-0105 |
KEY, SPINDLE This part replaces 714-0105. Price: $3.22 |
| 22 |
725-0157 |
Cable Tie Price: $3.46 |
| 23 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 24 |
732-0562 |
Extension Spring 3-518" Lg. Price: Call Us |
| 25 |
736-0315 |
Fl-Wash. 3/4" I.D. x 1.5" O.D. Price: $5.94 |
| 26 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 27 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 28 |
736-0133 |
Fl-Wash. .406" x 1.25" x .10" Price: $4.67 |
| 29 |
736-0142 |
Fl-Wash. .281 I.D. x .50 O.D. x .063" Price: $3.95 |
| 30 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 31 |
736-0231 |
Fl-Wash. .344" x 1.125" x .125" Price: $4.02 |
| 32 |
738-0372B |
Shoulder Spacer, .380 ID This part replaces 738-0372. Price: $8.78 |
| 35 |
BS-796956 |
MUFFLER DEFLECTOR Not Available This part replaces 751-0233. Price: |
| 37 |
954-0189 |
V-BELT 1/2 x 44 This part replaces 754-0189. Price: $30.34 |
| 38 |
954-0255 |
V-BELT 1/2 x 37 Not Available This part replaces 754-0255. Price: |
| 39 |
756-0221 |
PULLEY-GEAR BOX ST Not Available Price: |
| 40 |
756-0223 |
ENGINE PULLEY-STEP Not Available Price: |
| 41 |
756-0225 |
FLAT IDLER PULLEY W/FLANGES Not Available Price: |
| 42 |
784-0221 |
IDLER BRACKET ASSEMBLY Not Available Price: |
| 47 |
784-0226 |
BRACKET-CLUTCH CABLE Not Available Price: |
| 48 |
784-0237 |
IDLER BRACKET ASSEMBLY Not Available Price: |
| 49 |
784-G240 |
Tine Shield Price: Call Us |
| 50 |
784-0241 |
Belt Guard Price: Call Us |
| 51 |
784-0246 |
Brkt. Tine Shield Reinforcement Price: Call Us |
| 52 |
784-0250 |
PLATE ASSEMBLY-MTG Not Available Price: |
| 53 |
04697 |
Tiller Frame Ass'y. Price: Call Us |
| 55 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 56 |
711-0679A |
Clevis Pin .375" Dia. x 1.88" This part replaces 1545-029. Price: $12.40 |
| 61 |
710-0899A |
Hex Sems Scr. #10-32 x .62" Lg. This part replaces 710-0899. Price: $5.89 |
| 62 |
751B221535 |
Casing Clamp This part replaces 751-0360. Price: $8.93 |
| 70 |
04675 |
TINE ASSEMBLY- Not Available Price: |
| 71 |
04673 |
Inner Tine Adapter Ass'y. Price: Call Us |
| 75 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 76 |
712-0241 |
Hex Nut 3/8-24 Price: $3.86 |
| 78 |
742-0107 |
TINE (LH) Not Available Price: |
| 79 |
742-0108-0637 |
TINE (RH) Not Available This part replaces 742-0108. Price: |
| 80 |
04676 |
Inner Tine Adapter Ass'y. Comp. R.H. Price: Call Us |
| 81 |
04695 |
Outer Tine Adapter Ass'y. Comp. L.H. Price: Call Us |
| 82 |
06797 |
Outer Tine Adapter Ass'y. Price: Call Us |
| 83 |
04696 |
Outer Tine Adapter Ass'y. Comp. R.H. Price: Call Us |
