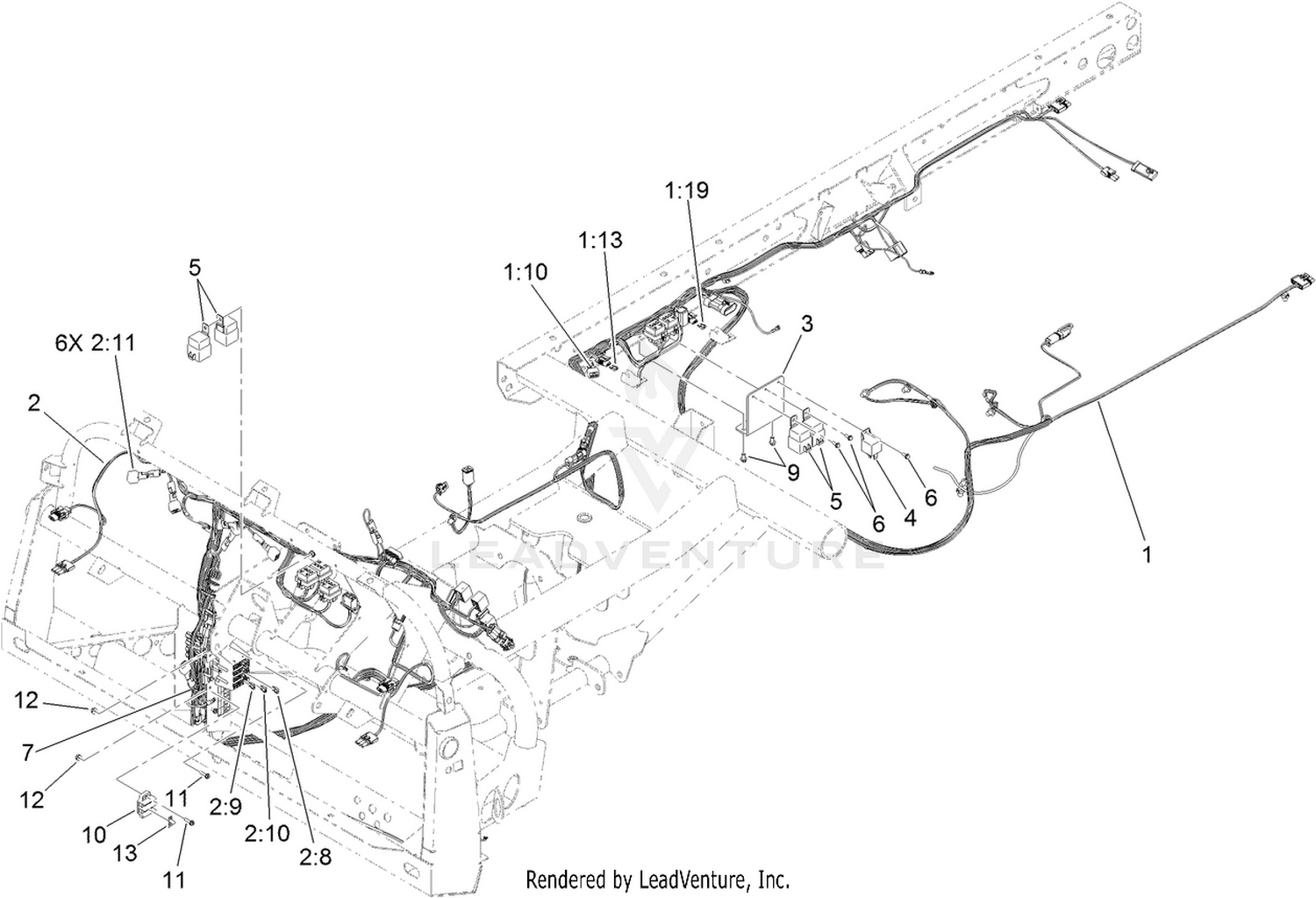

Electrical Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 122-0089 | HARNESS-WIRE, REAR Price: $1,252.23 |
| 2 | 122-0823 | HARNESS-WIRE, FRONT Price: $1,092.59 |
| 3 | 121-9893 | BRACKET-RELAY Price: $15.65 |
| 4 | 99-7435 | RELAY Price: $32.43 |
| 5 | 99-7430 | RELAY-MINI Price: $22.99 |
| 6 | 32144-112 | SCREW-HWH Price: $0.99 |
| 7 | 3290-379 | TIE-CABLE Price: $0.31 |
| 9 | 32144-4 | SCREW-HWH Price: $1.29 |
| 10 | 42862 | BLOCK-TERMINAL, GROUND Price: $19.58 |
| 11 | 32105-13 | SCREW-HWH Price: $1.59 |
| 12 | 3290-148 | NUT-HF Price: $0.25 |
