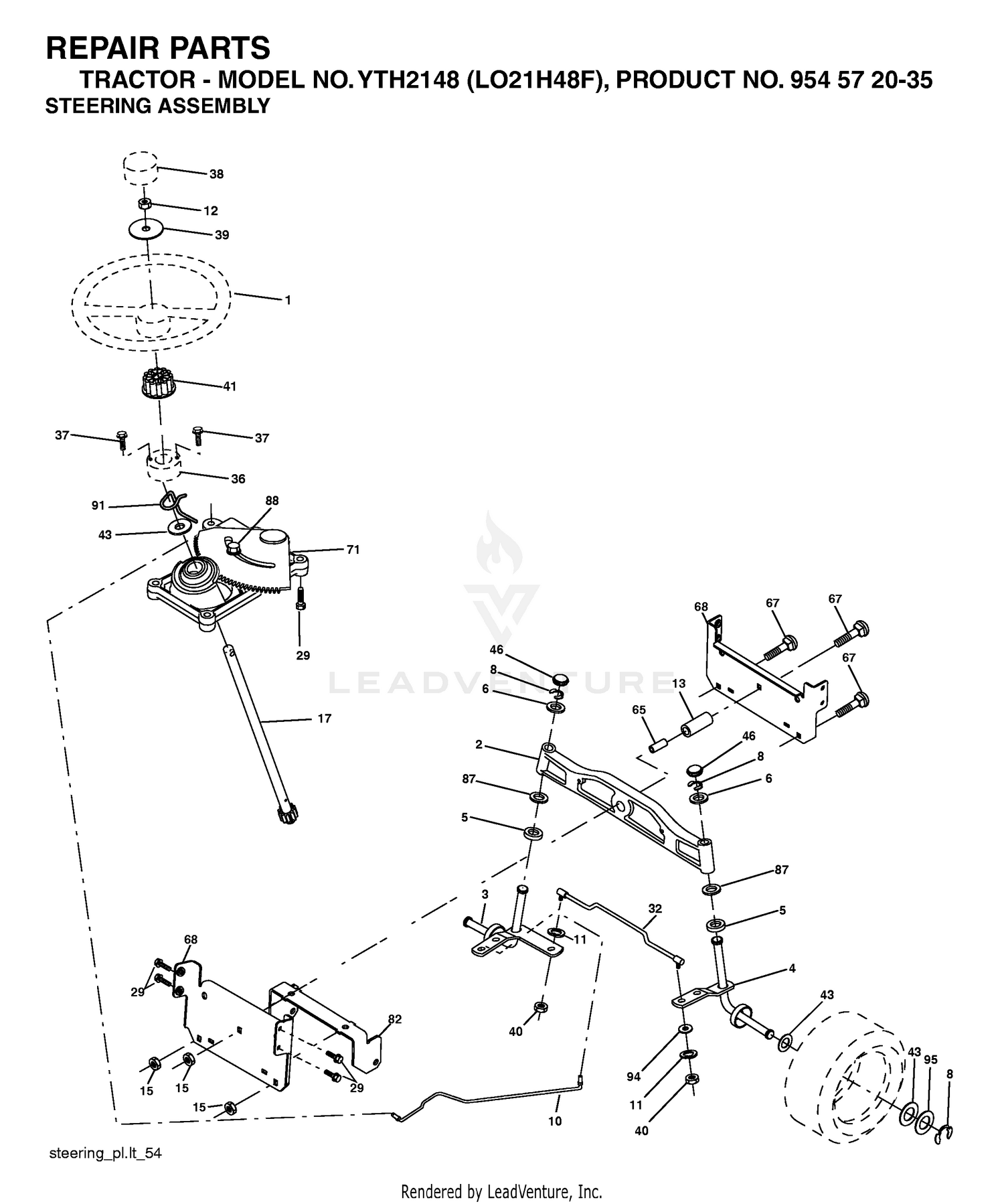

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
108-0686 |
SHIELD-RUBBER, TOP Price: $193.61 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
108-0760 |
COUPLING-JAW, STOCK Price: $136.91 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
105-9455 |
MOTOR Price: $989.33 |
| 8 |
325-7 |
SCREW-HH Price: $1.53 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 10 |
115-8975 |
BEARING-SELF-ALIGNING Price: $143.54 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
108-0668-03 |
PLATE-SKIRT, SIDE Price: $24.80 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
115-9093 |
SHIELD, RUBBER-SIDE Price: $11.92 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
115-9092 |
SHIELD, RUBBER-FRONT Price: $52.00 |
| 15 |
108-0667-03 |
PLATE-SKIRT, FRONT Price: $103.97 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
117-8310 |
BRUSH ASM Price: $1,207.38 |
| 17 |
107-1439-03 |
PLATE-ANGLE Price: $23.40 |
| 17 |
532177883 |
SHAFT ASM STRG Price: $104.99 |
| 18 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
107-1280-01 |
ANGLE-FRONT Price: $136.91 |
| 22 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 23 |
108-0781 |
COVER-COUPLER Price: $46.69 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 26 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 27 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 28 |
108-0844-03 |
PLATE-SHIELD, TOP Price: $53.86 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 32 |
532180580 |
ROD TIE BALL J WSL Price: $109.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 36 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532155105. Price: $6.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 94 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
