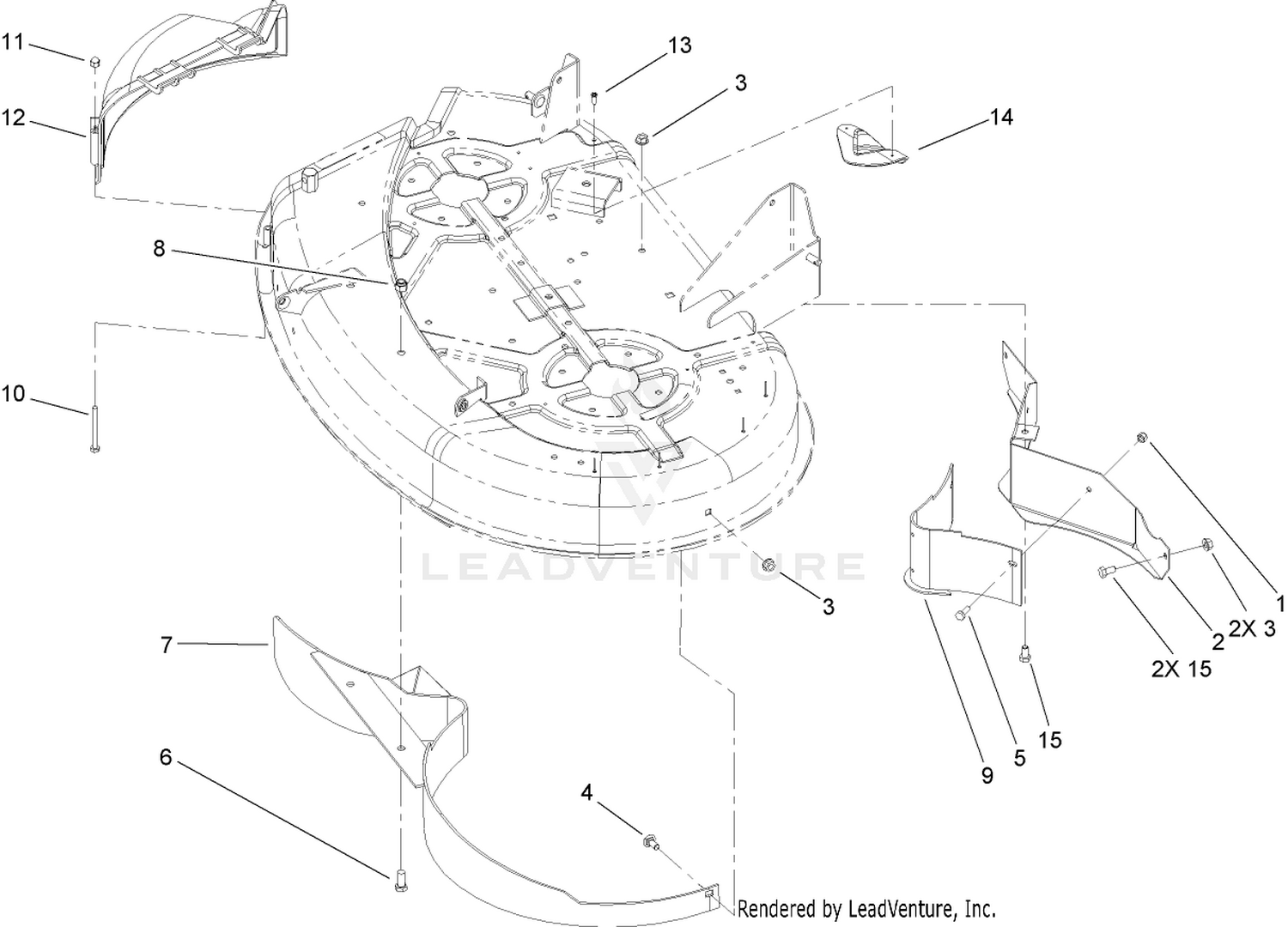

Recycler Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 2 | 107-2484-03 | BAFFLE-REAR Price: $57.01 |
| 3 | 32128-25 | NUT-HF Price: $3.19 |
| 4 | 3230-1 | BOLT-CARR Price: $1.49 |
| 5 | 321-4 | SCREW-HH Price: $0.99 |
| 6 | 323-5 | SCREW-HH Price: $0.41 |
| 7 | 79-1600-03 | BAFFLE ASM Price: $62.12 |
| 8 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 9 | 79-1640-03 | BAFFLE ASM Price: $39.67 |
| 10 | 321-55 | SCREW-HH Price: $16.18 |
| 11 | 32111-7 | NUT-CAP Price: $6.19 |
| 12 | 88-4430 | COVER-RECYCLER Price: $47.93 |
| 13 | 32144-111 | SCREW-PPH Price: $0.66 |
| 14 | 76-2160 | PLATE-KICKER Price: $10.37 |
