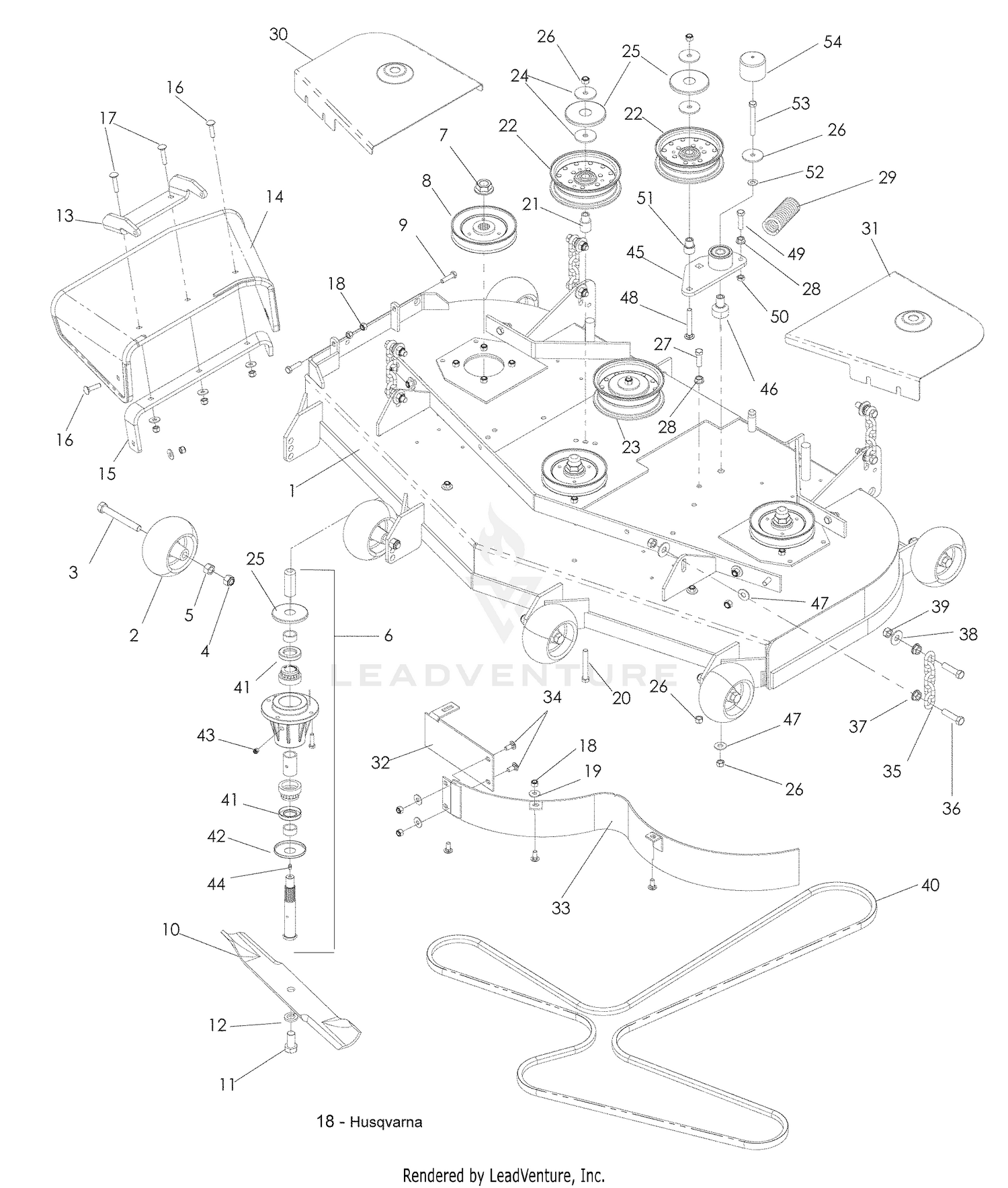

52" Deck

52" Deck

Parts (74)

RefPart NumberDescription
1 510063102 DECK W/DECALS 52" HUS Price: $1,865.99
1 69-2110 COUPLING Price: $207.41
2 532133957 WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99
2 69-2170 ADAPTER SECTION ASM Price: $910.48
3 539108366 HCS 1/2-13 X 4 GR 5 ZD Price: $5.99
3 59-7990 SEAL Price: $14.58
4 59-8470 RETAINER Price: $18.19
4 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
5 539990258 NUT HEX 1/2 Price: $3.99
5 69-2070 PLATE-FLEX Price: $311.23
6 69-2200 O-RING Price: $17.77
6 966956101 KIT HSG ASM 52/61 This part replaces 539131383. Price: $129.99
7 598490501 Nuts This part replaces 539130653. Price: $7.99
7 69-2080 SECTION-CENTER Price: $700.92
8 539112124 PULLEY, 52 Price: $39.99
8 69-2090 GEAR-DRIVE, REAR Price: $897.49
9 539990627 HCS 5/16C X 1 1/4 Price: $3.99
9 59-8600 GEAR Price: $470.56
10 539100341 BLADE OEM 18" Price: $19.99
10 69-2120 O-RING Price: $28.48
11 539103299 HCS 5/8F X 1 1/4 Price: $5.99
11 69-2100 REAR COVER ASM Price: $1,088.03
12 3253-6 WASHER-LOCK This part replaces 59-7590. Price: $0.39
12 539990333 LOCKWASHER 5/8 Price: $2.99
13 539130917 PIVOT BRACKET - CHUTE Price: $129.99
13 69-2150 CAPSCREW Price: $20.18
14 539130901 CHUTE, RUBBER DISCHARGE 52/61" Price: $79.99
14 69-2140 CAPSCREW Price: $13.36
15 592964402 BRACKET.REINF.CHUTE.52/61.EDIP This part replaces 539130920. Price: $22.99
15 69-2200 O-RING This part replaces 69-2210. Price: $17.77
16 596671401 Bolts This part replaces 539100472. Price: $3.99
16 69-2160 PORT SECTION ASM Price: $1,469.23
17 59-8500 GEAR Price: $1,303.76
17 596030801 Bolts This part replaces 539102933. Price: $3.99
18 596583702 Nuts This part replaces 539990717. Price: $2.99
18 69-2060 SHAFT END COVER ASM Price: $1,123.41
19 596134901 GSPH This part replaces 539990692. Price: $2.99
19 69-2130 DISCONTINUED Price: Call Us
20 539102612 SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99
20 59-8590 SEAL Price: $31.34
21 539103295 IDLER BUSHING Price: $12.99
21 59-8580 RING-RETAINING Price: $10.21
22 539103257 IDLER PULLEY Price: $49.99
22 59-8570 SEAL Price: $45.56
23 59-7970 STUD Price: $17.00
24 59-7580 NUT Price: $0.95
24 596917301 Washers This part replaces 539111897. Price: $4.99
25 539108450 TOP DUST CAP Price: $4.99
26 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
27 539976941 HCS 3/8C X 1 1/4 GR5 Price: $3.99
28 596583501 Washers This part replaces 539990613. Price: $2.99
29 539105192 DECK SPRING Price: $13.99
32 539105457 MAIN BAFFLE 52" Price: $219.99
33 539105453 CENTER BAFFLE - 52" Price: $54.99
34 595901601 GSPW Bolts This part replaces 539990316. Price: $2.99
35 594722002 LIFT This part replaces 539102641. Price: $4.99
36 596438501 Bolts This part replaces 539108073. Price: $2.99
37 596577901 Nuts This part replaces 539102582. Price: $2.99
38 596437601 Washers This part replaces 539104864. Price: $2.99
39 595901901 Nuts This part replaces 539119124. Price: $2.99
40 522795901 BELT, DECK This part replaces 539104335. Price: $79.99
41 539108754 SHAFT SEAL Price: $6.99
42 539108449 BOTTOM DUST CAP Price: $3.99
43 539977326 PLUG-VENTED Price: $8.99
44 596623501 Zerks This part replaces 539101474. Price: $2.99
45 539130391 ARM-IDLER W/BRG Price: $37.99
46 539130205 PIVOT, BEARING Price: $3.99
47 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
48 596581801 Bolts This part replaces 539130235. Price: $2.99
49 539107042 HCS 3/8-16 X 1-1/2 Price: $2.99
50 596433501 NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99
51 539130242 BUSHING, IDLER Price: $2.99
52 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99
53 539101341 HCS 3/8C X 3 Price: $4.99
