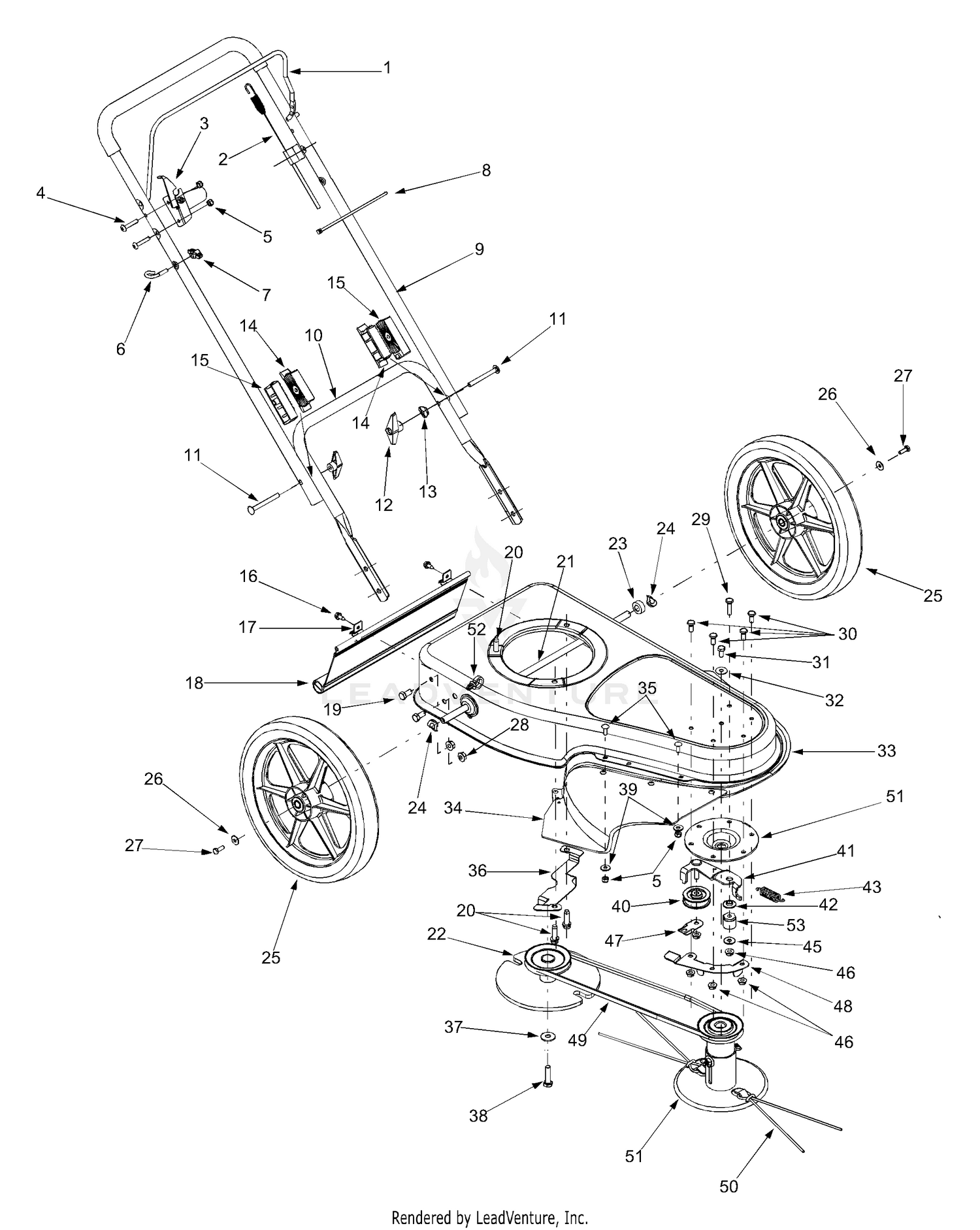

| Ref | Part Number | Description |
|---|
| 1 |
747-0824B-0637 |
Std. Control Handle This part replaces 747-0824. Price: $57.85 |
| 2 |
946-1116A |
Engagement Cable This part replaces 746-1116A. Price: $36.64 |
| 3 |
981-0166 |
BRACKET ASSEMBLY Not Available This part replaces 681-0166. Price: |
| 4 |
710-0578 |
Machine Screw 1/4-20 x 1.50 Price: $3.93 |
| 5 |
712-0324 |
Hex Lock Nut 1/4-20 Price: $3.38 |
| 6 |
710-1205 |
Eye Bolt 1/4-20 Price: $3.53 |
| 7 |
720-0279 |
Wing Nut Price: $3.93 |
| 9 |
749-1255-0637 |
UPPER HANDLE (POWDER BLACK) Not Available This part replaces 749-1255. Price: |
| 10 |
749-1254 |
LOWER HANDLE Not Available Price: |
| 11 |
710-0450 |
SCREW 5/16-18 x 3.0 GR1 Price: $5.59 |
| 12 |
720-0284 |
Wing Nut Price: $4.08 |
| 13 |
736-0451 |
Shoulder Washer.320 ID x.93 OD Price: $3.75 |
| 14 |
731-1267 |
LOWER HANDLE INSULATOR Not Available Price: |
| 15 |
731-1268 |
Upper Handle Connector Price: $14.24 |
| 16 |
710-1652 |
Hex Washer Screw 1/4-20 x.625 Price: $3.86 |
| 17 |
782-9065 |
Trail Shield Clip Price: $3.58 |
| 18 |
731-2329 |
Trail Shield Price: $23.29 |
| 19 |
710-0216 |
Hex Cap Screw 3/8-16 x.750 Price: $3.93 |
| 20 |
710-0502A |
Hex Washer Screw 3/8-16 x 1.25 Price: $5.71 |
| 21 |
681P0159A |
AXLE ASSEMBLY This part replaces 681-0159. Price: $51.11 |
| 22 |
756-1223 |
Flywheel / Pulley Combination Not Available Price: |
| 23 |
750-1240 |
Spacer.51 ID x 1.0 OD Price: $3.15 |
| 24 |
736-0182 |
Spacer Washer.501 ID x 1.0 OD Price: $3.90 |
| 25 |
734-2050 |
WHEEL ASSEMBLY 14X2.125 GRAY ZAG Not Available Price: |
| 26 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 27 |
710-3015 |
Hex Cap Screw 1/4-20 x.75 Price: $3.65 |
| 28 |
712-3005 |
Flange Lock Nut 3/8-16 Price: $5.99 |
| 29 |
710-04010 |
CLINCH STUD 5/16-18 x 2.25 Not Available Price: |
| 30 |
710-1307 |
Screw 5/16-18 x.75 Price: $6.01 |
| 31 |
710-0237 |
Hex Cap Screw 5/16-24 x.625 Price: $3.93 |
| 32 |
736-0425 |
Bell Washer.325 ID x.930 OD Price: $3.95 |
| 33 |
681-0165B-0637 |
DECK ASSEMBLY (POWDER BLACK) Not Available This part replaces 781-1005A. Price: |
| 34 |
631-0096 |
Trimmer Deflector Assembly Price: $92.77 |
| 35 |
710-0703 |
Hex Carriage Screw 1/4-20 x.75 Price: $3.66 |
| 36 |
781-1007 |
BELT KEEPER BRACKET ENGINE Not Available Price: |
| 37 |
736-0452 |
Bell Washer.396 ID x 1.14 OD Price: $4.05 |
| 38 |
710-1044 |
Hex Cap Screw 3/8-24 x 1.50 Price: $3.48 |
| 39 |
736-0173 |
Flat Washer.28 ID x.74 OD Price: $3.76 |
| 40 |
756-1198 |
Idler Pulley Price: $49.31 |
| 41 |
981-1008A |
IDLER BRACKET This part replaces 681-0181A. Price: $42.82 |
| 42 |
750-1275 |
Idler Spacer Price: $5.34 |
| 43 |
732-1166 |
Extension Spring.50 Dia x 1.88 Lg Price: $4.06 |
| 45 |
736-0371 |
Flat Washer Price: $3.94 |
| 46 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 47 |
781-1028 |
Idler Keeper Bracket Price: $6.92 |
| 48 |
781-1020 |
Belt Keeper Bracket Front Price: $20.35 |
| 49 |
954-0625A |
V-Belt This part replaces 754-0625A. Price: $25.03 |
| 50 |
OEM-743-0112 |
Trimmer Line.155 (Incl. 10 pieces) Price: $12.71 |
| 51 |
618-0558 |
SPINDLE ASSEMBLY Not Available Price: |
| 52 |
726-3055 |
Cable Retainer Clip Price: $6.06 |
