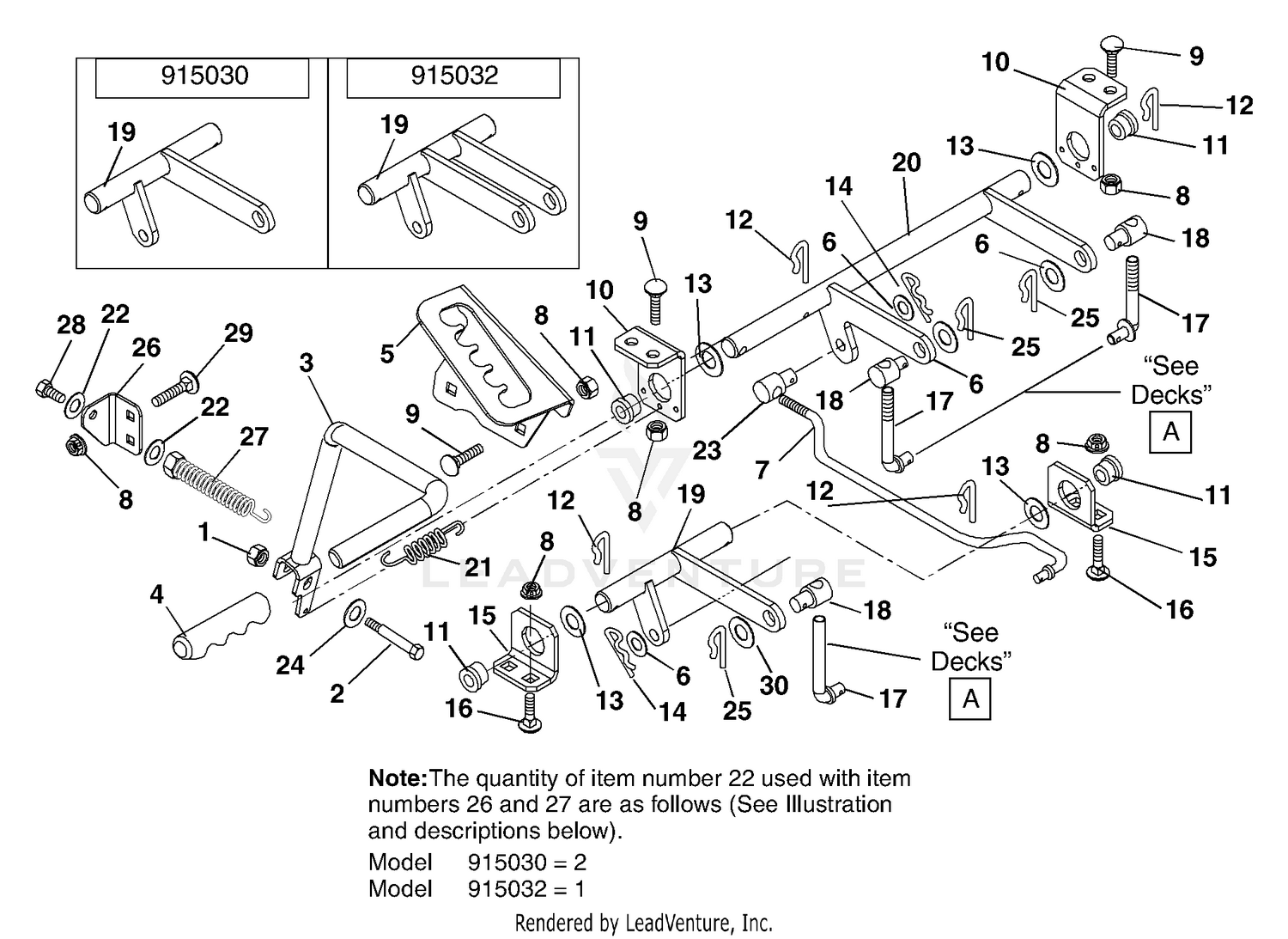

| Ref | Part Number | Description |
|---|
| 1 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06544400. Price: $1.45 |
| 2 |
05980300 |
BOLT,SHLDR .38X1.25 .31-18 PLN Price: $3.45 |
| 3 |
01606800 |
WLDM'T, LIFT HANDLE This part replaces 01606851. Price: $40.95 |
| 4 |
07527500 |
GRIP Price: $5.45 |
| 5 |
01607351 |
DETENT PLATE Price: $34.95 |
| 6 |
06401022 |
WSHR-FL-STL.511X1.44X.125ZC120 This part replaces 06436400. Price: $2.95 |
| 7 |
02776300 |
ROD, DECK LIFT Price: $27.45 |
| 8 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06544500. Price: $1.45 |
| 9 |
06200312 |
BLT, RHSN .38-16X.750 G5 ZCC This part replaces 06227000. Price: $1.45 |
| 10 |
02762800 |
BRACKET-HANGER Price: Call Us |
| 11 |
05503900 |
BSHG-FLG .750X1.000X.625X1.250 Price: $11.45 |
| 12 |
06714500 |
PIN, SPRING CLIP Price: $2.45 |
| 13 |
06401140 |
WSHR-FL-STL 0.812X1.469X0.134 ZCC This part replaces 06439000. Price: $1.45 |
| 14 |
06714900 |
PIN, HAIR, EXT - #16 YWZC Price: $0.45 |
| 15 |
02762700 |
BRACKET-PIVOT Price: Call Us |
| 16 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06226600. Price: $2.45 |
| 20 |
02762600 |
WMT, REAR LIFT Price: Call Us |
| 21 |
08333900 |
SPRING, EXTENSION Price: $34.95 |
| 23 |
02779500 |
PIVOT, ROD Price: $7.95 |
| 24 |
06443800 |
WSHR,FLT .438X1.00X.160 ZCC Price: $3.45 |
| 25 |
06944800 |
CLIP, SPRING Price: $0.95 |
| 26 |
01606551 |
BKT, SPRING ANCHOR Price: $19.95 |
| 27 |
08354300 |
SG-TENS .195X1.147X5.50 Price: $34.95 |
| 28 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45 |
| 29 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06227700. Price: $2.45 |
