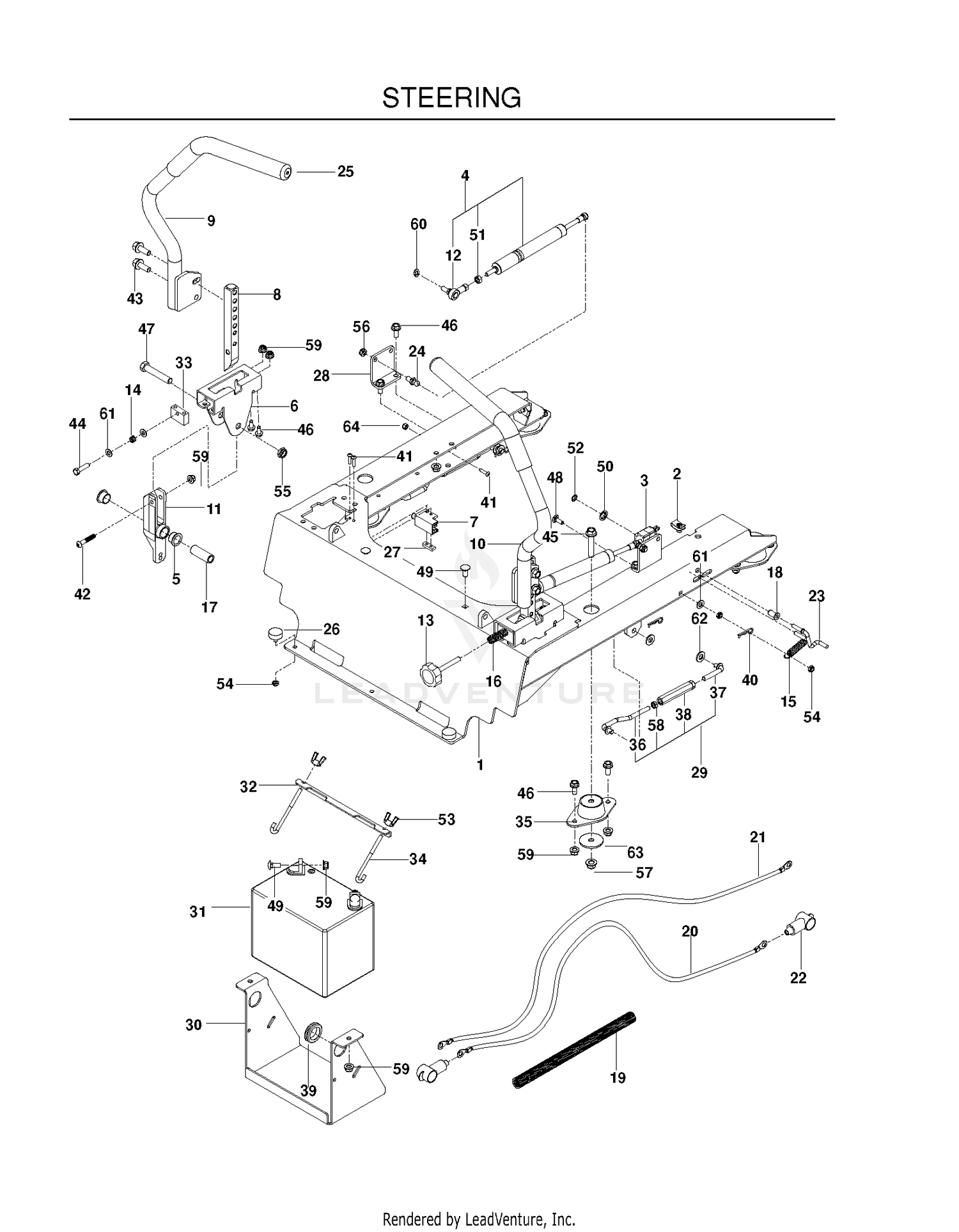

| Ref | Part Number | Description |
|---|
| 1 |
27-4570 |
KNOB-SEAT Price: $25.38 |
| 2 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 2 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 3 |
136-9742 |
COVER-LH Price: $281.20 |
| 3 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 4 |
136-9957-01 |
BRACKET-LATCH, REAR Price: $31.86 |
| 4 |
597084601 |
Dampers This part replaces 516020301. Price: $139.99 |
| 5 |
136-9958-01 |
BRACKET-LATCH, FRONT Price: $30.62 |
| 5 |
539131518 |
BEARING, FLANGE Price: $9.99 |
| 6 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 6 |
586737202 |
BRACKET.CONTROL.NARROWSLOT.BLK This part replaces 577251701. Price: $22.99 |
| 7 |
3256-80 |
WASHER-PLAIN Price: $0.25 |
| 7 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 8 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 8 |
574269402 |
Levers This part replaces 574269401. Price: $59.99 |
| 9 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 10 |
94-2413 |
NUT-U Price: $1.79 |
| 11 |
110-4109 |
HOSE-FUEL Price: $11.24 |
| 11 |
576140302 |
LEVER.CONTROL.SHORT Price: $49.99 |
| 12 |
121-5613 |
PUMP-FUEL, ELECTRIC Price: $285.82 |
| 12 |
539131749 |
ROD END Price: $8.99 |
| 13 |
125-2914 |
SEPARATOR FILTER ASM Price: $95.80 |
| 13 |
596400701 |
Knobs This part replaces 539131799. Price: $8.99 |
| 14 |
136-9728-03 |
BRACKET-SUPPORT, FUEL Price: $38.05 |
| 14 |
539102845 |
SPRING Price: $2.99 |
| 15 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 15 |
540020035 |
SPRING, EXTENSION This part replaces 539020035. Price: $11.99 |
| 16 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 16 |
576850301 |
SPRING COMPRESSION 2.0 Price: $3.99 |
| 17 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 17 |
584927201 |
SPACER.PIVOT.CONTROL This part replaces 577252401. Price: $4.99 |
| 18 |
511594901 |
BUSHING, 1/4 FLANGE Price: $2.99 |
| 19 |
574235301 |
LOOM, SPLIT, CONVOLUTED Price: $2.99 |
| 20 |
522718701 |
CABLE, POSITIVE, 55" Price: $22.99 |
| 21 |
522710701 |
CABLE, NEG, 55" Price: $29.99 |
| 22 |
539102759 |
INSULATOR Price: $3.99 |
| 23 |
511595002 |
Links This part replaces 511595001. Price: $2.99 |
| 24 |
594056301 |
Studs This part replaces 539110607. Price: $2.99 |
| 25 |
539130894 |
GRIP - DRIVE LEVER 12" Price: $6.99 |
| 26 |
575811501 |
BUMPER, 1/4-20 STUD, 1/4 This part replaces 578811501. Price: $5.99 |
| 27 |
539102678 |
TAPPED PLATE Price: $12.99 |
| 28 |
577265801 |
BRACKET.DAMPNER Price: $17.99 |
| 30 |
510029902 |
BRACKET, BATTERY, BLK Price: $54.99 |
| 31 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 32 |
510030001 |
BRACKET, BATTERY MOUNT Price: $44.99 |
| 33 |
577251801 |
BLOCK.TRACKING Price: $9.99 |
| 34 |
510064002 |
Hooks This part replaces 510064001. Price: $2.99 |
| 35 |
510082101 |
MOUNT, ISO Price: $24.99 |
| 38 |
539109149 |
TURNBUCKLE, 3/8 Price: $39.99 |
| 39 |
539105974 |
RUBBER GROMMET Price: $2.99 |
| 40 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 41 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 42 |
576850402 |
SCREW 5/16-18 X 1 3/4 BTN-HD Price: $3.99 |
| 43 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 44 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 45 |
525866201 |
HHFS 3/8-16 X 2.0 GD 5 Price: $3.99 |
| 46 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 47 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 48 |
596238401 |
BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99 |
| 49 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 50 |
539913847 |
NUT 3/8 PALNUT RTNG BLK PHOS Price: $3.99 |
| 51 |
539127046 |
NUT M8 X 1.25 STD HEX Price: $2.99 |
| 52 |
596436201 |
Nuts This part replaces 539102234. Price: $1.99 |
| 53 |
539990997 |
WING NUT 1/4 Price: $2.99 |
| 54 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 55 |
539108010 |
NUT 1/2-13 HEX JM NYL Price: $2.99 |
| 56 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 57 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 58 |
596029901 |
Hardware This part replaces 539108732. Price: $2.99 |
| 59 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 60 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 61 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 62 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 63 |
596917301 |
Washers This part replaces 539111897. Price: $4.99 |
| 64 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
